09 Maintenance and service
Replacing bulbs
09
``
237

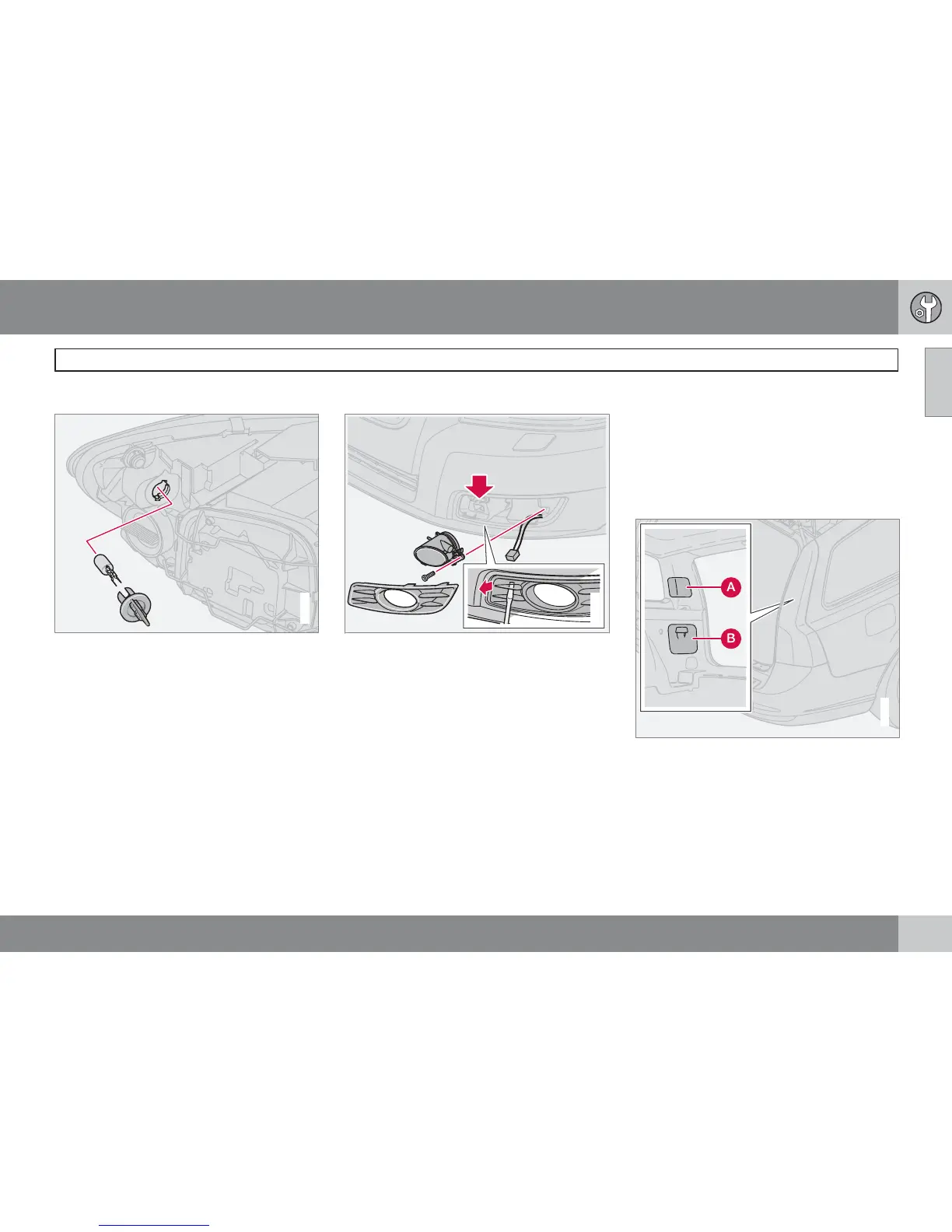

Side marker lamps
G018050
1. Undo the lamp housing, see page 234.
2. Twist the bulb holder anticlockwise and
withdraw it. Replace the bulb.
3. Refit the bulb holder. It can only fit in one
position.
4. Refit the lamp housing, see page 234.
Front fog lamps
G019605
1. Switch off all lights and turn the remote
control key to position 0.
2. Undo the cover by inserting a screwdriver
as illustrated (vertically) and continue to
press vertically in order to undo the clip
inside the cover.
3. Grip the edge of the cover and pull straight
out.
4. Unscrew the lamp housing screw and pull
it out.
5. Turn the bulb anticlockwise and remove it.
6. Fit a new bulb by turning clockwise. (The
profile of the bulb holder corresponds to
the profile of the foot of the bulb.)
7.
Refit the bulb holder. The TOP mark on the
bulb holder must always be upward.
Removing the bulb holder
G019166
All bulbs in the rear lamp cluster are replaced
from inside the cargo area.
1. Switch off all lights and turn the remote
control key to position 0.
2. Remove the cover (A or B) in the left/right-
hand panel to access the bulbs.
