Group 30 Electrical System—VNL, VNM Service Procedures
3647-03-02-02
Cigar Lighter Replacement
(Includes checking component function)

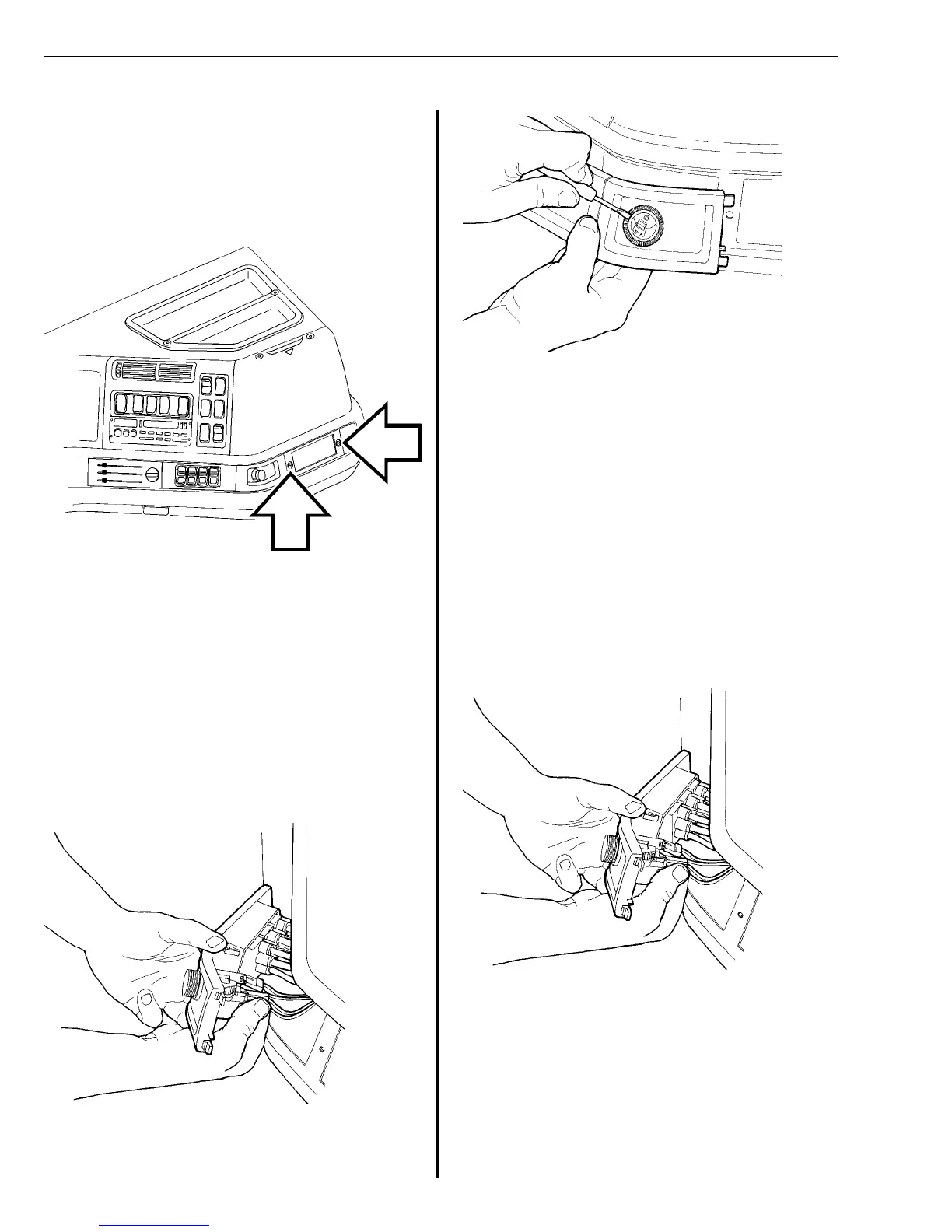

Removal
1
W3000649
Remove the ashtray from the ashtray
housing. Remove the 2 screws from
the ashtray housing, and remove the
housing.
2
Once the ashtray housing is removed,
the air switch panel can be removed
from the dash. Pull the air switch
panel away from the dash and to the
left to clear the tip inserts.
3
W3000656
Disconnect the 2 terminal connectors
at the cigar lighter.
4
W3000696
Push the lighter housing out of the
panel enough to get a small flat tip
screwdriver under the lip of the cigar
lighter. Remove the lighter from the
LED housing, and slide the housing
out of the dash.
Installation
1
Install the LED housing back into the
panel. Make certain it is properly
aligned with the moldings on the hous-
ing. Push the cigar lighter housing into
the LED housing until it bottoms out.
2
W3000656
Connect both lighter connectors. Align
and install the lighter/air switch panel
in the dash.
3
Install the ashtray housing with the 2
mounting screws, and install the ash-
tray in its housing. Torque screws to
0.4 ± 0.1 Nm (3.5 ± 1 in-lb).
0.4 ± 0.1 Nm
(3.5 ± 1 in-lb)
68
