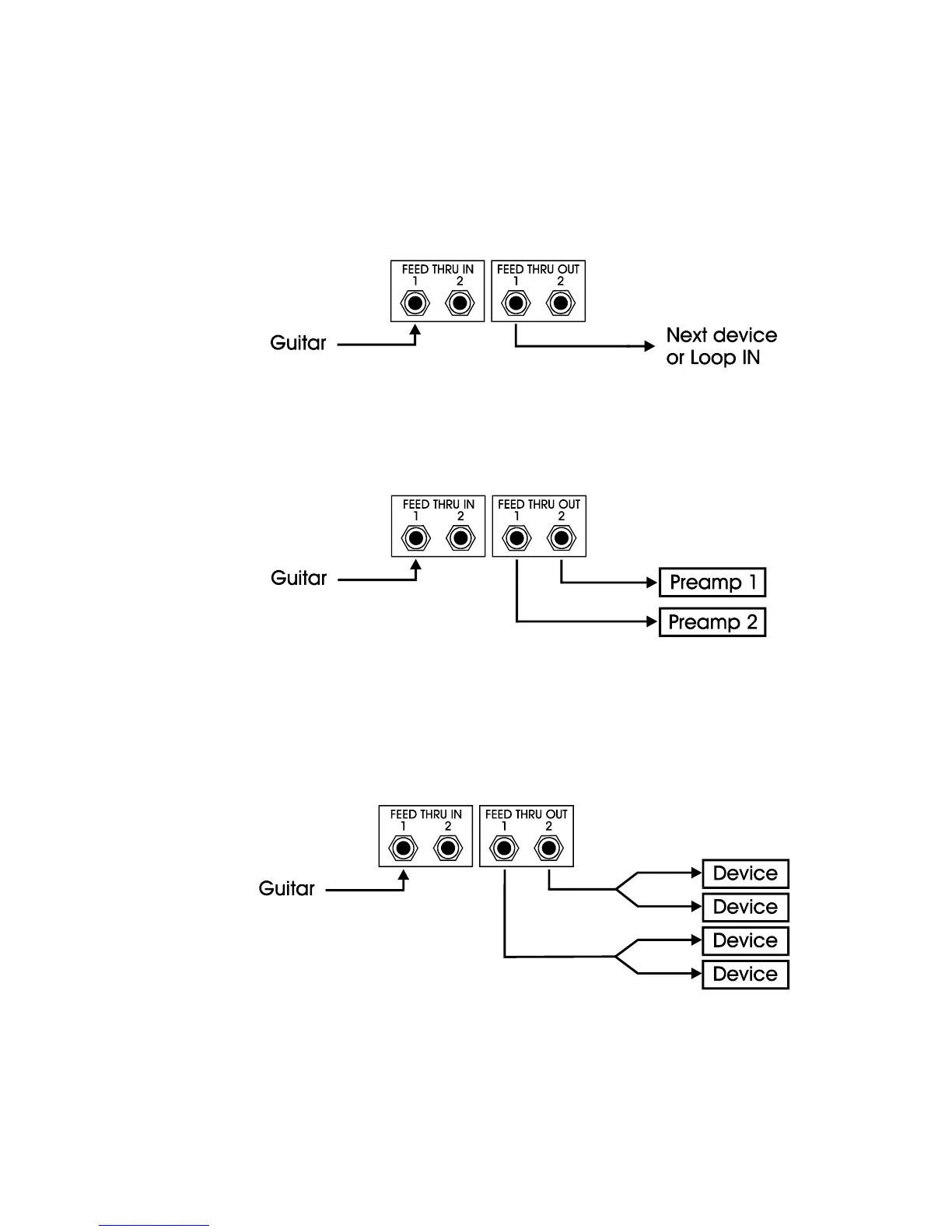

The following diagrams show some common examples of buffered feed thru
connections.
Example 1. Using with one instrument:
The guitar signal passes from GUITAR IN to GUITAR OUT.
Example 2. Splitting from one instrument to two devices:
Since the two feed thru's are normalled together, the guitar signal passes from
GUITAR IN to both GUITAR OUT and FEED THRU.
Example 3. Splitting to more than two devices using Y-cables:
Because GCX feed thru's have low impedance outputs, you can drive multiple
devices from each output. In this example, the guitar signal passes to all four
devices using two Y-cables.
