Vortex CDX2532G User Manual

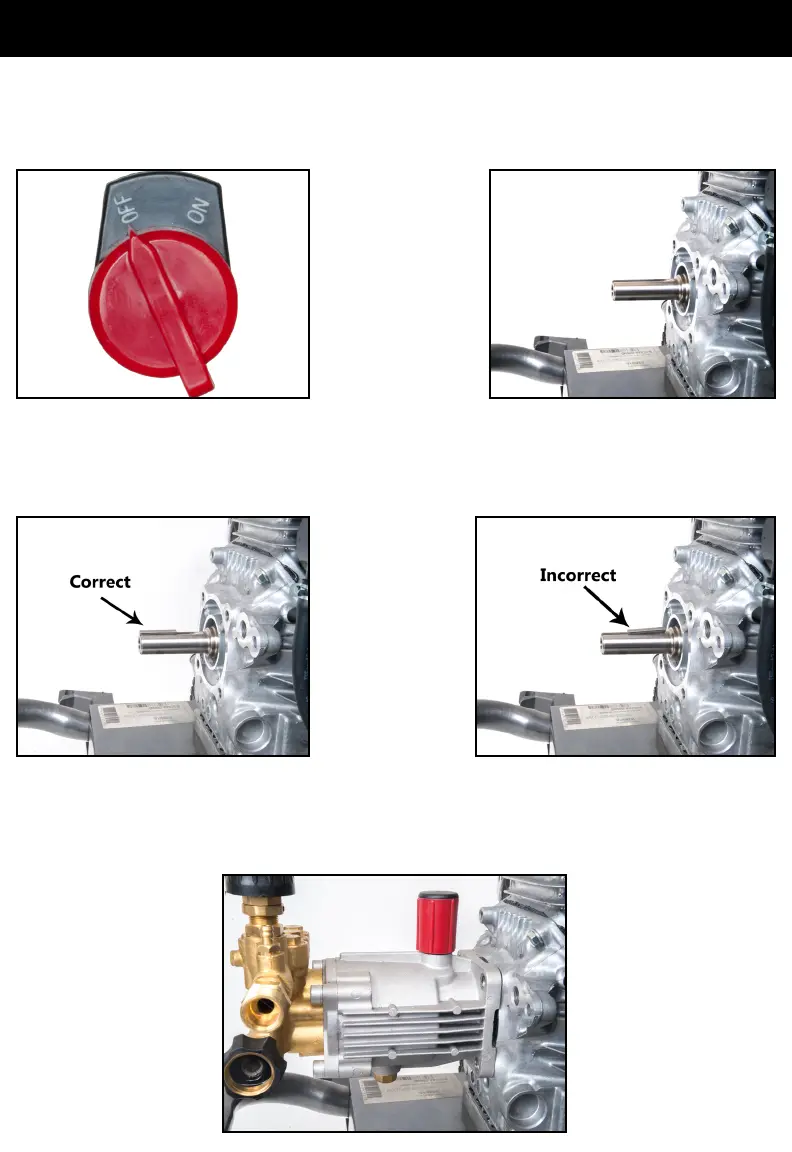

1. Make sure the unit is powered off. Remove the mounting bolts that hold the old
pump to the engine, and remove the old pump. Make certain that the engine shaft is
clean and free of debris before installation of the new pump.
2. Place the shaft key into the key slot on the engine shaft. Hold it in place with your
nger while sliding the pump onto the engine shaft. Make sure that the shaft key
does not slide up the shaft and stays rmly in the key slot or you can risk damaging
the pump hollow shaft when tightening the mounting bolts.
3. After placing the pump onto the shaft with the key in place line up the 4 mounting
bolt holes with the 4 engine mount bolt holes. Slide your pump onto the shaft until
the mounting tabs are ush with the frame. There should be no gap between the
mounting tabs and engine.
InstallationInstallation

Vortex CDX2532G Specifications

General

Brand	Vortex
Model	CDX2532G
Category	Water Pump
Language	English
