PRO TRIPOD LEVELING HEAD
4 5

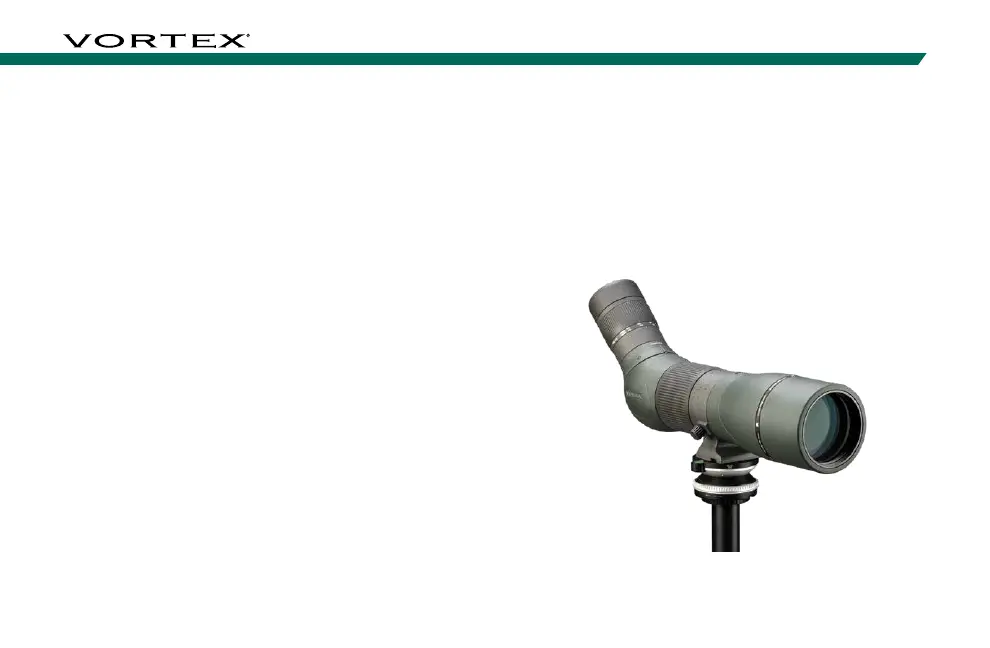

Attaching Optics to Leveling Head
To mount your optic to the tripod:
Thread your optic onto the leveling head’s 1/4"-20 thread.
Note: To mount binoculars to the tripod a binocular adapter is
required. Purchase Vortex
®
binocular adapters from your local
dealer.
Basic Adjustments
Tilt/Panning Action
The tilt/panning action of the Pro Leveling Head can
be adjusted by unlocking the Knurled Control Ring. This
allows you to position your optic at the desired angle, or
pan the optic while viewing.
• To unlock the leveling head, rotate the Knurled Control
Ring counter-clockwise (viewing from the top) until
the leveling head moves freely. Adjust to your desired
position and lock the leveling head.
To be able to pan while viewing, leave the leveling
head unlocked.
• To lock the leveling head, rotate the Knurled Control
Ring clockwise (viewing from the top) until you feel
tension on the ring. Do not overtighten.
