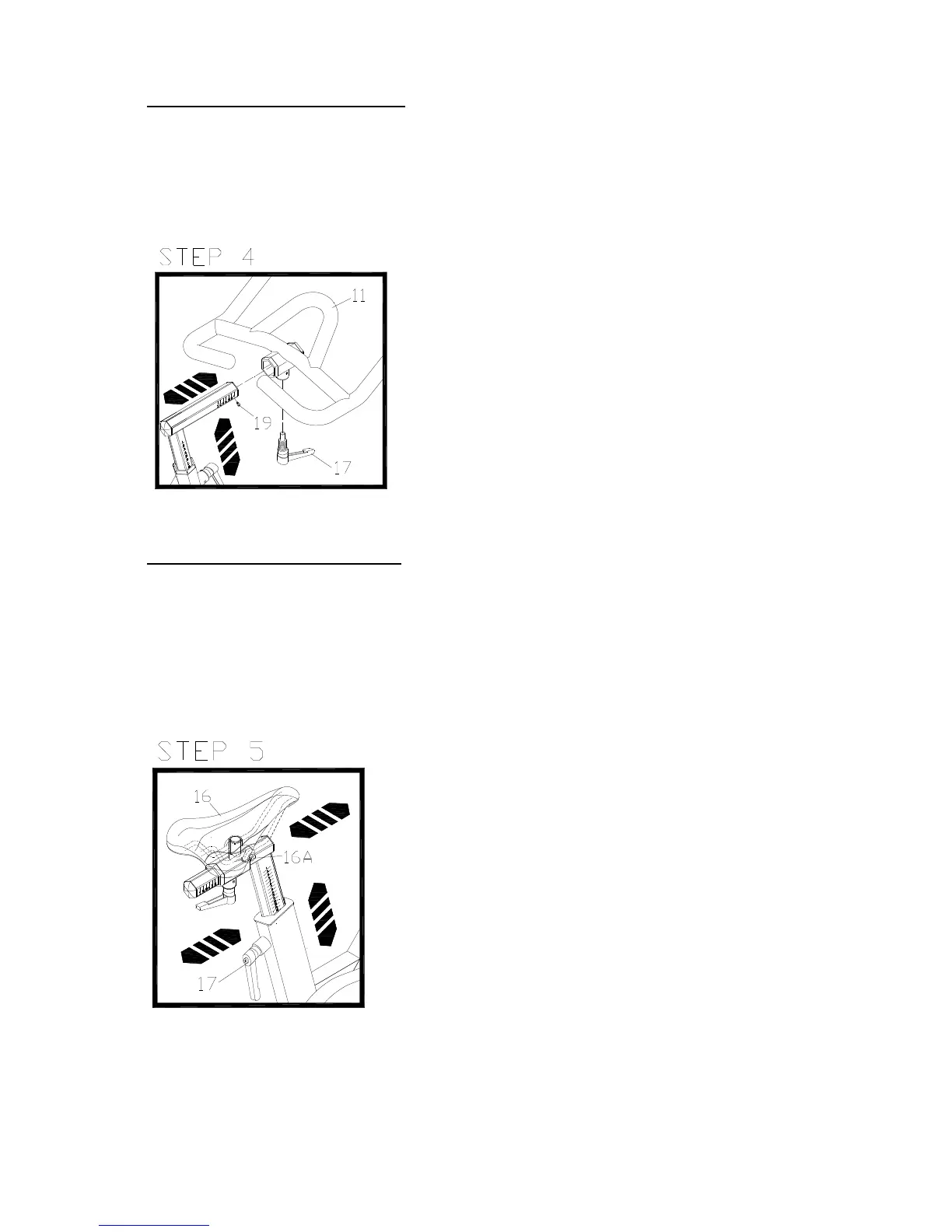

Step 4. (handlebar & stem)
Attach handlebar (11) onto handle bar stem (19), silde handlebar (11) until reach
your required position. Using lock lever (17) for tightening. And then put the
handlebar-stem set onto front tube, adjust to your ideal position., and then
using lock lever to tighten. NOTE: Do not arise above safety line.
Step 5 (saddle & seat post)
Step 5 (saddle & seat post)
Insert seat post (14) into frame's seat tube, assembly saddle (16) on
saddle top slider (16A). Adjust slider using lock lever (17) for forwards or backwards.
and then tighten until reach the proper position. Using lock lever (17)
adjust seat post (14) and tighten in proper position.
NOTE: Do not arise above safety line.
