V-1000 ASSEMBLY

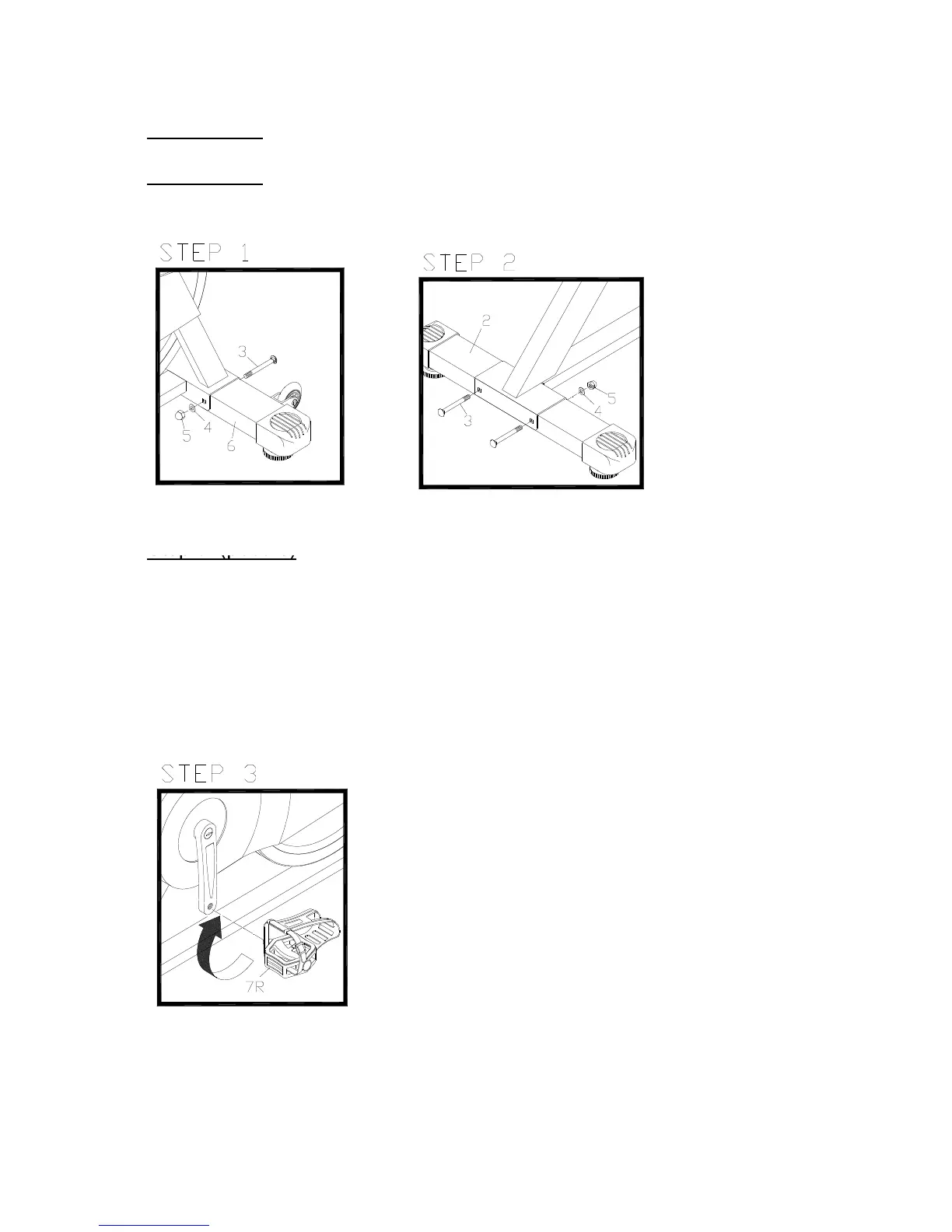

Step 1 (foot)
Attach the front foot (6) to the frame using the bolt (3), washer (4) and nut (5).
Step 2 (foot)
Attach the rear foot (2) to the frame using the bolt (3), washer (4) and nut (5).
attach the pedals (7R/7L) into the crank arms (62R/62L), each pedal
is marked with the letter R(right) or R(right) to denote the side of the bike
they are on. NOTE: the right hand crank is on the same side as the
chain cover (71). Be careful to align the threads correctly to avoid any damage.
A little grease on the thread should help the pedals to screw in easily
and correctly, tighten using a 15mm spanner, both pedals threads should
tighten towards the front of the bike.
