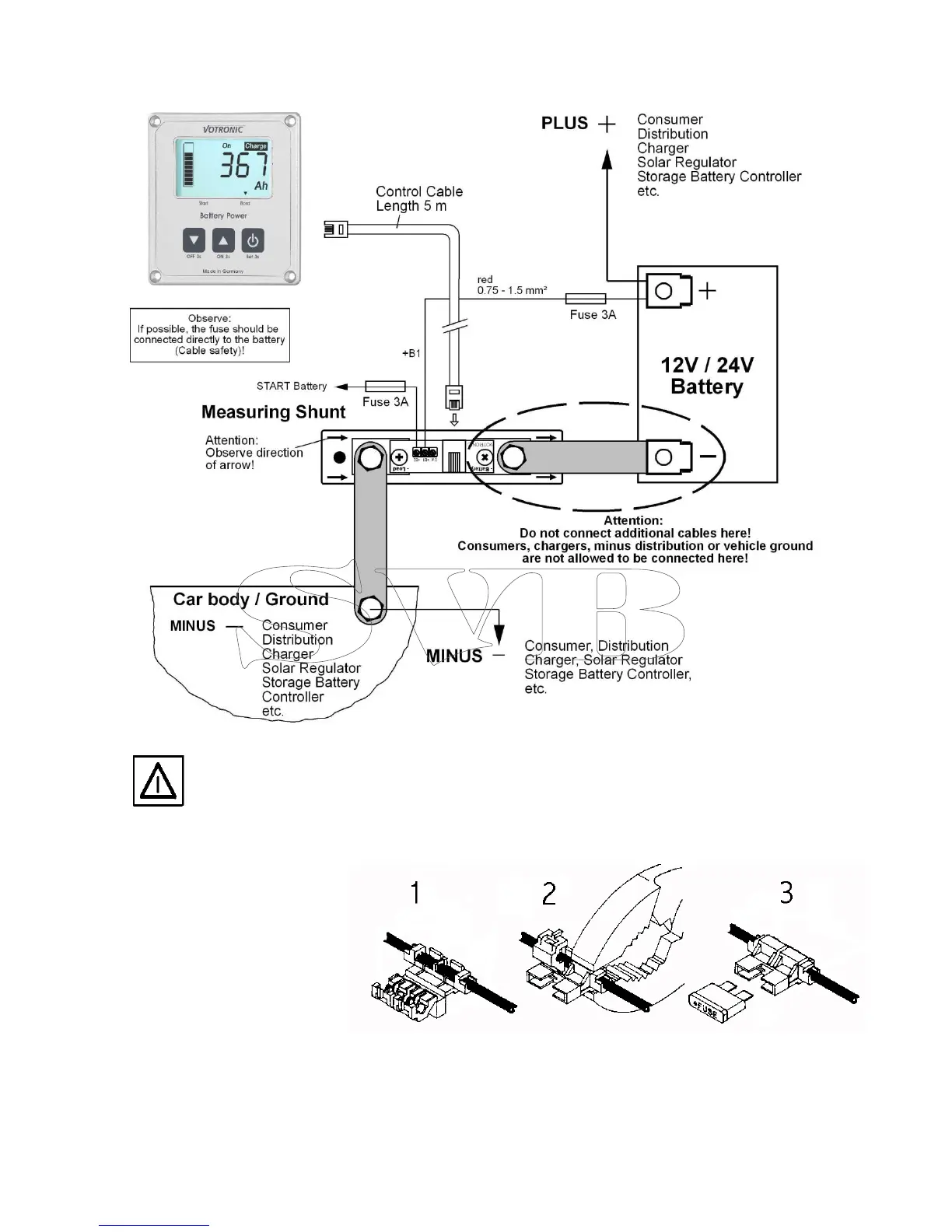

Connection Plan
Except of the measuring shunt, no further connection should exist at the negative pole (-) of the battery
or at the negative pole of the entire battery system! This concerns consumers, vehicle ground, as well as
chargers.
Further connections have to be made either to the car body (ground) or, in case of insulated vehicle bodies, to
the minus distribution. See connection plan.
Installation of the Fuse Holder
1 Insert the cable 0.75-1.5 mm²
2 Close the fuse holder and
the two parts using pliers
and press the two parts together
until it snaps.
3 Finished.
