EN -18-
Door reversing
1. Unscrew upper door hinge
15
and take upper door
14
to safe place.
2. Unscrew door hinge pin
16
and screw it to opposite side rmly and take to safe place.
3. Unscrew middle door hinge
12
and take lower door
10
to safe place. Screw back xing
bracket
11
to original position without middle door hinge
12
.
4. Take door lower pin
18
to opposite side.
5. Take hole plugs
17
to empty holes on opposite side.
6. Place lower door
10
over door lower pin
18
and close onto cabinet.
7. Unscrew xing bracket
13
. Position middle door hinge
12
onto lower door
10
. Place xing
bracket
11
onto middle door hinge
12
and screw together onto cabinet rmly.
8. Place upper door
14
over middle door hinge
12
and position upper door hinge
15
over
upper door
14
and then screw upper door hinge
15
rmly onto opposite side of original
position.

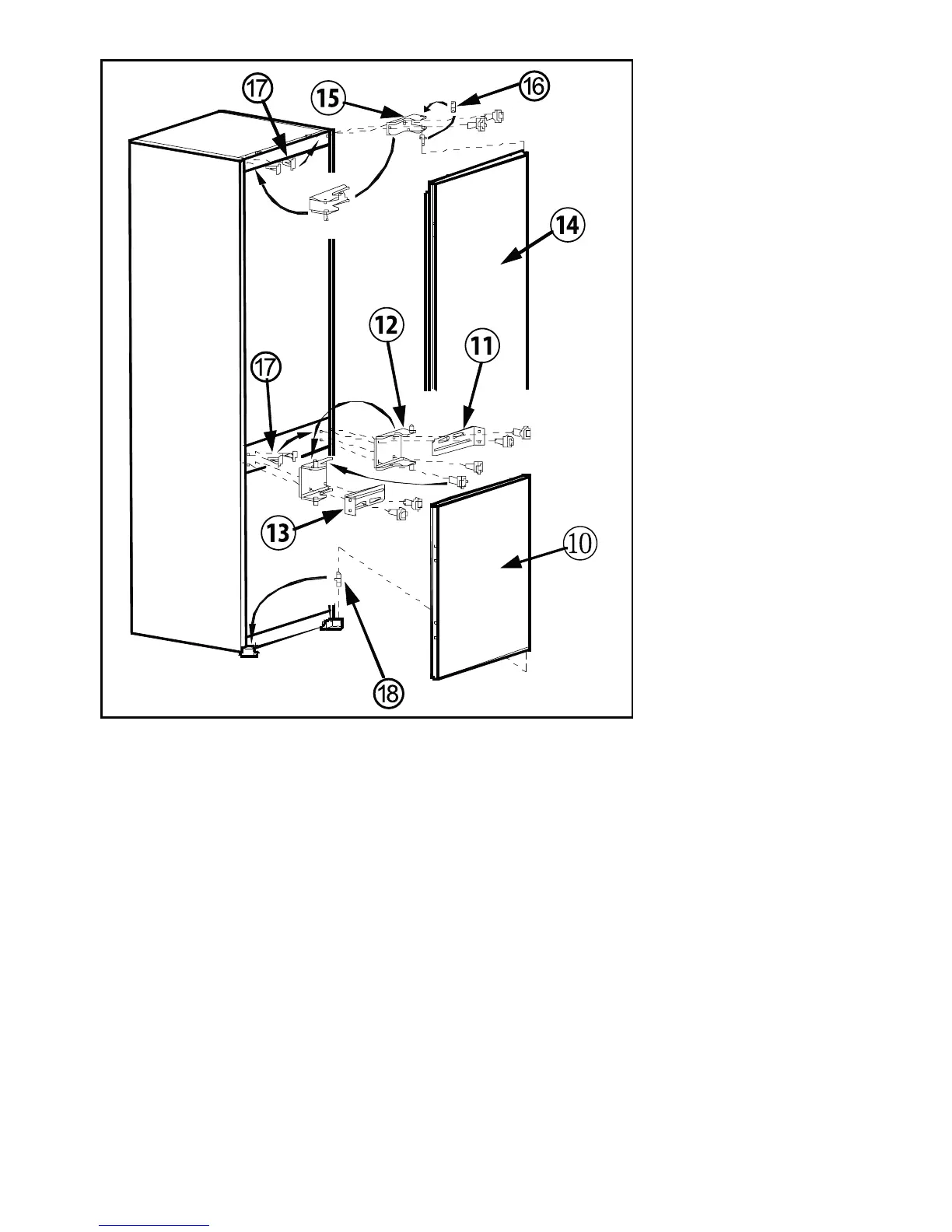

Figure K
