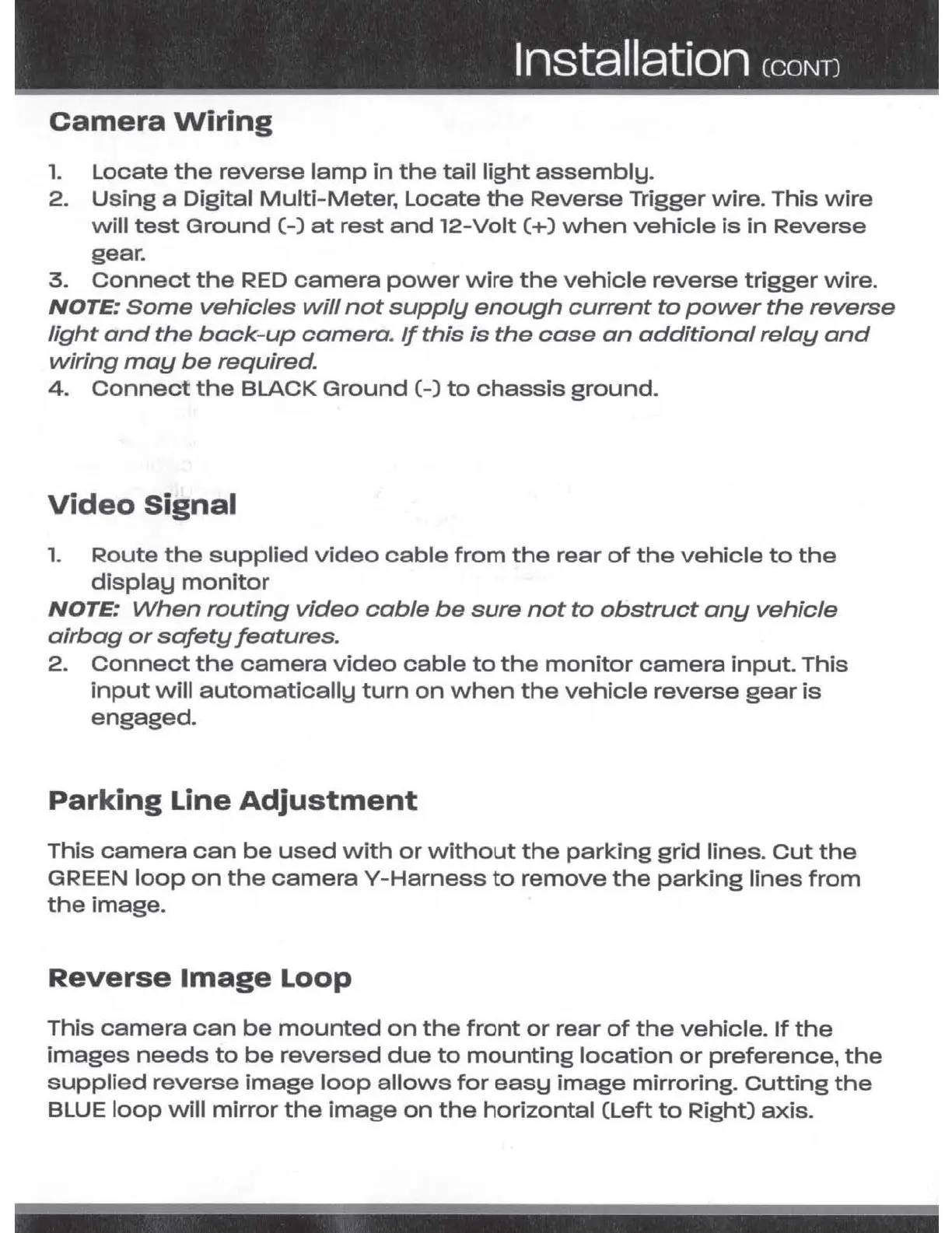

Camera Wiring
1. Locate the reverse lamp in the tail light assembly.
2. Using a Digital Multi-Meter, Locate the Reverse Trigger wire. This wire
will test Ground(-) at rest and 12-Volt (+) when vehicle is in Reverse
gear.
3. Connect the RED camera power wire the vehicle reverse trigger wire.
NOTE: Some vehicles will not supply enough current to power the reverse
light and the back-up camera. If this is the case an additional relay and
wiring may be required.
4. Connect the BLACK Ground (-) to chassis ground.
Video Signal
1. Route the supplied video cable from the rear of the vehicle to the
display monitor
NOTE: When routing video cable be sure not to obstruct any vehicle
airbag or safety features.
2. Connect the camera video cable to the monitor camera input. This
input will automatically turn on when the vehicle reverse gear is
engaged.
Parking Line Adjustment
This camera can be used with or without the parking grid lines. Cut the
GREEN loop on the camera Y-Harness to remove the parking lines from
the image.
Reverse Image Loop
This camera can be mounted on the front or rear of the vehicle. If the
images needs to be reversed due to mounting location or preference, the
supplied reverse image loop allows for easy image mirroring. cutting the
BLUE loop will mirror the image on the horizontal (Left to Right) axis.
