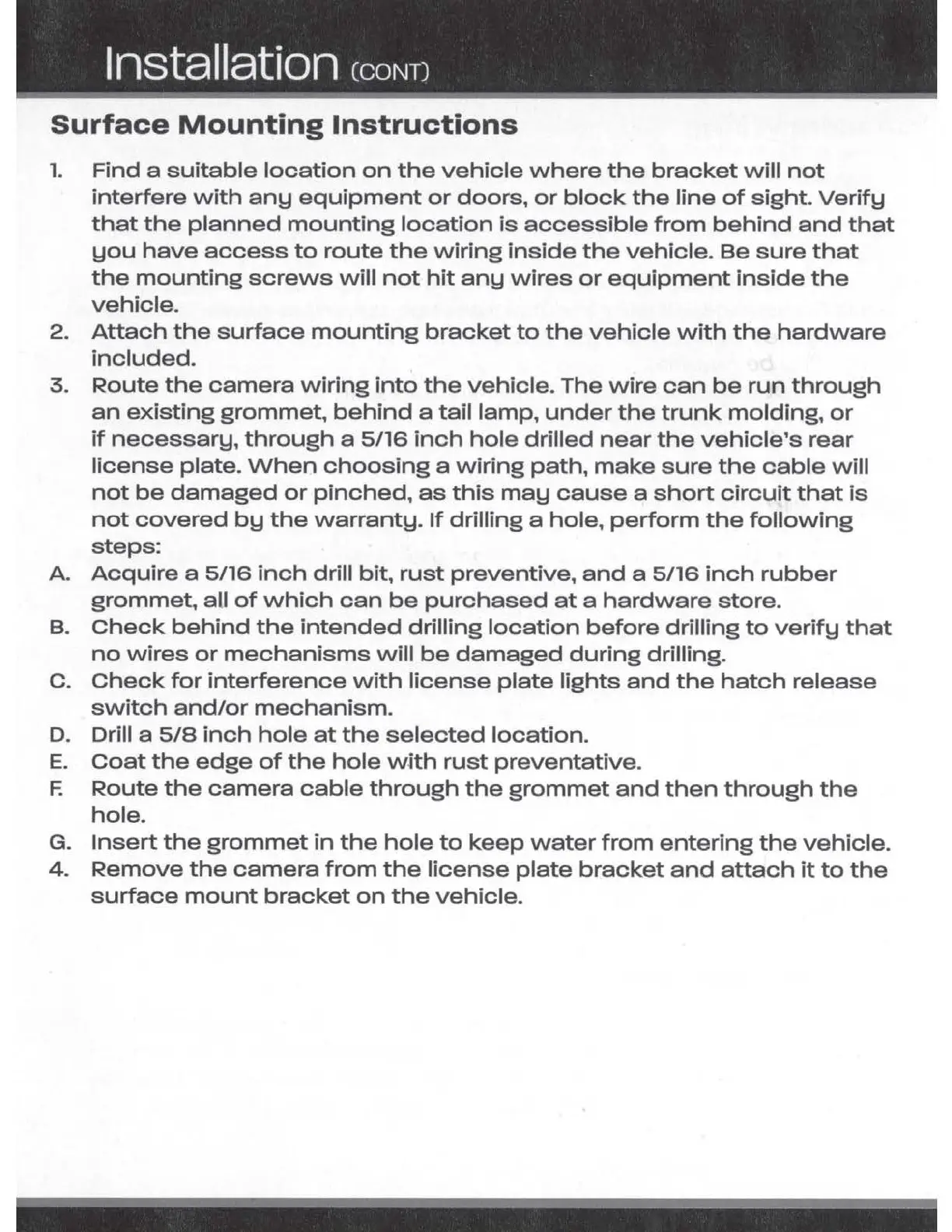

Surface Mounting Instructions
1. Find a suitable location on the vehicle where the bracket will not
interfere with any equipment or doors, or block the line of sight. Verify
that the planned mounting location is accessible from behind and that
you have access to route the wiring inside the vehicle. Be sure that
the mounting screws will not hit any wires or equipment inside the
vehicle.
2. Attach the surface mounting bracket to the vehicle with the hardware
included.
3. Route the camera wiring into the vehicle. The wire can be run through
an existing grommet, behind a tail lamp, under the trunk molding, or
if necessary, through a 5/16 inch hole drilled near the vehicle's rear
license plate. When choosing a wiring path, make sure the cable will
not be damaged or pinched, as this may cause a short circuit that is
not covered by the warranty. If drilling a hole, perform the following
steps:
A. Acquire a 5/16 inch drill bit, rust preventive, and a 5/16 inch rubber
grommet, all of which can be purchased at a hardware store.
B. Check behind the intended drilling location before drilling to verify that
no wires or mechanisms will be damaged during drilling.
C. Check for interference with license plate lights and the hatch release
switch and/or mechanism.
D. Drill a 5/8 inch hole at the selected location.
E. Coat the edge of the hole wlth rust preventative.
F. Route the camera cable through the grommet and then through the
hole.
G. Insert the grommet in the hole to keep water from entering the vehicle.
4. Remove the camera from the license plate bracket and attach it to the
surface mount bracket on the vehicle.
- - - ---- - - - ---- - -------
