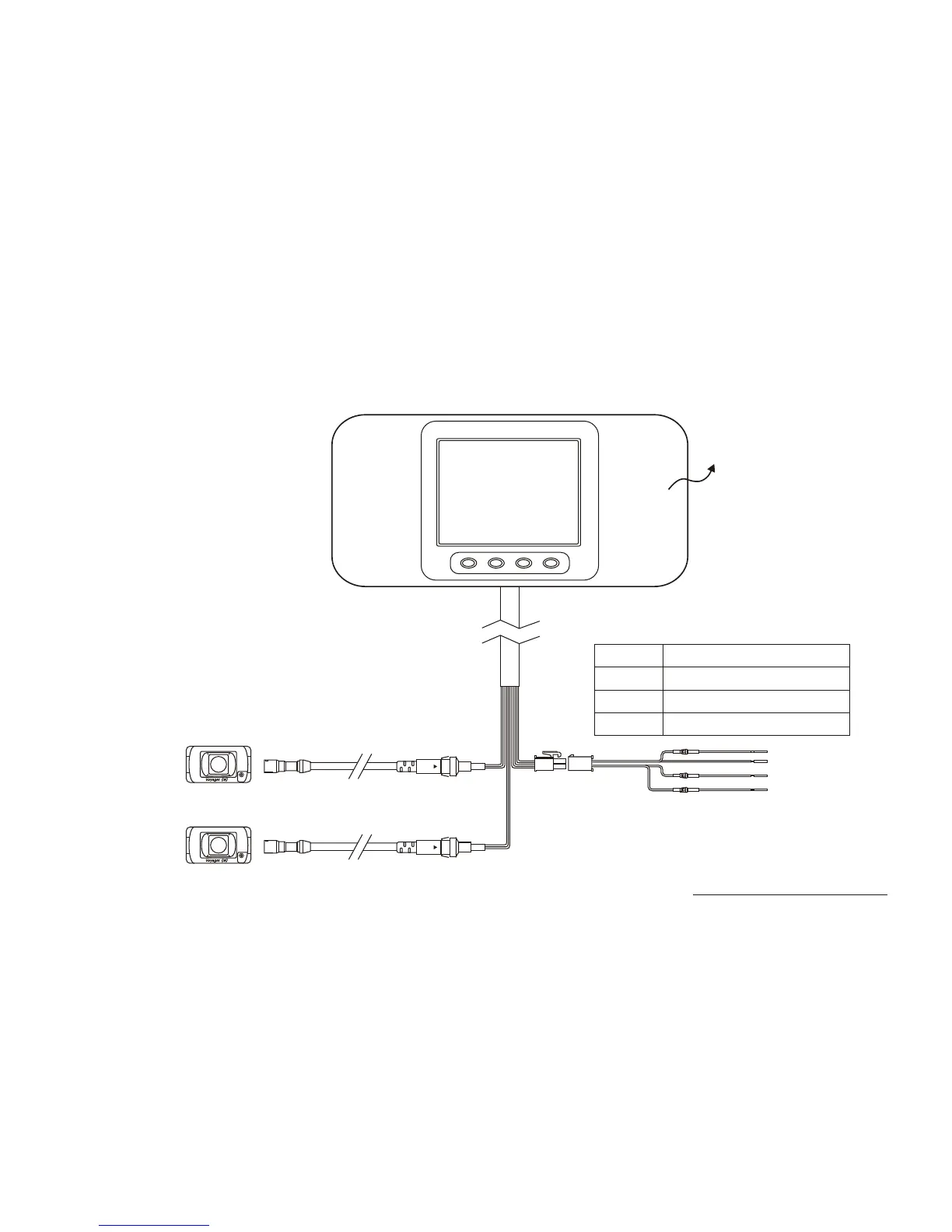

WIRING DIAGRAM
WHEN AOM562 INSTALLED IN SUN VISOR
CAMERA
CAMERA
Extension Cable
4 Pin Female Power Cable
Extension Cable
BLACK
RED
BLACK
RED
BROWN
BLUE
Power Ground
+12V Power
+12V Camera 2 Trigger
+12V Camera 1 Trigger
BROWN
BLUE
Sun Visor
