6
6.5 Place the arm tube assembly on the male pivot point, using caution with the 4-color wire
and Lemo connector. Set the arm in its rest. If the cartridge has a guard, remove it.

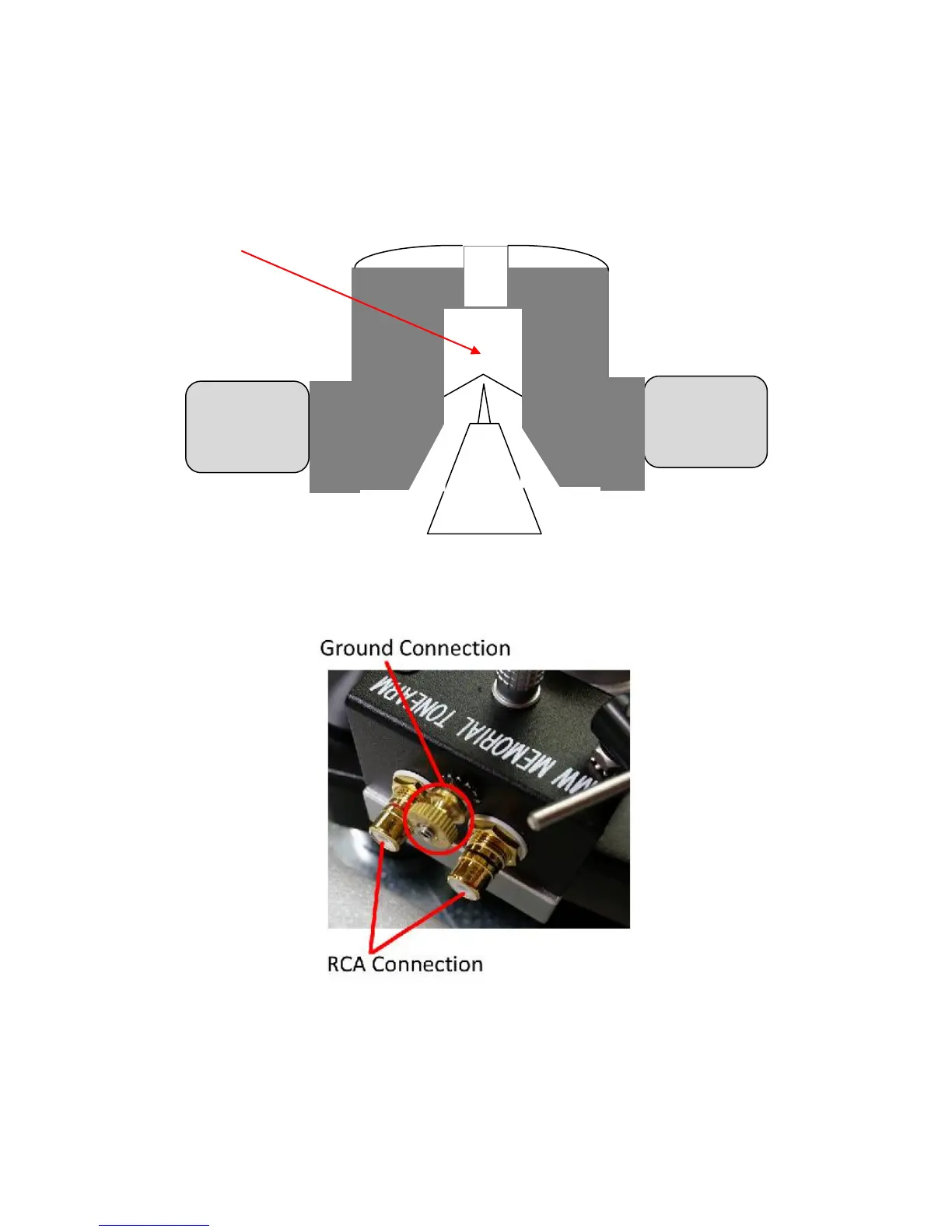

MAKE SURE THE MALE POINT IS IN THE CENTER OF THE FEMALE CUP, IT SHOULD FEEL
SOLID BUT YOU SHOULD BE ABLE TO SLIDE IT SIDEWAYS AND THE ARM RAISES AS
YOU GO FROM THE CENTER TO THE SIDES OF THE FEMALE BEARING. IT IS AN
INVERTED CONE.
FEMALE BEARING
6.6 Line up the red dot on the Lemo connector with the red dot on the receptacle on the
junction box. The Lemo connector can plug in only one way and should not be forced.
6.7 Swing the tonearm over the jig so the stylus is as close as possible to the dot in the center
of the grid. Set the counterweight for enough downward force to keep the stylus from
moving when resting on the jig.
6.8 Look down at the cartridge and align it between the lines of the grid. You should have the
diamond stylus on the white dot and the cantilever lined up with the lines on the grid.
Use a flashlight to look from the front and line up the cantilever with the grid
To Next Page
