VQ Model SBD-5 DAUNTLESS

To Next Page

To Previous Page

Note: The holes on the surface of the bottom of the

horizontal stabilizer are pre-drilled at factory.

2.mm drill bit

Aluminum

tube inside

3x10mm screw

BOTTOM

3x10mm screw

.........2

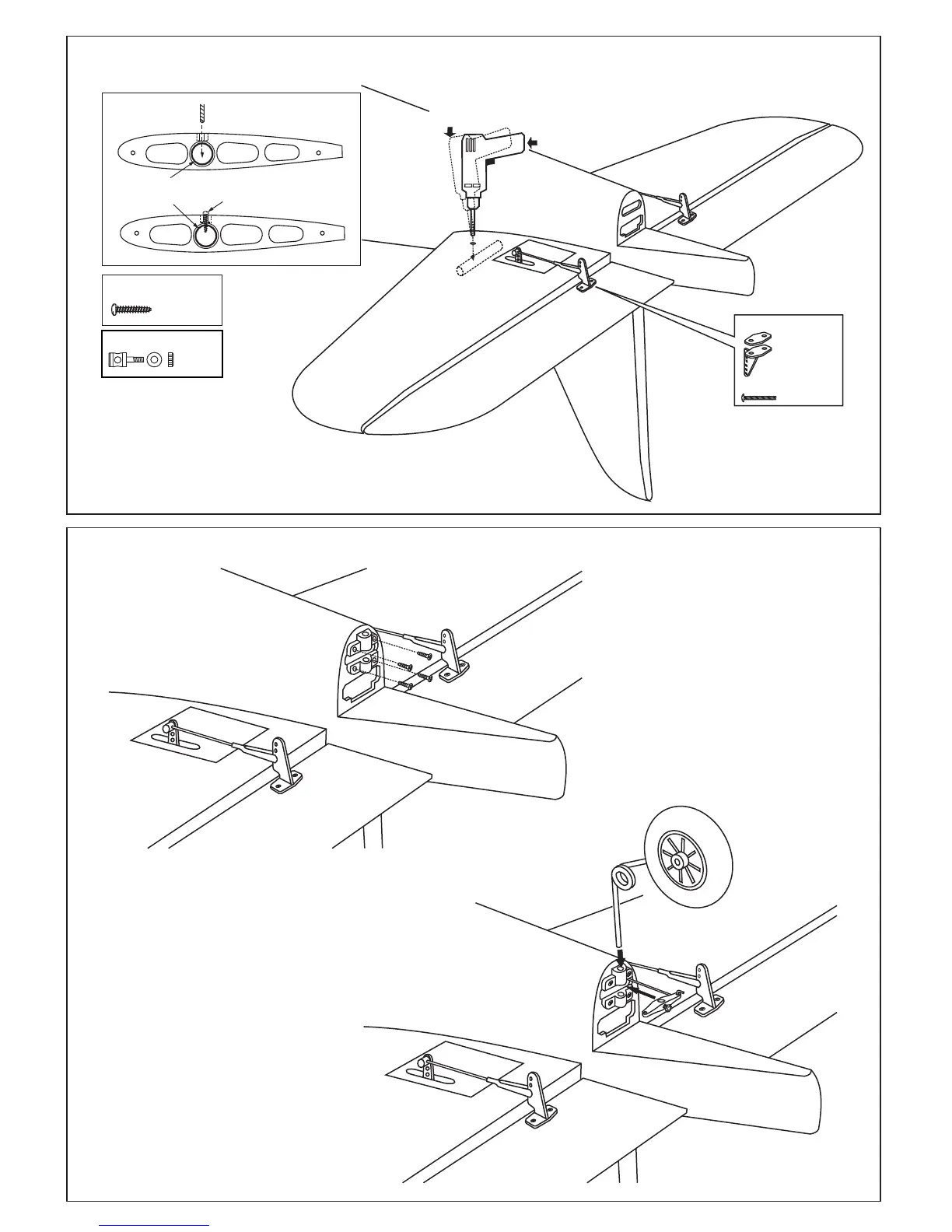

Secure the horizontal stabilizer

in place using 3x10mm screw.

WRONG

RIGHT

Control horn

................2

2x20mm

..........4

Connector

.....2

14- Horizontal stabilizer

15- Tail wheel

Note: Slide one end of the

tail wheel push-rod into the

tail wheel arm first.

VQ Model SBD-5 DAUNTLESS - Tail Wheel
