VSPHOENIX S - Throw Line Installation (LED Carpet); Distance Measurement Guidelines

VSPHOENIX S MANUAL 1716 VSPHOENIX S MANUAL

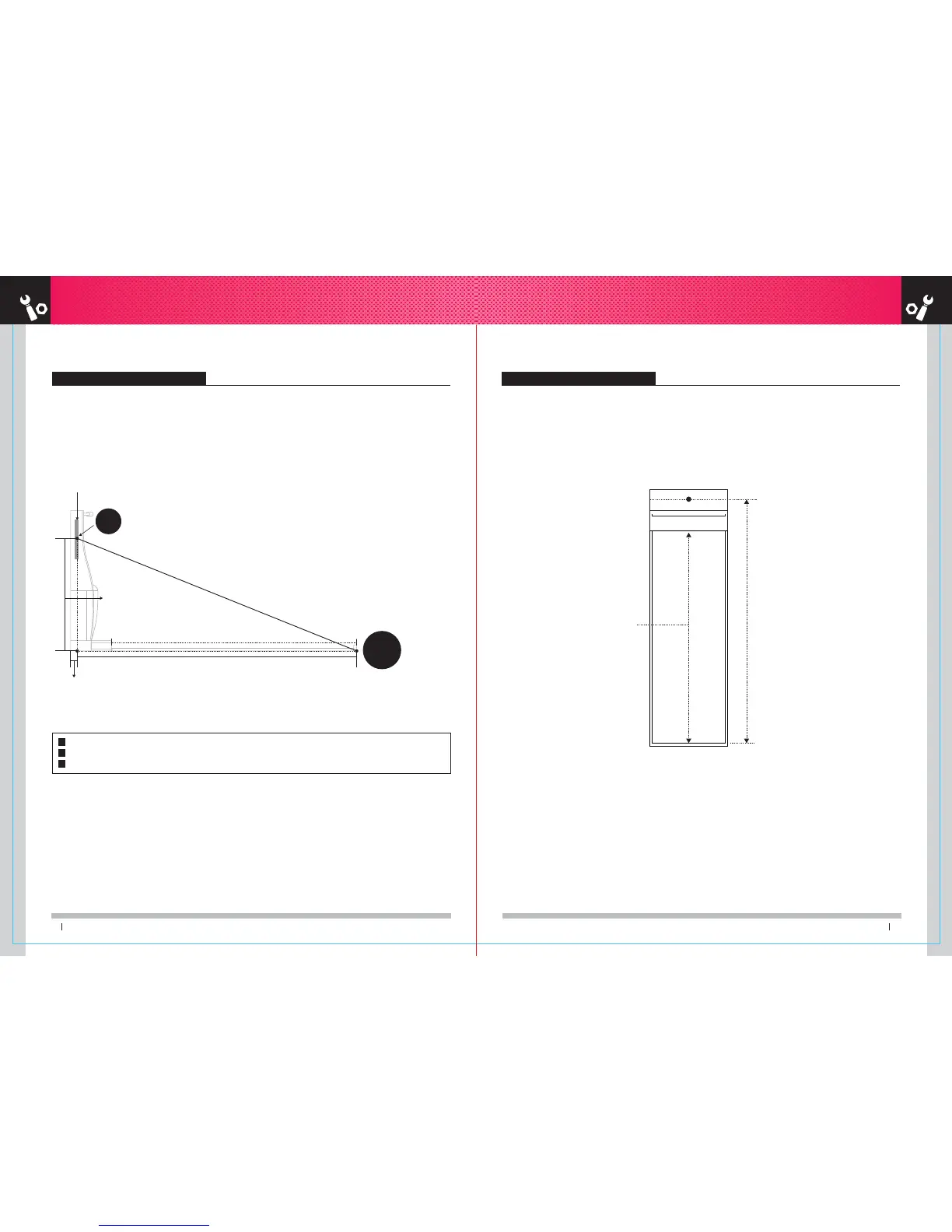

THROW LINE Distance Measurement THROW LINE Distance Measurement
Height from floor to Bull center
TARGET
Distance from edge of footboard to throw line
Distance from a point which the prependicular from the Bull to floor, to throw line
The distance from the center of Bull to throw line
1,730mm
56mm
2,980mm
2,430mm
2,430mm1,902mm
BULL
1,902mm
BULL
LED
THROW
LINE
The diagonal distance from center of IM BULL to the starting point of throw line shoud be 2.983mm.
The throw line should be placed 1,902mm far away from the edge of VSPHOENIX S footboard.
Throw line should be perpendicular to the main body
LED THROW LINE
VSPHOENIX S
1
2
3
THROW LINE(LED carpet version) THROW LINE(LED carpet version)
