Installation option - converting
from desktop to wall mount position

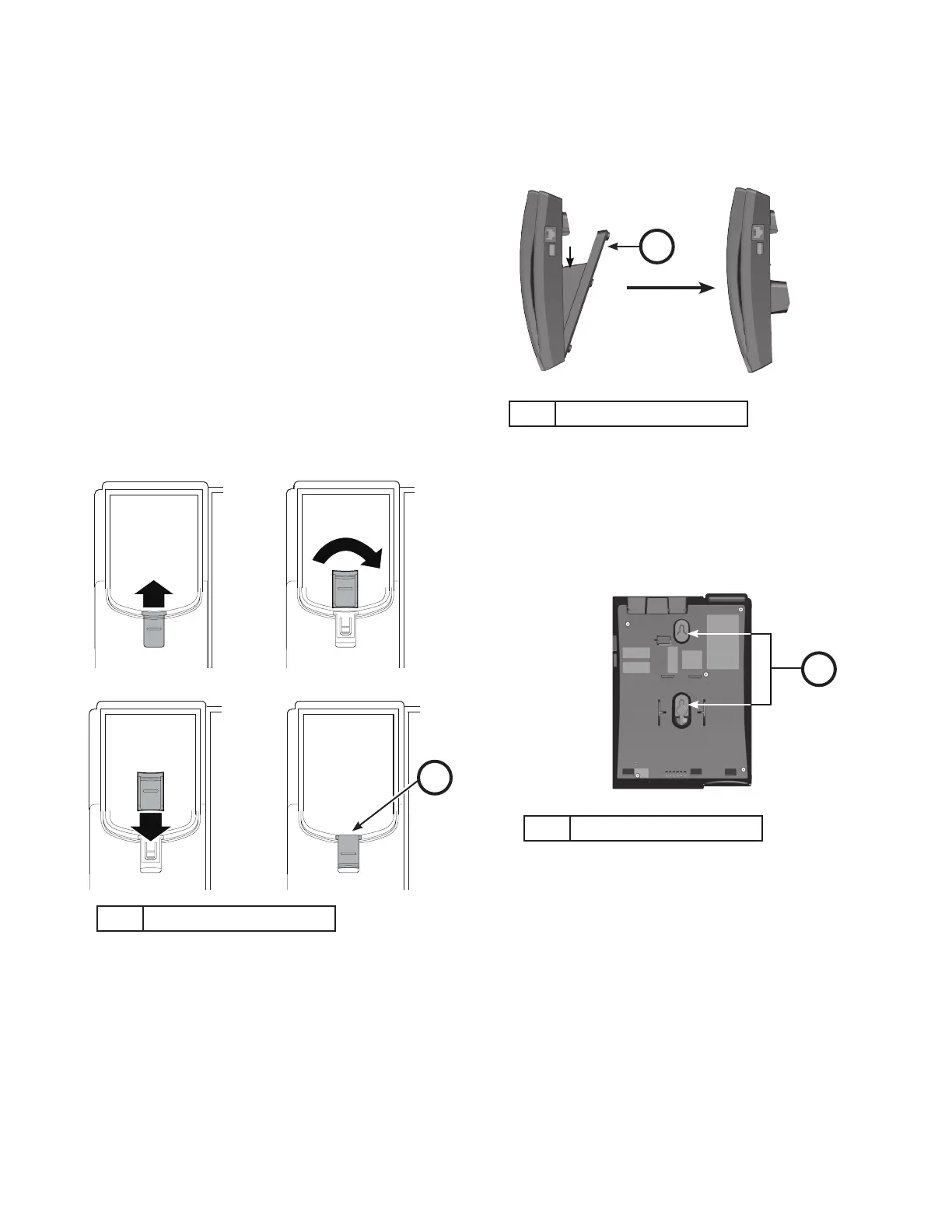

To mount the telephone base on the wall
1. Unplug the Cat-5 network cable from the
network wall jack.
2. Remove the cordless handset from the
telephone base if it is cradled in the
telephone base. On the telephone base,
press the wall mount clip upward and rotate
a half turn (180°). Slide back the clip.
• It locks into place with the protruding
edge pointing towards the upper edge
of the telephone base. This protruding
edge holds the handset when the phone
is mounted on the wall.
3. Turn the telephone base over with the bottom
side facing up. To remove the mounting
bracket, firmly press down the tabs on the
mounting bracket and pull them out from the
grooves on the telephone base.
4. Mount the telephone base on the wall by
aligning the eyelets with the mounting studs
of the wall plate. Then slide the telephone
base down on both mounting studs until it
locks into place.
5. Plug the Cat-5 network cable back into the
network wall jack with Power over Ethernet
(PoE). Then replace the cordless handset on
the telephone base cradle.
1
1 Protruding edge
3
3 Eyelets
2
2 Mounting bracket
