SIP contemporary 1-line hotel telephone CTM-S2212
Telephone base installation
Installation option - wall mount position

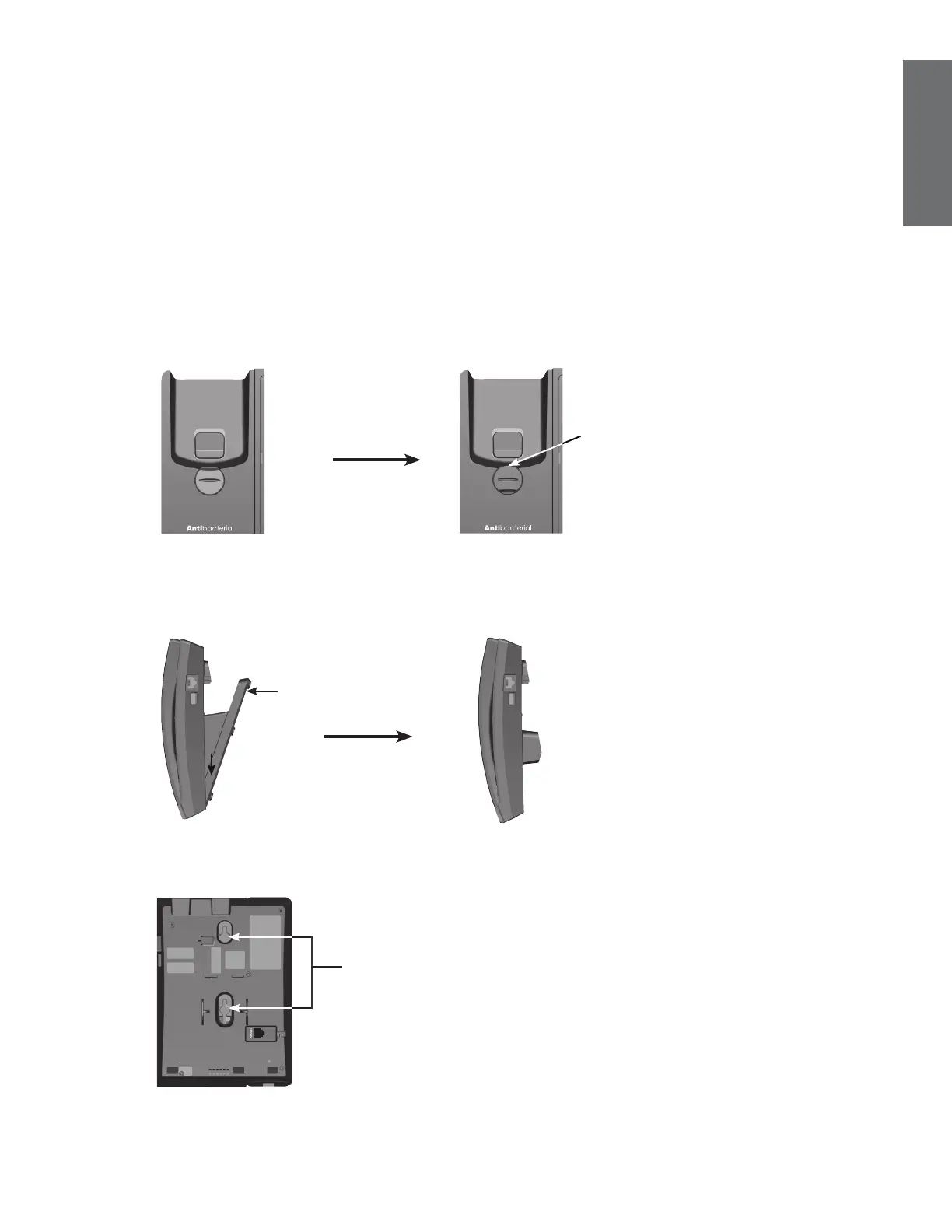

To mount the telephone base on the wall
1. Unplug the Cat-5 network cable from the network wall jack.
2. Remove the corded handset from the telephone base if it is cradled in the telephone base.
On the telephone base, place a coin in the slit of the wall mount clip and rotate a half turn (180
degrees). It locks into place with the protruding edge pointing towards the upper edge of the
telephone base. This protruding edge holds the handset when the phone is mounted on the
wall.
3. Turn the telephone base over with the bottom side facing up. To remove the mounting bracket,
firmly press down the tabs on the mounting bracket and pull them out from the grooves on the
telephone base.
4. Plug the Cat-5 network cable back into the network wall jack with Power over Ethernet (PoE).
Then slide the telephone base down on both mounting studs until it locks into place.
5. Place the handset on the telephone base cradle.
Protruding edge
Mounting bracket
Eyelets
