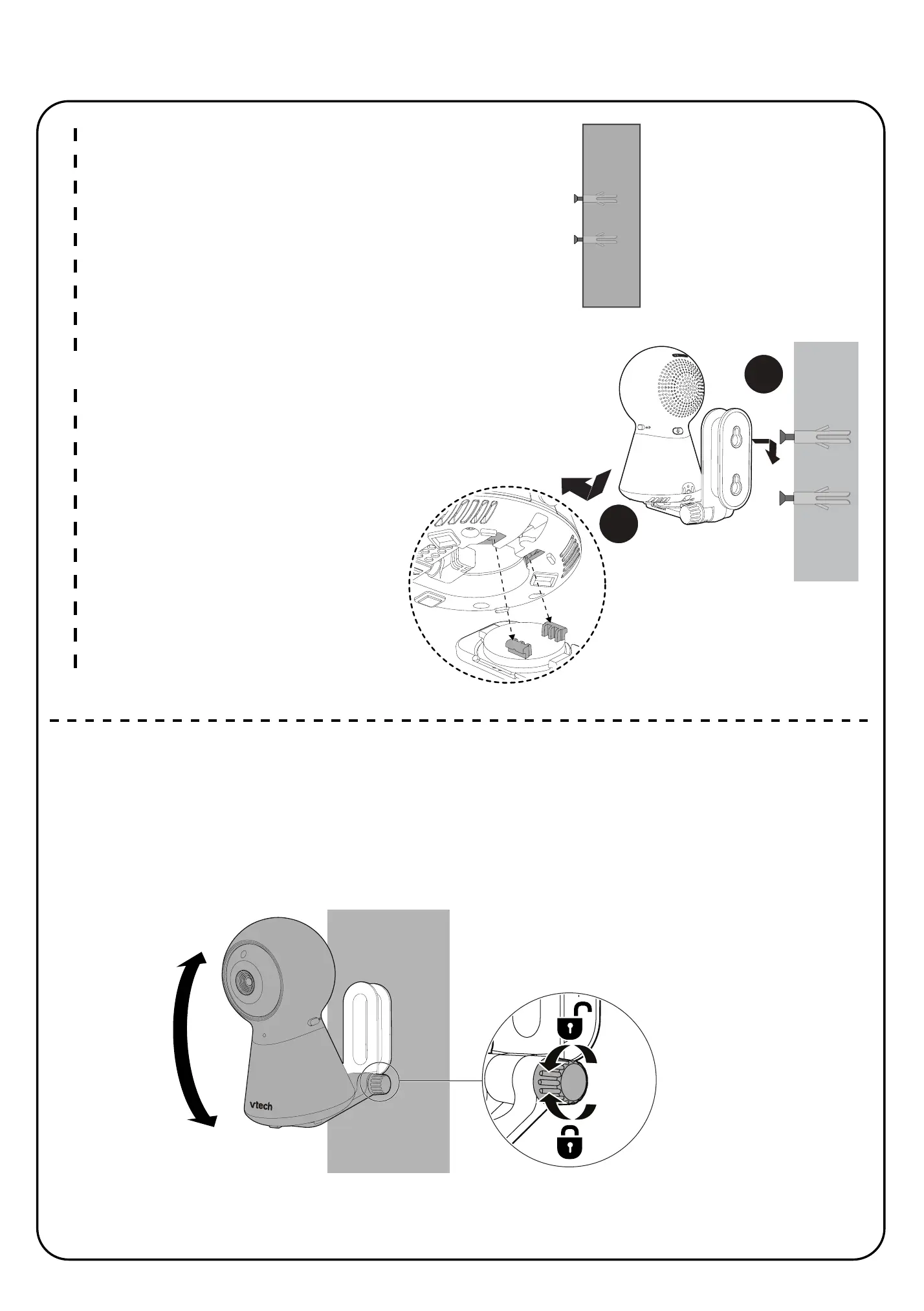

5. You can maximize your baby unit’s viewing angles by tilting the wall mount bracket.
Hold the baby unit, and then rotate the knob in anticlockwise direction. This will loosen
the joint of the wall mount bracket.
Tilt your baby unit up or down to adjust to your preferred angle. Then, rotate the knob
in clockwise direction to tighten the joint and secure the angle.
OR
3. Insert the screws into the holes and
tighten the screws until only 6.5mm of
the screws are exposed.
4. Place the baby unit on the wall
mount bracket, and then slide it
forward until it locks into place.
Align the holes on the wall mount
bracket with the screws on the
wall, and slide the wall mount
bracket down until it locks into
place.
To keep this product working well and looking good, follow these guidelines:
• Avoid putting it near heating appliances and devices that generate electrical noise (for example,
motors or fluorescent lamps).
• DO NOT expose it to direct sunlight or moisture.
• Avoid dropping the product or treating it roughly.
• Clean with a soft damp cloth.
• DO NOT immerse the parent unit and the baby unit in water and do not clean them under running
water.
• DO NOT use cleaning spray or liquid cleaners.
• Make sure the baby unit and parent unit are dry before you connect them to the mains again.
General product care
When you are not going to use the baby monitor for some time, store the parent unit, the baby unit and
the adaptors in a cool, dry place.
Storage
Adult supervision
• This baby monitor should be used as an aid and proper adult supervision is required.
• Do not place the baby unit inside the cot or playpen.
• As for child’s safety, touch or play with the baby monitor and all the accessories are not allowed. THIS
IS NOT A TOY.
Technical specications
Frequency control Crystal controlled PLL synthesizer
Transmit frequency Baby unit: 2405-2475 MHz
Parent unit: 2405-2475 MHz
Maximum power used by the transmitter: 0.1W (100mW)
Channels 32
LCD 5” Color LCD (QVGA 480x272 pixel)
Nominal effective
range
Actual operating range may vary according to environmental
conditions at the time of use.
Power requirements Parent unit: 3.8V Li-ion battery
Baby unit power adapter:
Output: 5V DC @ 600mA
Parent unit power adapter:
Output: 5V DC @ 1A
