CHAPTER 3
Configuring the Phono
Preamplifier for MM or MC
The VTL factory standardly configures the TP2.5 phono preamplifier to work with a MC
(moving coil) cartridge. If you would like to alter the standard setting, please follow the
instructions below or contact your dealer for assistance.
WARNING: DO NOT TOUCH ANY COMPONENTS INSIDE THE
PREAMPLIFIER (OTHER THAN THE PARTS MENTIONED BELOW )
EITHER WITH YOUR FINGERS OR WITH ANY METALLIC OBJECT,

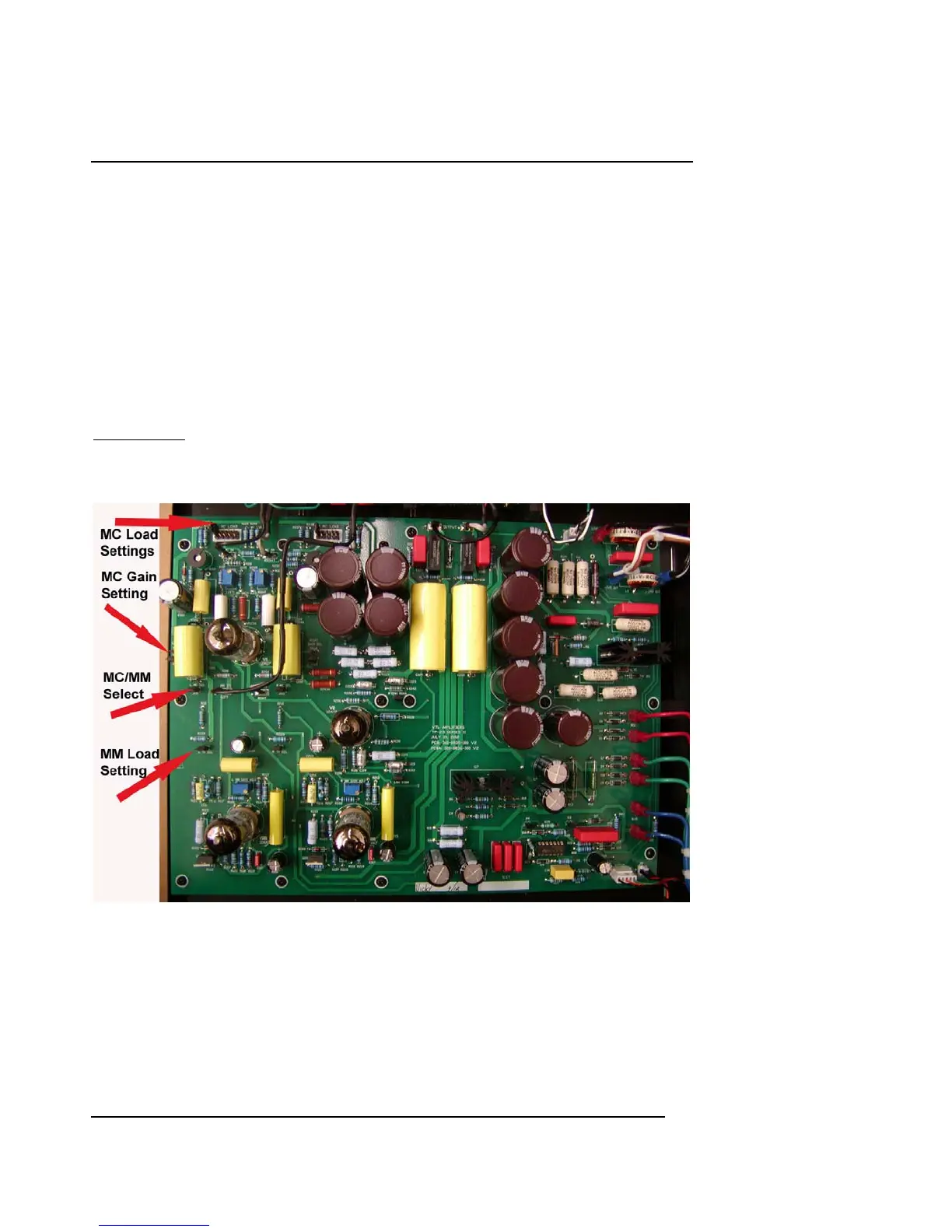

TP2.5 Internal Jumpers for MC/MM Selection
1. Remove the top cover of the TP2.5:
Your must turn off the TP2.5 preamplifier and remove the power cord. Use a #2
Phillips screw driver and remove the 6 screws on the top and 3 screws on each
side of the preamplifier. Keep the screws in a safe place so that you can put the
cover back onto the unit when you have completed the following operation.
TP2.5 Preamplifier Owner’s Manual
VTL
8
