4. Selecting MC setting:

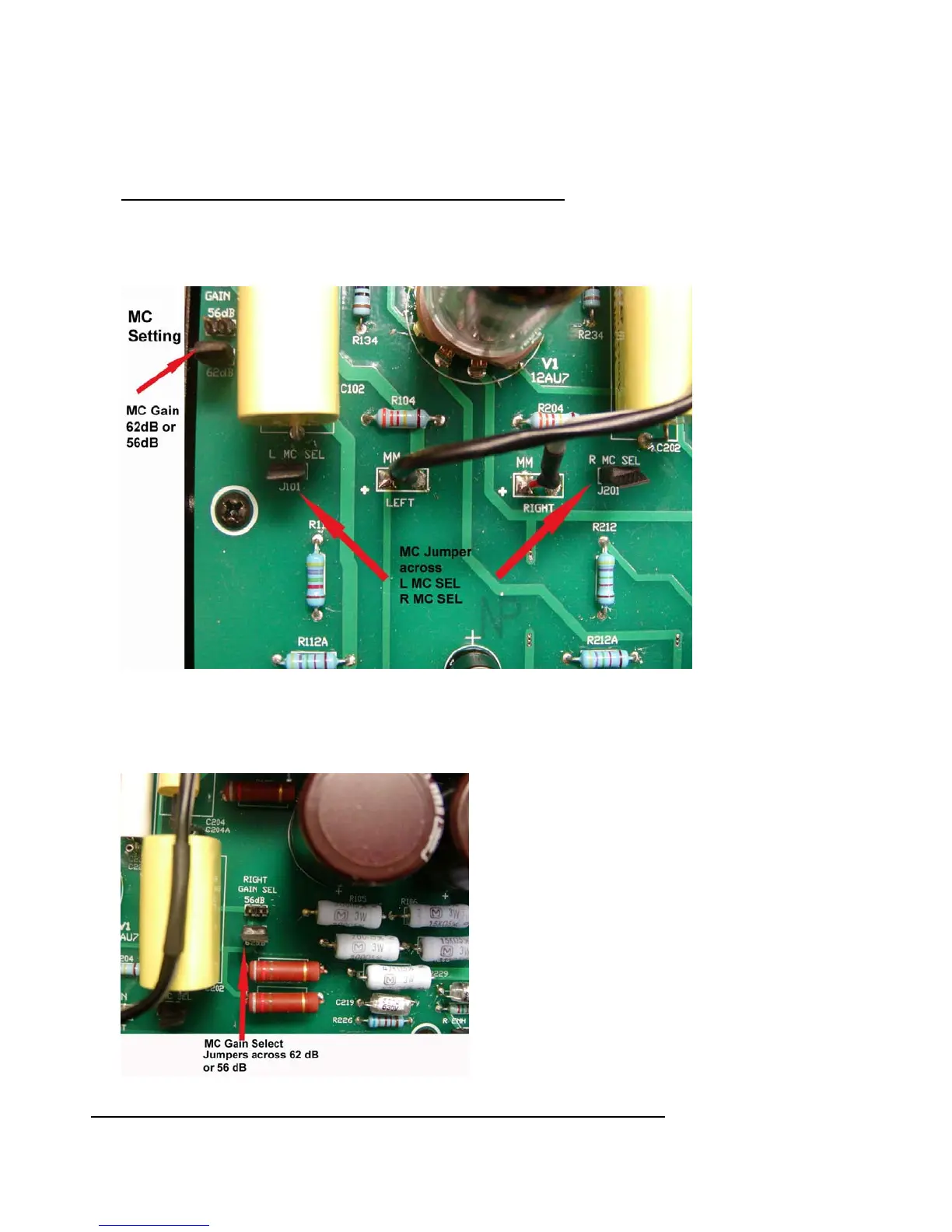

Locate the jumpers L MC SEL (J101) and R MC SEL (J201:) There are two
small black jumpers located on the TP2.5 PC board on the left hand side of
the board marked JP101 and JP201. To set the preamplifier for MC
cartridges, connect the jumpers across both pins of the headers.
5. Selecting MC Gain:
Locate the MC Gain jumpers L GAIN SEL and R GAIN SEL. Place the
header across either the 62 dB or 56 dB headers for each channel.
TP2.5 Preamplifier Owner’s Manual
