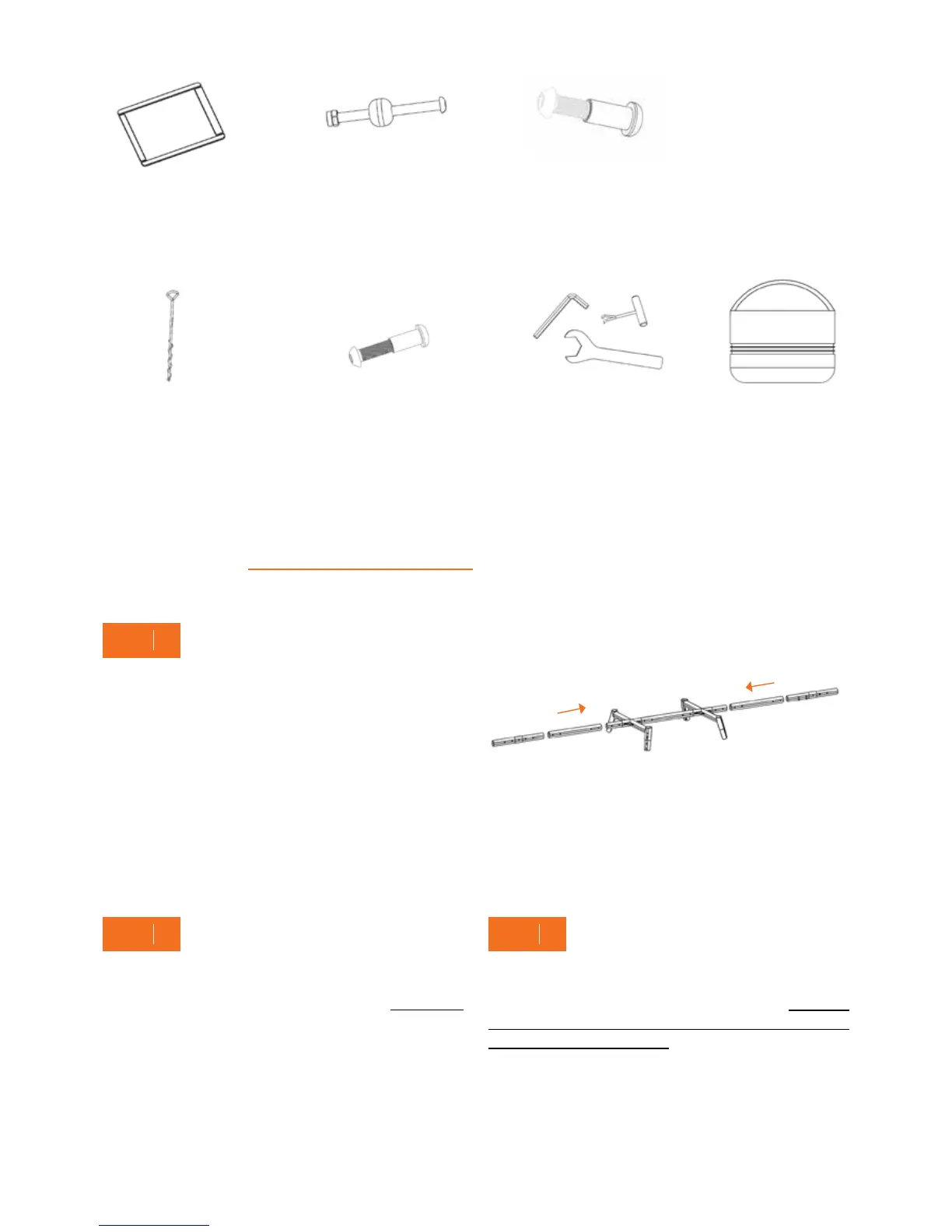

7.2. Assembly – Play Set (Cubby inside)
1
STEP
A. Insert two-way Top Joiners into both ends of a Cubby
Rail, and then insert Cubby Rails into both ends of those
two-way Top Joiners.
B. Insert Rail Joiners into of both end Cubby Rails.
Ensure that you lock all parts together securely with Frame
Bolts and Nuts.
2
STEP
Assemble the Cubby House component of your Play Set,
following
5.2. Assembly – Cubby House only
, from Step 3
– ignoring any notes about positioning in relation to the one-
way Top Joiner.
3
STEP
Assemble the Swing Set component of your Play Set, following
the instructions packaged with the Swing Set, but remove a
Rail Joiner on the Swing Set at the point where you want
to install your Cubby House.
4x Pads
6x Anchors 24x Frame Bolts 1x Tool Set
4x Short Bolts
1x Light
4x Long Bolts
4x Rubber
To Next Page
