W'eau WFI-005 - Heat Pump Exploded View

- 7 -

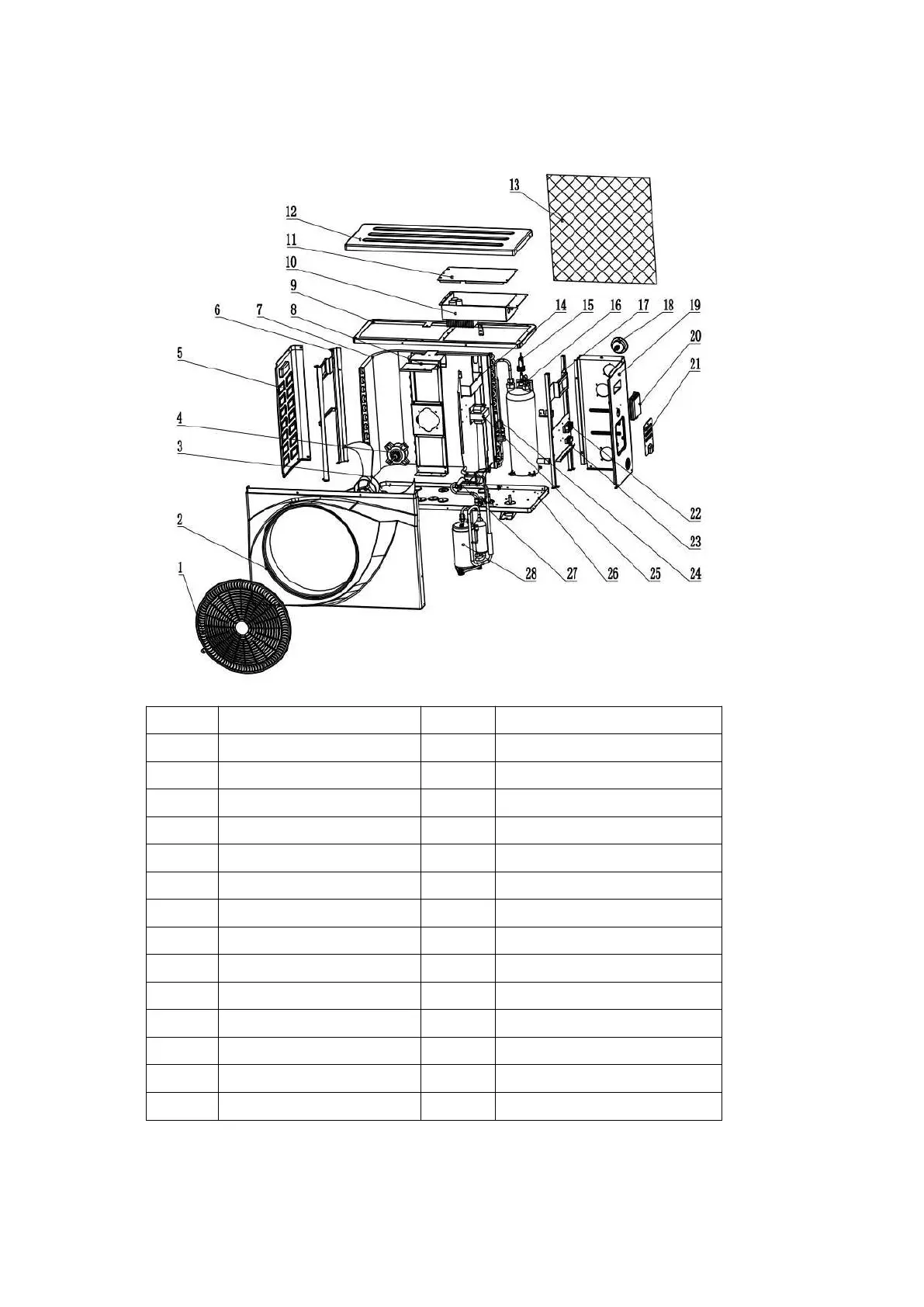

3.5 Heat pump Exploded View
No.
Parts
No.
Parts
1
Fan protective gill
15
Water flow switch
2
Front panel
16
Titanium heat exchanger
3
Fan blade
17
Right structure
4
Fan motor
18
Manometer
5
Left panel
19
Right panel
6
Left structure
20
Control panel
7
Evaporator
21
Electrical terminal cover
8
Fan motor mount
22
Electrical terminal block
9
Upper structure
23
Electrical cable support
10
Electric box cover
24
Electronic expansion valve
11
Electrical box
25
Reactive resistance
12
Top cover
26
Bottom panel
13
Plastic net
27
Four-way valve
14
Middle panel
28
Compressor
