3 Introduction
The ABS/ EBS Code Reader B-DH A101 is an easily operated device for the diagnosis of WABCO
braking systems in trailers, trucks and buses. The sections below describe and explain operation and
functions of the device.
Operation

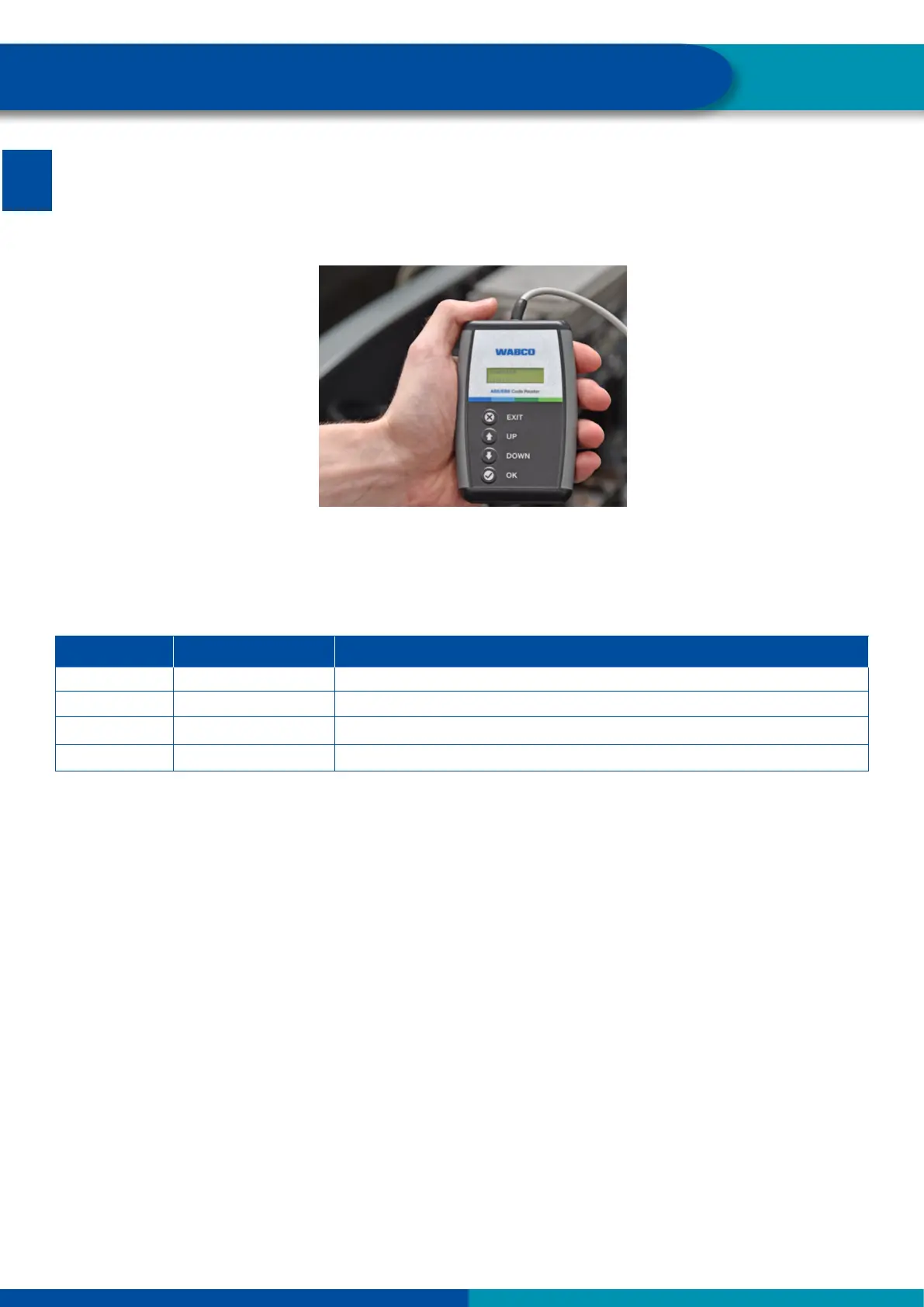

The ABS/ EBS Code Reader B-DH A101 consists of a compact housing and is easily operated with
one hand. A two-line digital display is located in the top section with buttons for operating the device
in the bottom section.
KEY MEANING EXPLANATION
EXIT Exit Exit menu or function
UP Up To access a menu item further up
DOWN Down To access a menu item further down
OK OK Conrm command or access a submenu
The menu structure is a circumferential menu. When the last menu item is reached by scrolling down
or up, the display jumps back to the rst/last menu item.
At the top side there is a connecting cable with a 9-pin D-Sub connector. This connector is
compatible with all diagnostic cables from WABCO currently on the market and enables an easy
connection to the vehicles.
The ABS/EBS Code Reader does not require its own power supply. The power is supplied by the
vehicle to which it is connected.
