WABCO Smartboard II User Manual

2 / 8
11
3 2
54
1: 2: 3:1: 2: 3:1: 2: 3:1: 2: 3:

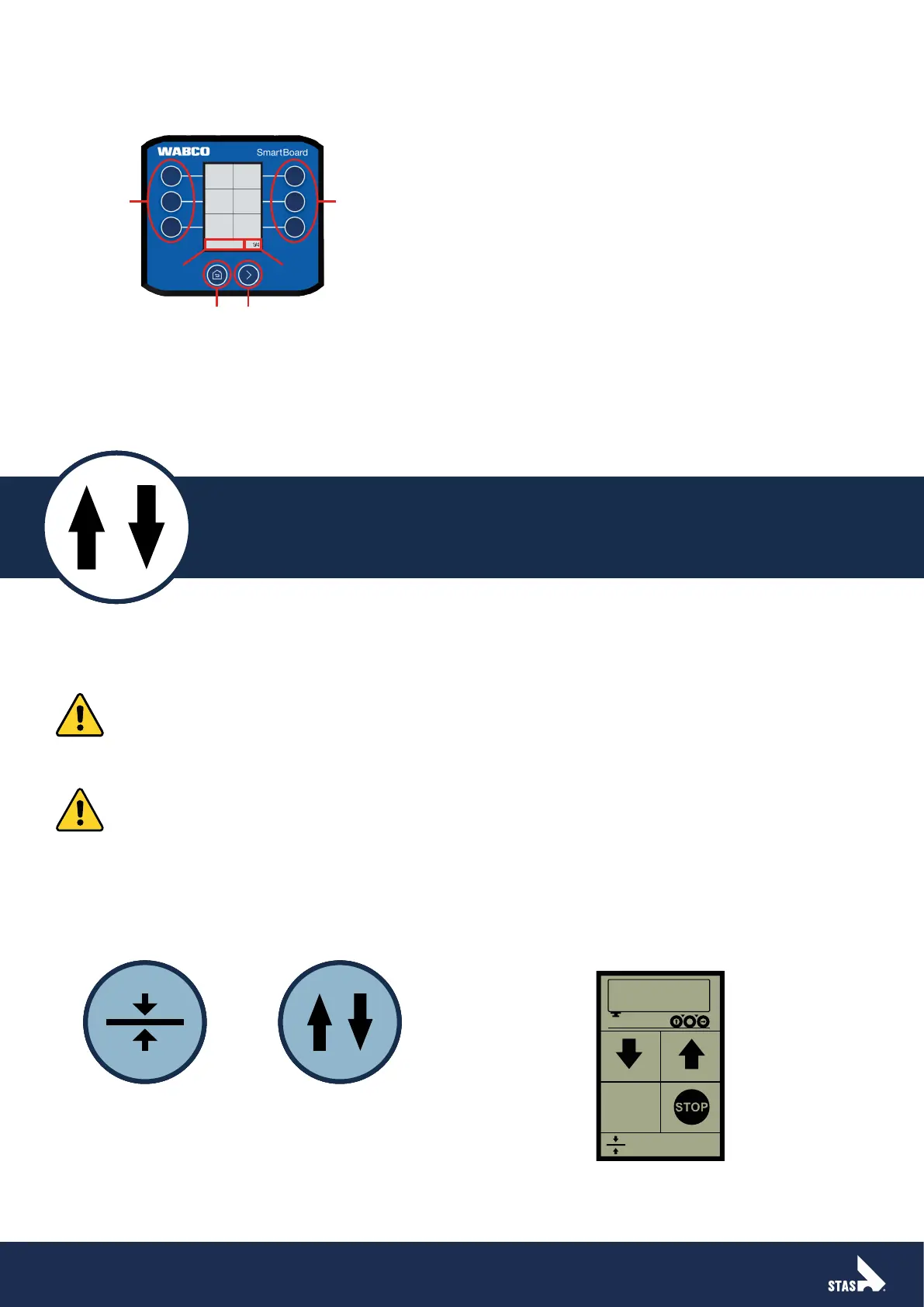

1. Function buttons
2. Next page menu
3. Previous page menu (or back to start page when
you press and hold)
4. Diagnostic messages and active systems
5. Current menu page
2. The buttons and their function
Raising and lowering the chassis can also be done using the blue or black lever on the con-
trol console. The lever works even when the ignition is switched o.
The trailer always returns automatically to the ride height congured by STAS from a speed
of 15 km/h.
ECAS Lifting/Lowering
chassis
Lifting chassis
ECAS stop
Lowering chassis
Purpose of this function: To raise and lower the chassis by using the Smartboard.
3. ECAS: control air suspension height
From the homepage, press the following buttons to enter the the appropriate menu:
SMARTBOARD > ECAS > Lifting/lowering chassis
ECAS: Lowering and raising the air suspension
