WABECO F1210 - 19. Coolant Unit (Optional); 19.1 Setting Up the Coolant Unit; 19.2 Mounting Coolant Unit to Base Cabinet

143
19. Coolant unit (optional)
19.1 Setting up the coolant unit
WhenmountingthecoolantunittoaWABECOmachinebasecabinet,theappropriateboresarealready
present. The machine base cabinet ensures a safe base for the milling machine or coolant unit.

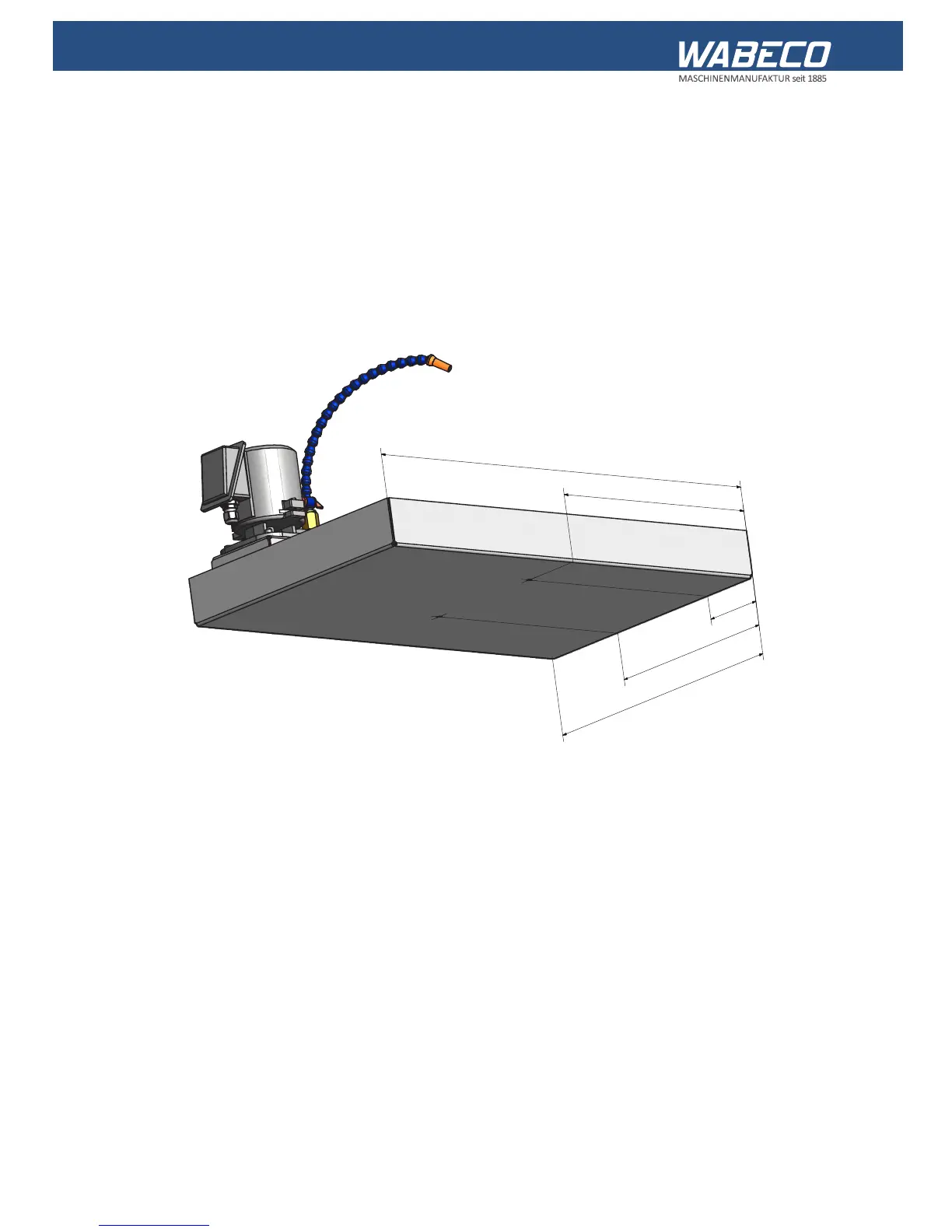

If the coolant unit is secured to another suitable surface, the two through holes must be bored into the
surfacebytheclient.Forthepositionsofthetwoxturethreadedsockets(threadM8)ofthecoolantunit,
see diagram. The diameter of the through holes in the surface must be at least 9 mm
19.2 Mounting of the coolant unit to the machine base cabinet
(optional)
■ The coolant unit (2) is positioned, as shown, on the machine base cabinet (1).
■ The screws and washers required for assembly are included in the scope of delivery.
To screw the coolant unit to the machine base cabinet
proceed as follows:
1. Combine each screw with a washer.
2. Open the door or the machine base cabinet.
3. Pushthescrewsfrombelow,throughtheboredholesinthemachinebasecabinet,intothexture
threadedsocketsandtightenusingaAllenkeyofsize6.
7
0
0
3
5
0
1
0
0
3
0
0
4
4
5
