CAS-GPS IVU BASIC SYSTEMS INSTALLATION MANUAL DOCU0085 Revision Q

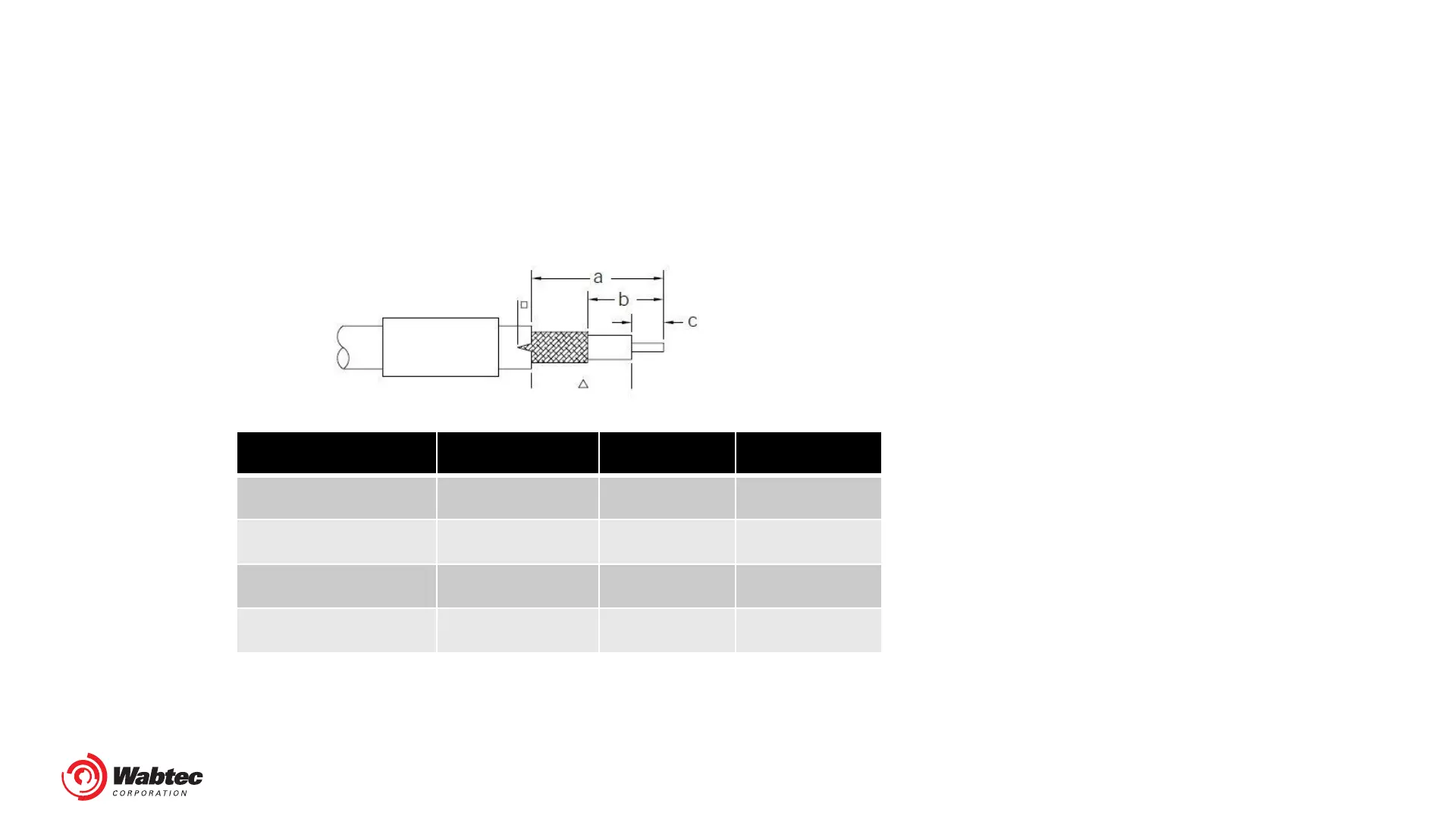

1. Strip cable jacket, braid, and dielectric to dimensions in the table below for the
appropriate cable and connector. All cuts are to be sharp and square. Important: Do not
nick braid, dielectric, and centre conductor.
Cable Type
A (mm)
B (mm)
C (mm)
RG58 TNC
15.5
8
3.5
RG58
N
15.1
6.8
4
RG214 TNC
16.8
7.3
4.7
RG214 N
15.1
6.8
4
Antenna cable terminations
