CAS-GPS IVU BASIC SYSTEMS INSTALLATION MANUAL DOCU0085 Revision Q

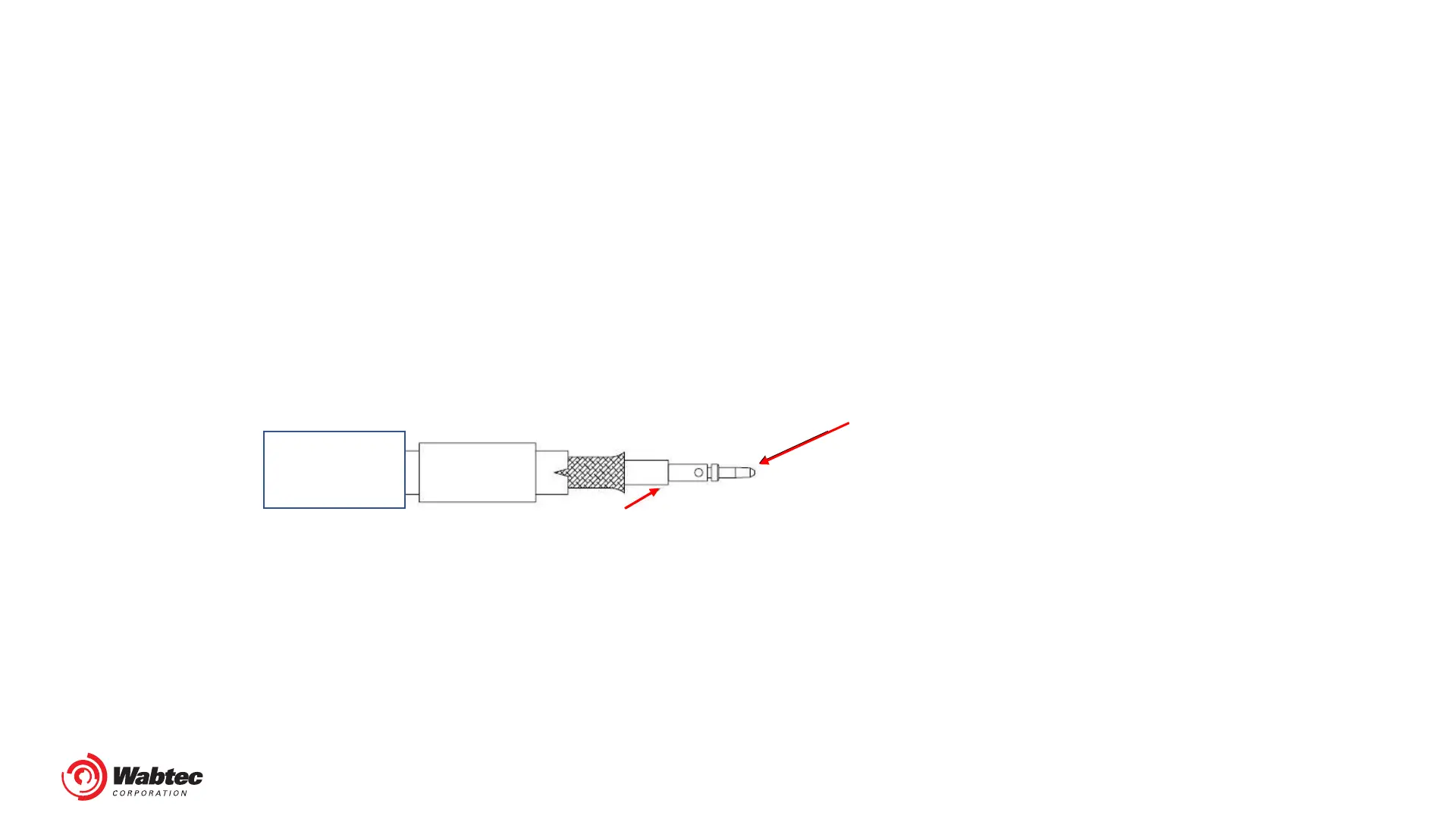

2. Slide heatshrink and outer ferrule onto cable as shown.
3. Flare slightly end of cable braid as shown to facilitate insertion of inner ferrule.
Important: Do not comb out braid.
4. Place contact on cable centre conductor so that it butts against cable dielectric. Solder
contact in place.
Outer Ferrule
Cable dielectric
Contact on Cable centre conductor
Antenna cable terminations
Heatshrink
To Next Page
