5. Install cable assembly into body assembly so that inner ferrule portion slides under
braid. Push cable assembly forward until contact snaps into place in insulator. The tip
of the centre contact should be level with the face of the connector.

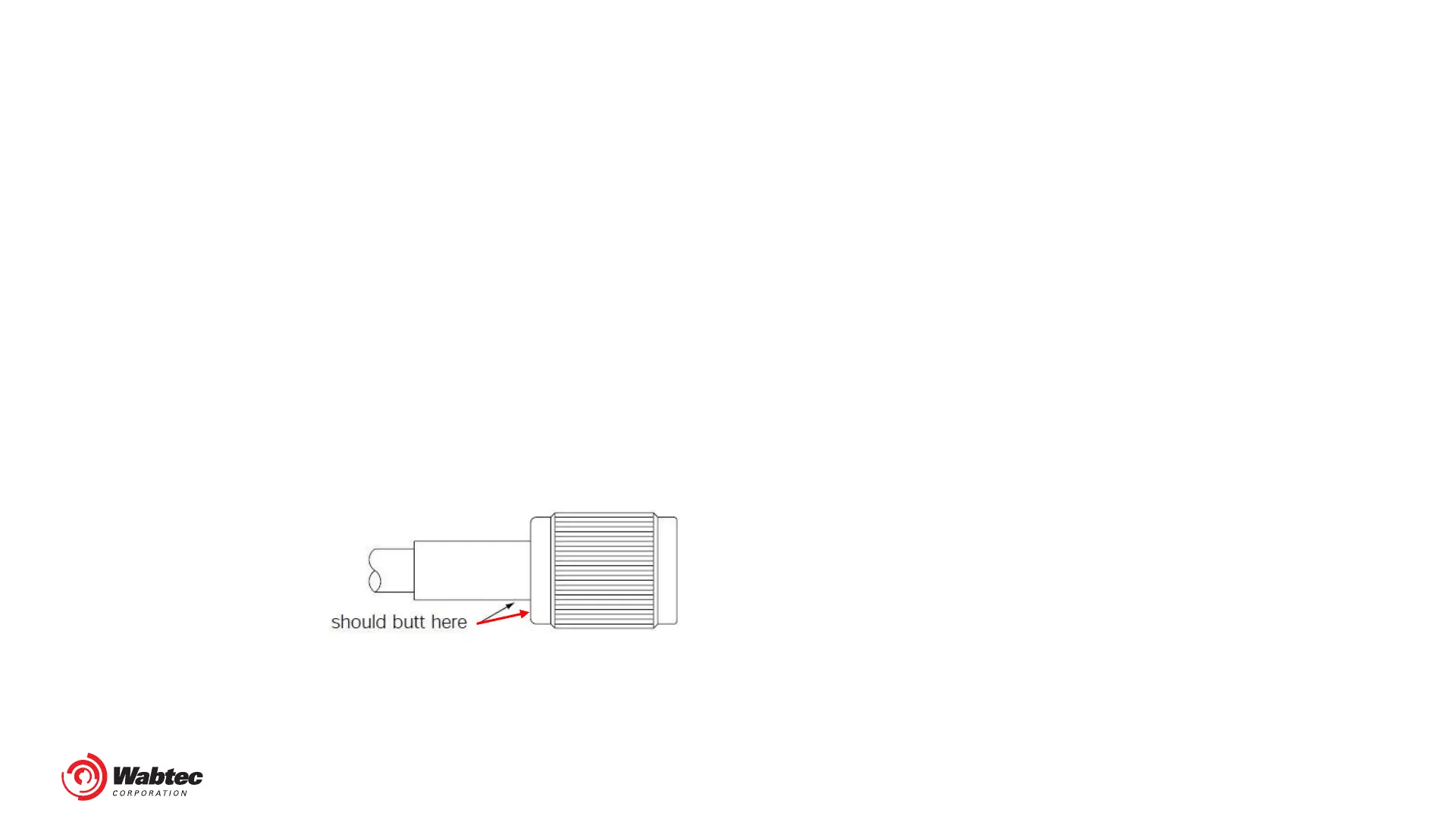

6. Slide outer ferrule over braid and up against connector body. Crimp outer ferrule using
Die Set Cavity in table above.
Antenna cable terminations
