Operation
Opening the door from the outside:
☞ Pull door handle A
Locking the door:
☞ Turn the key in door lock B to the left (L)
☞ The door is locked
Unlocking the door:
☞ Turn the key in door lock B to the right (R)
☞ The door is unlocked
Opening the door from the inside:
☞ Press the lever on the inside left on door lock C down
Securing an open door:
☞ Press the door against bracket D of arrester E with an audible click
Releasing the door opener:
☞ Pull button F to release the door from arrester E.

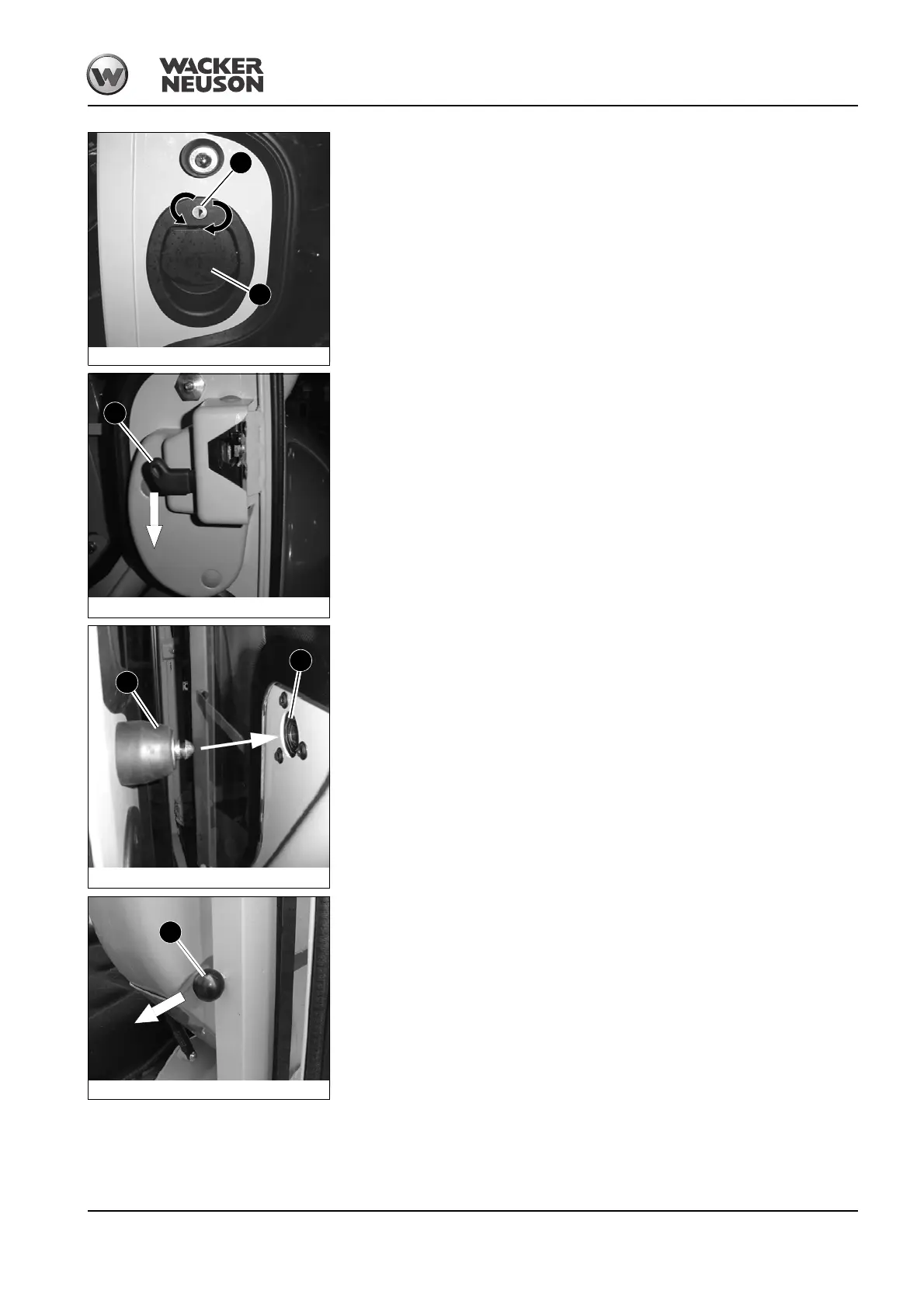

Abb. 101: Outside door opener and lock
R
L
B
A
Abb. 102: Inside door opener (left/right)
C
Abb. 103: Door arrester
D
E
Abb. 104: Releasing the door arrester
F
