Specifications
6.29 Lift capacity table 6003 counterweight (option)
All table indications in kg (lbs) and horizontal position on firm ground without bucket.
If equipped with a bucket or other attachments, lift capacity or tilt load is reduced by bucket
or attachment dead weight.
Calculation basis: according to ISO 10567
The machine’s lift capacity is restricted by the settings of the pressure limiting valves and
the hydraulic system’s stabilizing features.
Neither 75 % of the static tilt load nor 87 % of the hydraulic lift capacity is exceeded.
5.0 m (16'-5") 4.0 m (13'-1") 3.0 m (9'-10") 2.0 (78.7 in)
A
B
Lowered blade Lowered blade Lowered blade Lowered blade Lowered blade
4.0 m
(13'-1")
1310*
(2889*)
1175
(2591)
1245*
(2745*)
1245*
(2745*)
3.0 m
(9'-10")
1300*
(2867*)
935
(2062)
1265*
(2789*)
1265*
(2789*)
2.0 (78.7 in)
1320*
(2911*)
830
(1830)
1330*
(2933*)
905
(1995)
1490*
(3285*)
1265
(2789)
1885*
(4156*)
1885*
(4156*)
1.0 (39.4 in)
1360*
(2999*)
795
(1753)
1435*
(3164*)
880
(1940)
1775*
(2591*)
1205
(2657)
2615*
(5766*)
1795
(3958)
0.0 m (0 in)
1410*
(3109*)
810
(1786)
1495*
(3296*)
850
(1874)
1970*
(4333*)
1155
(2547)
2970*
(6549*)
1715
(3782)
−1.0 m
(−39.4 in)
1465*
(3230*)
895
(1973)
1965*
(4333*)
1140
(2518)(
2910*
(6417*)
1695
(3737)
5010*
(11047*)
3250
(7166)
−2.0 m
(−78.7 in)
1495*
(3296*)
1130
(2492)
2450*
(5402*)
1720
(3793)
4005*
(8831*)
3310
(7299)

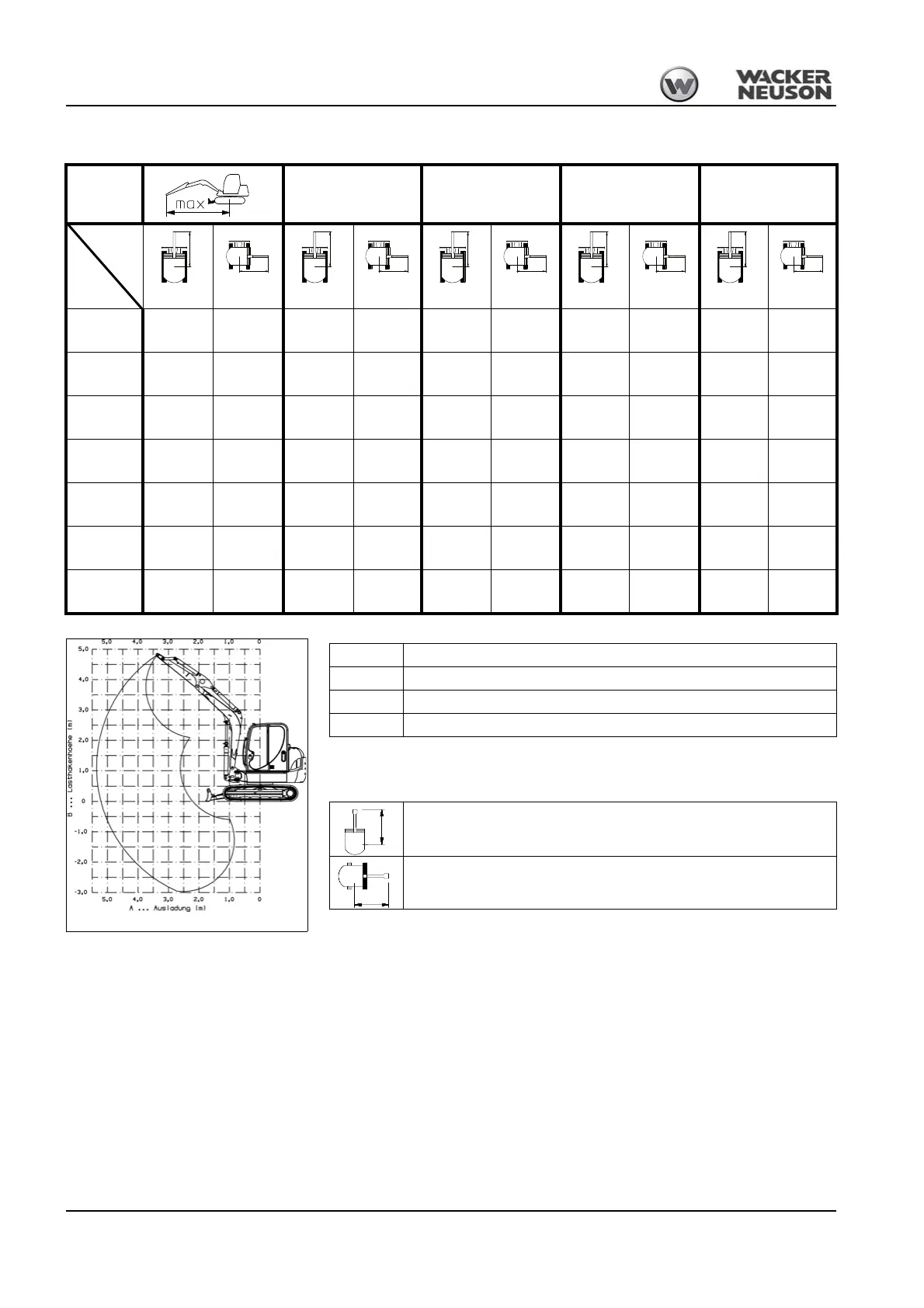

Fig. 342: Lift capacity table (model 6003)
max Admissible load on extended stick
A Reach from live ring centre
B Load hook height
* Lift capacity limited by hydraulic system
With the stabilizer blade in driving direction
Without the stabilizer blade, 90° to driving direction
