BA 50Z3/6003 en – Edition 4.3 * 5003b110.fm
1-
17
Introduction
Hydraulic quickhitch
Powertilt wi
th hydraulic quickhi
tch

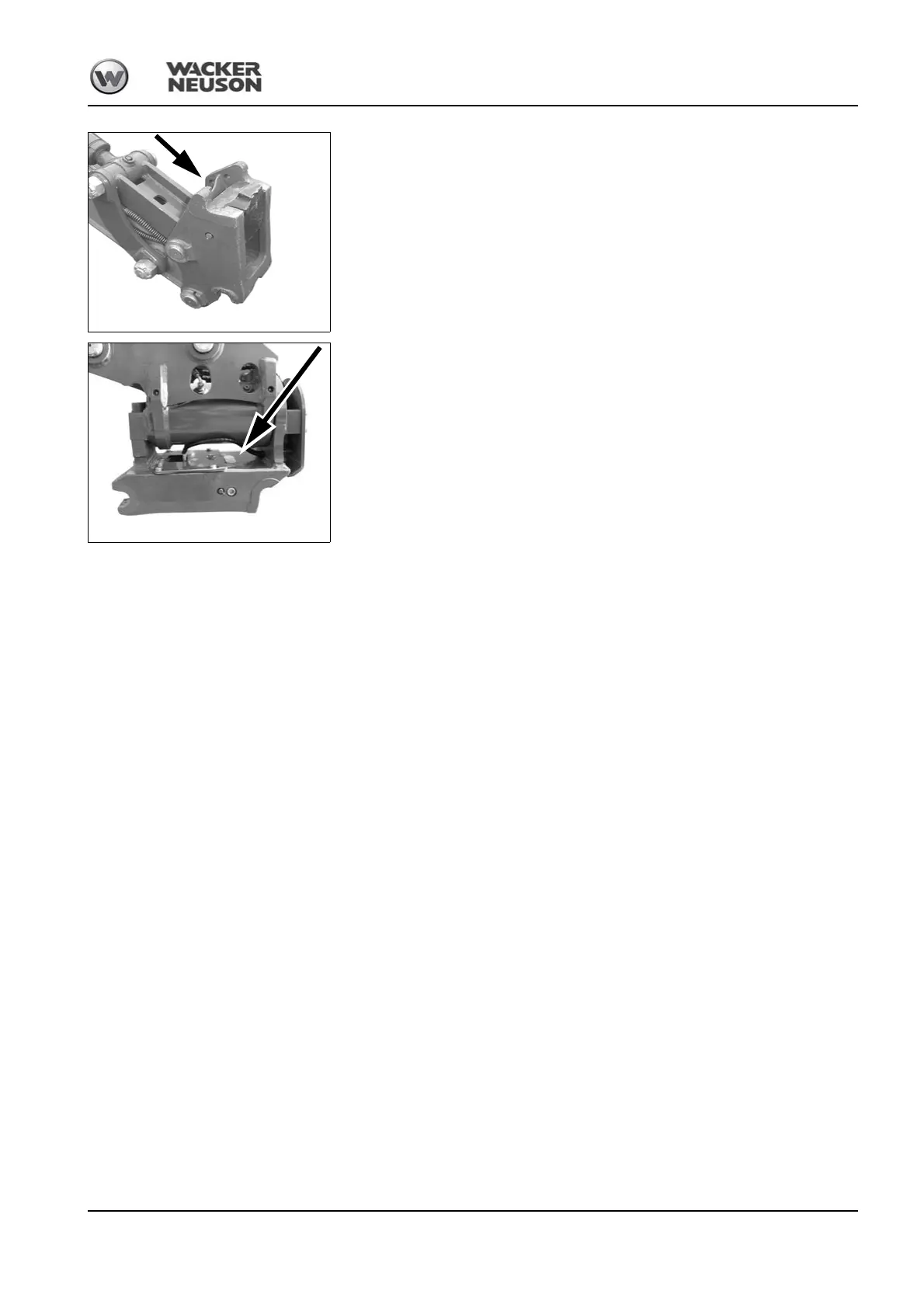

The type label is located on the rear
side of the hydraulic quickhitch fork.
Fig. 7:
T
ype label (hydraulic quickhitch)
Fig. 8:
Powertilt type label
