BA 50Z3/6003 en – Edition 4.3 * 5003b110.fm 1-19
Introduction

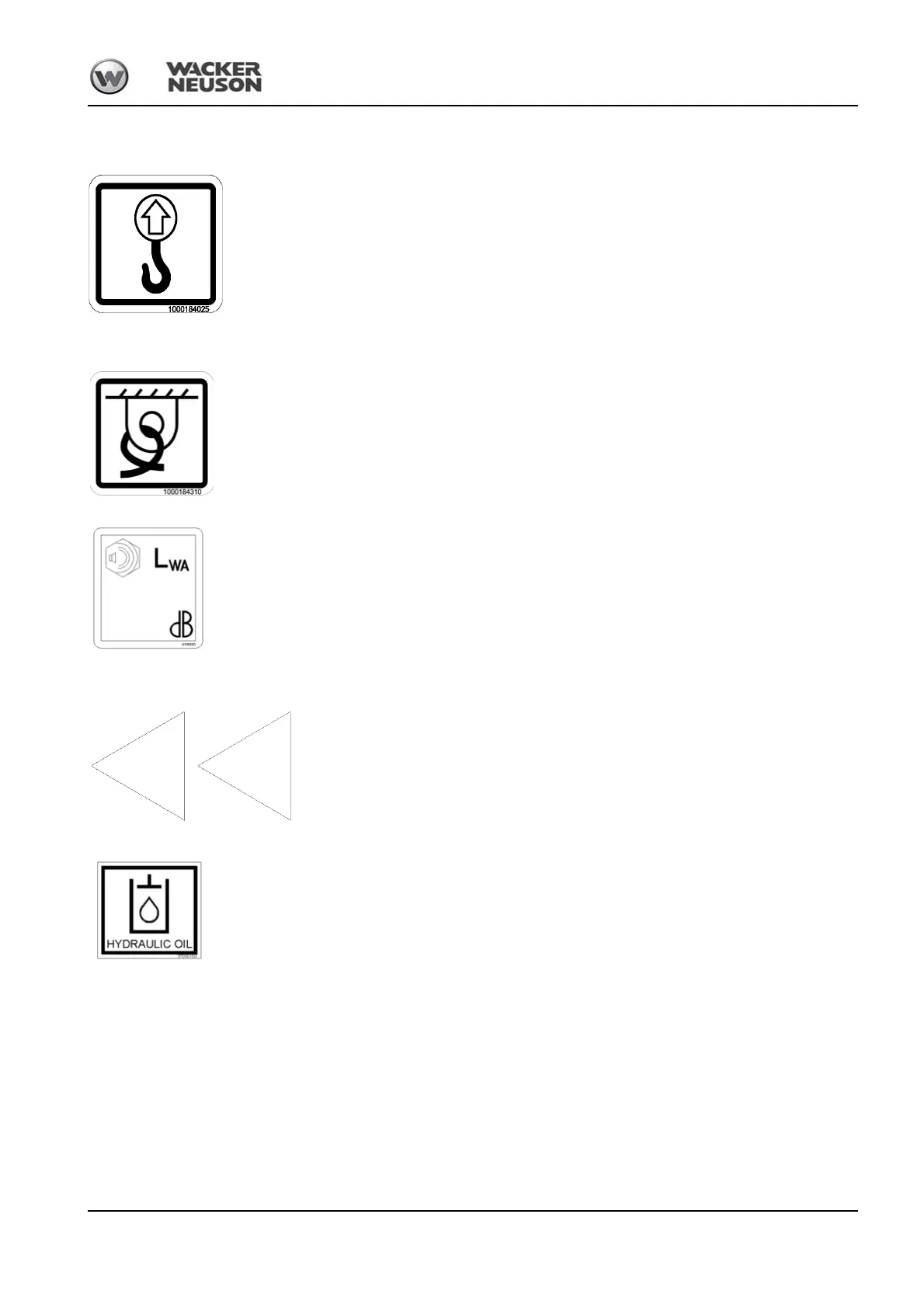

The following states signs and symbols which are not unequivocally comprehensible. They
do not contain explanatory text and are not explained in the following chapters.
Meaning
Lifting points for raising the machine.
– see chapter 3.43 Crane handling the machine on page 3-69
Location
On either side of the stabilizer blade, and on either side of the boom
Meaning
Points for tying down the machine.
– see chapter 3.45 Tying down the machine on page 3-72
Location
On either side of the stabilizer blade, and on either side of the undercarriage.
Meaning
Noise levels produced by the machine.
L
WA
= sound power level
– see chapter 6.10 Noise levels on page 6-6
Location
At the front on the chassis.
Meaning
This label shows the forward driving direction.
Location
On either side of the travel gear
Meaning
Hydraulic oil tank. Use only specified hydraulic fluids.
– see chapter 5.21 Fluids and lubricants on page 5-54
Location
On the tank cover.
Fig. 10: Slinging points for tying down the machine
Fig. 11: Noise level indication
98
Fig. 12: Direction indicator
