Engine and Upper Machine Components Repair
32 wc_tx001546gb.fm

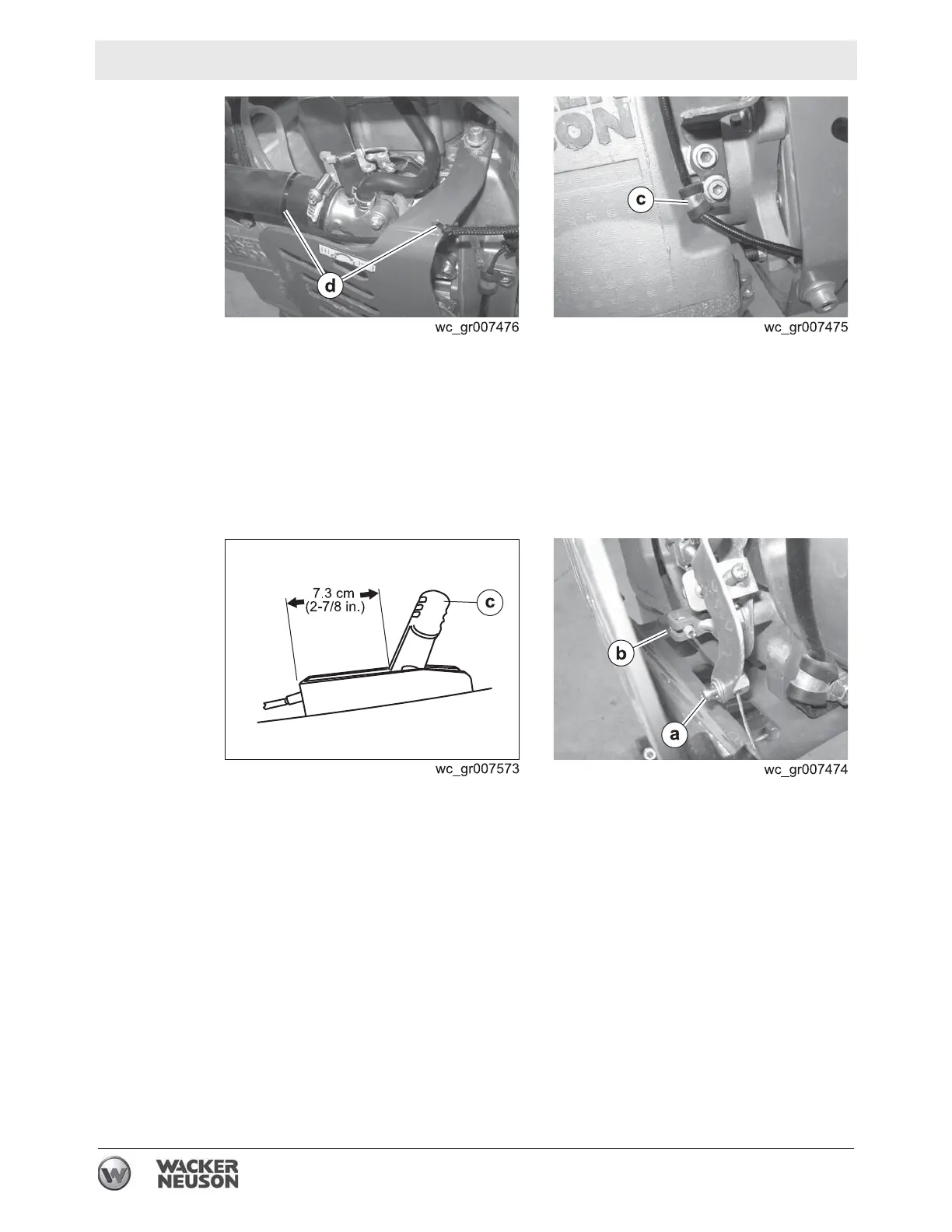

4.3.4 Install the clamp (c).
4.3.5 Connect the throttle cable to the carburetor. To do so:
e. Position the throttle control (c) 7.3 cm (2-7/8 in.) from the edge of
the control bracket.
f. Thread the throttle cable through the clamp
(b) and into the swivel
(a).
g. Pull the throttle cable taught and tighten the swivel screw.
h. Crimp the clamp
(b).
4.3.6 Reinstall the silencing cover.
Result
The replacement procedure is now complete.
