Engine and Upper Machine Components Repair
64 wc_tx001546gb.fm
Installation

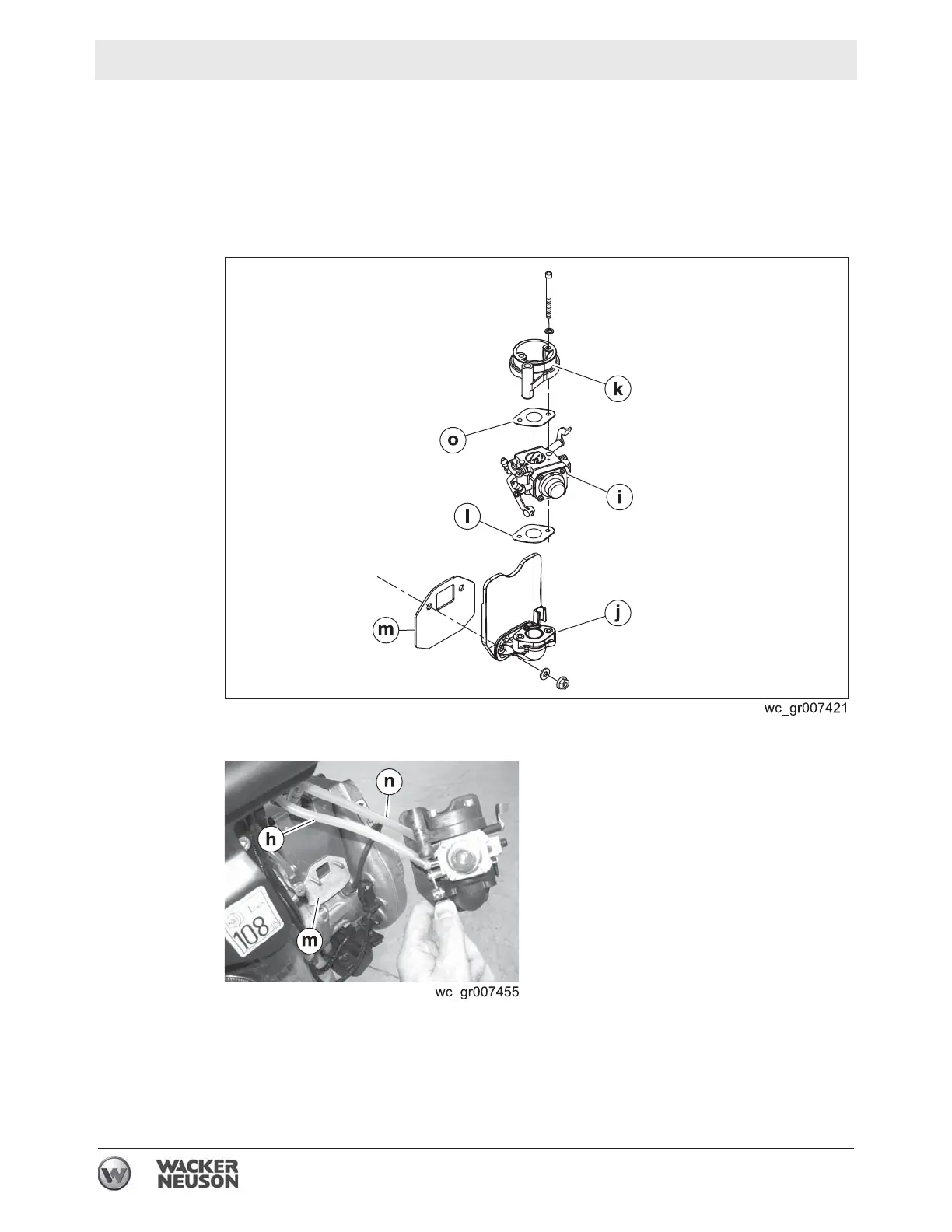

Perform the procedure below to install the carburetor
4.19.1 Assemble the adapter (j), lower gasket (l), flange (k), and upper
gasket
(o) to the carburetor (i). Note: The gaskets are not
interchangeable.
4.19.2 Connect the oil hose (h), and the fuel hose (n), to the carburetor.
4.19.3 Install the carburetor assembly to the engine.
