Repair Engine and Upper Machine Components
wc_tx001546gb.fm 67
Installation

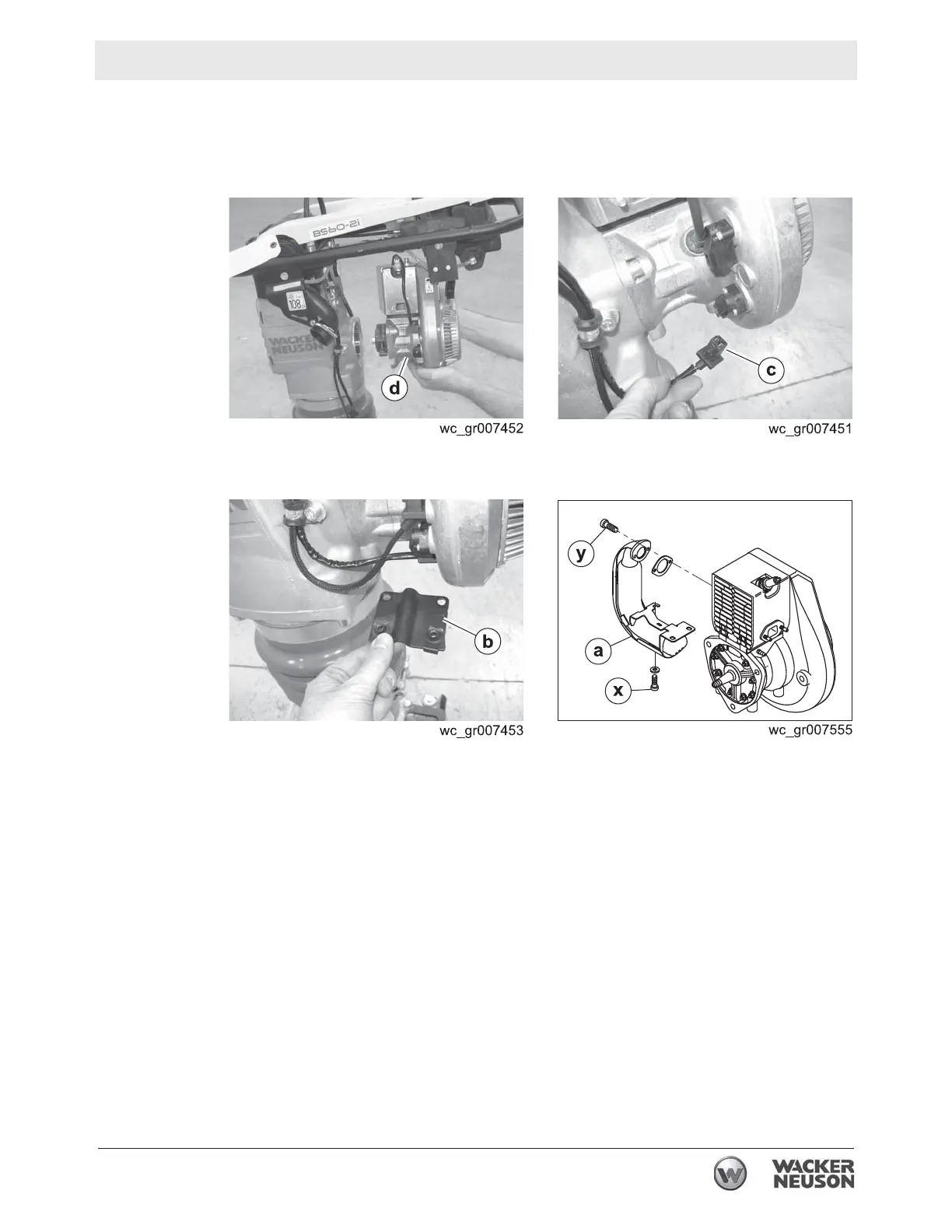

Perform the procedure below to install the engine.
4.20.1 Install the engine
(d) to the machine with three screws. Torque the
screws to 28 Nm (20 ft.lbs.).
4.20.2 Reconnect the wiring
(c) to the switches.
4.20.3 Install the bracket (b).
4.20.4 Install the muffler
(a). Torque screws (x) to 18 Nm (13 ft.lbs.). Torque
screw (y) to 23 Nm (16 ft.lbs.).
4.20.5 Install the carburetor.
Result
The engine has now been installed.
