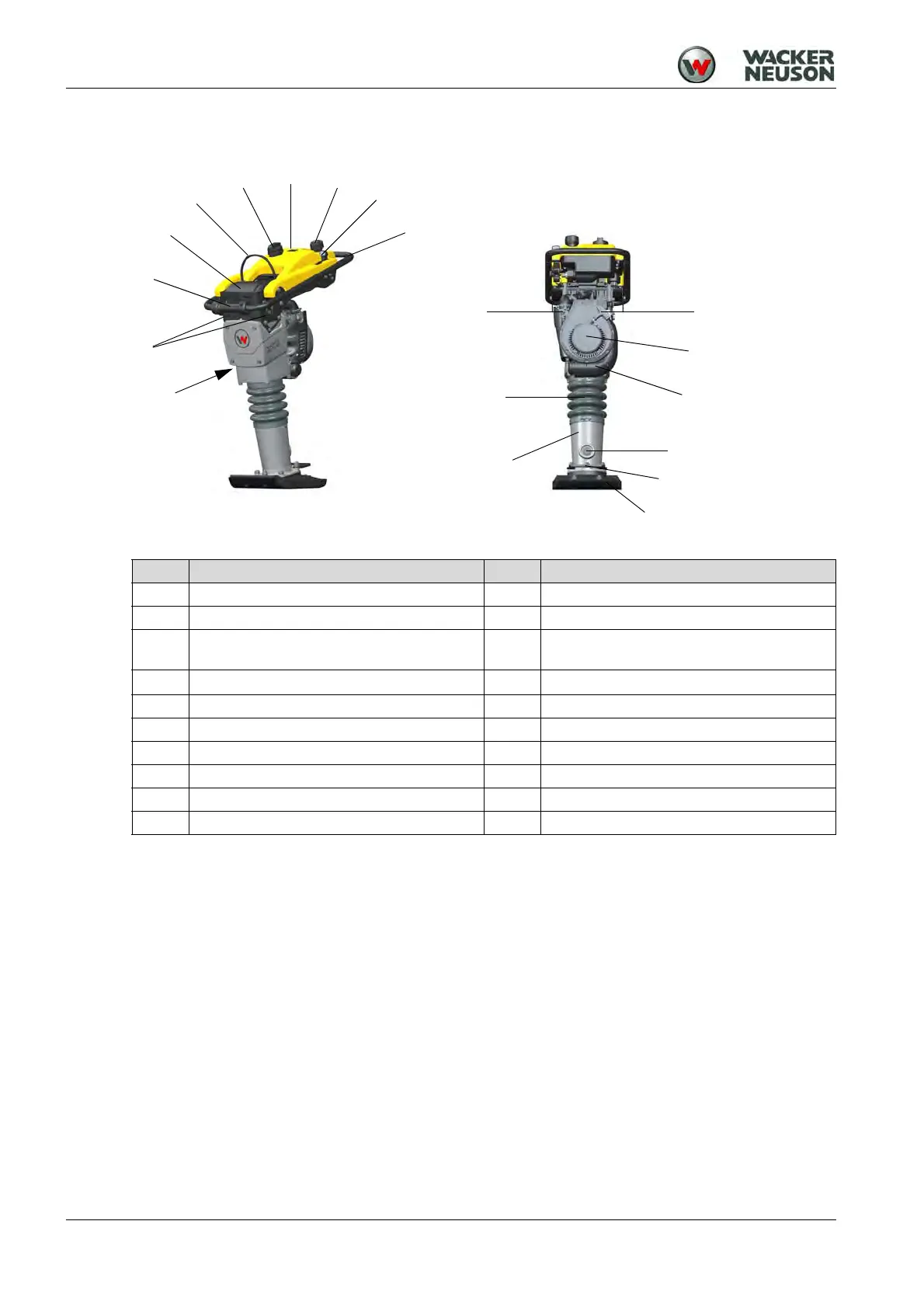

6 Components and operator's controls
18 100_0201_cp_0004.fm
6 Components and operator's controls
Item Designation Item Designation
1 Central lifting point 11 Exhaust
2 Oil tank (Versions plus) 12 Oil sight glass
3 Operating hour meter/speed display
(optional)
13 Handle
4
Fuel tank
14 Ramming shoe
5 Gas throttle lever 15 Ramming system
6 Control handle 16 Bellows
7 Choke 17 Vibration damper
8 Recoil starter 18 Roller kit
9 Purge bulb 19 Air filter system
10 Drive motor 20 Nameplate
1
2
3
4
5
6
17
18
19
20
7
8
10
11
12
13
14
15
16
