2. Loosen clamps and remove lower housing part.
3. Remove air cleaner cartridge.
4. Clean lower housing part.
5. Insert air cleaner cartridge.
6. Replace lower housing part and seal clamps.
9.4.6 Check the coolant level and top up coolant
Check the coolant level in the coolant reservoir
1. Open both protective hoods.
2. Remove dirt accumulation in the area of the coolant reservoir.
3. Check that the coolant level is between the upper and mark of the coolant reservoir.
Top up coolant in the coolant reservoir
1. Unscrew and remove cover of the coolant reservoir.
2. If necessary, top up coolant until the coolant level is between the lower and upper mark – for coolant
specification, see Technical Data chapter.
3. Replace cover of the coolant reservoir and tighten.
Check the coolant level in the radiator
1. Remove dirt accumulation in the area of the radiator cover.
2. Slowly unscrew the radiator cap and remove.
3. Check whether the coolant reaches the upper edge of the filler opening.
Top up coolant in the radiator
1. If necessary, top up coolant to the upper edge of the filler opening – for coolant specification, see
Technical Data chapter.
2. Replace radiator cap and tighten.

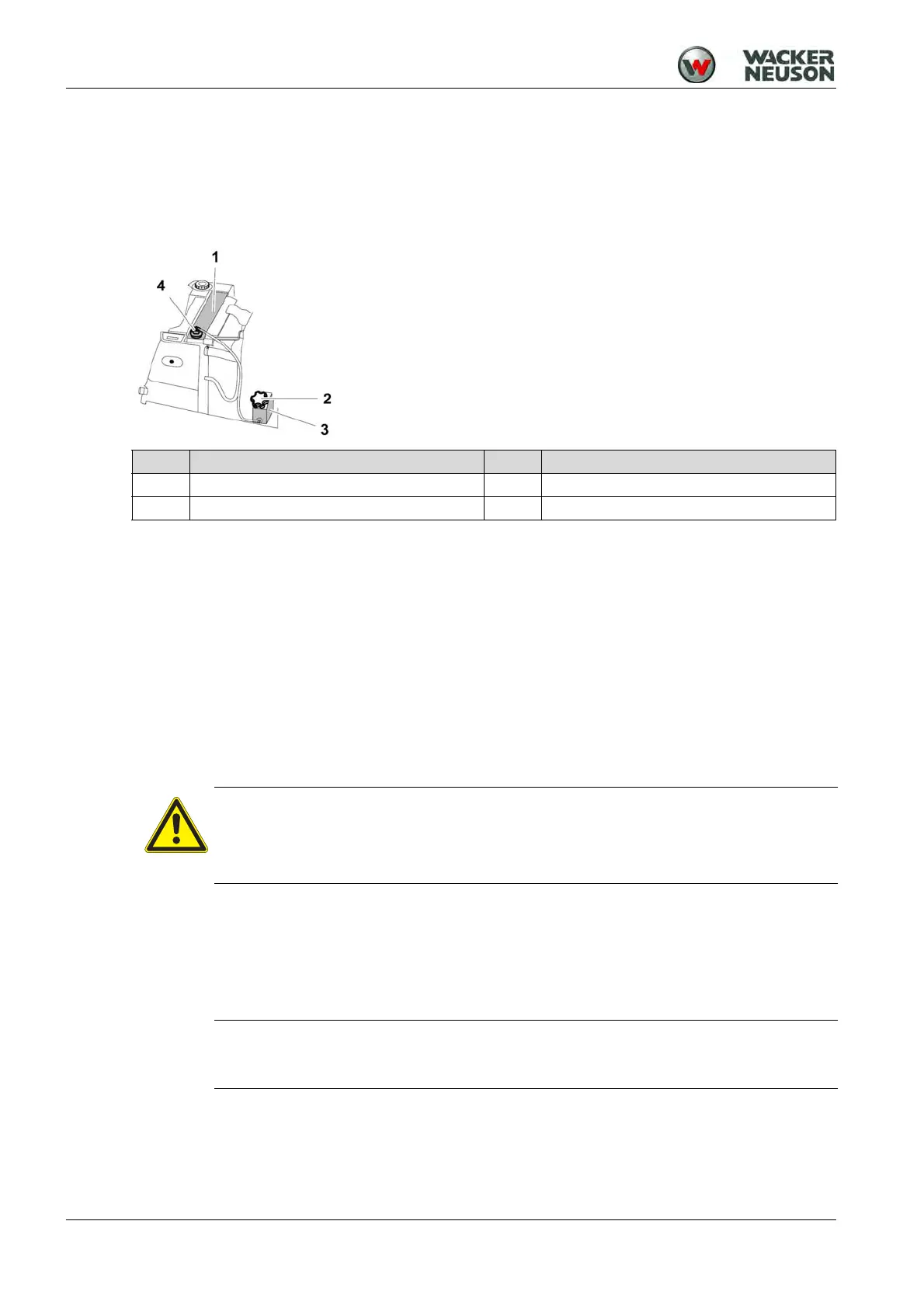

Item Designation Item Designation
1 Radiator 3 Coolant reservoir
2 Cover of the coolant reservoir 4 Radiator cap
WARNING
The cooling system is under pressure.
Hot coolant can spurt out and cause injury from scalding.
Only open the cover of the radiator after the engine has cooled down.
NOTE
If the machine is losing coolant, check the cooling system for leaks, and have the machine
repaired by the service of the Wacker Neuson contact person.
