Repair Engine and Upper Machine Components
wc_tx001546gb.fm 31
4.3.6 Remove the throttle lever (c) from the machine.
Result
The removal procedure is now complete.
Installation
Perform the procedure below to install the throttle control.

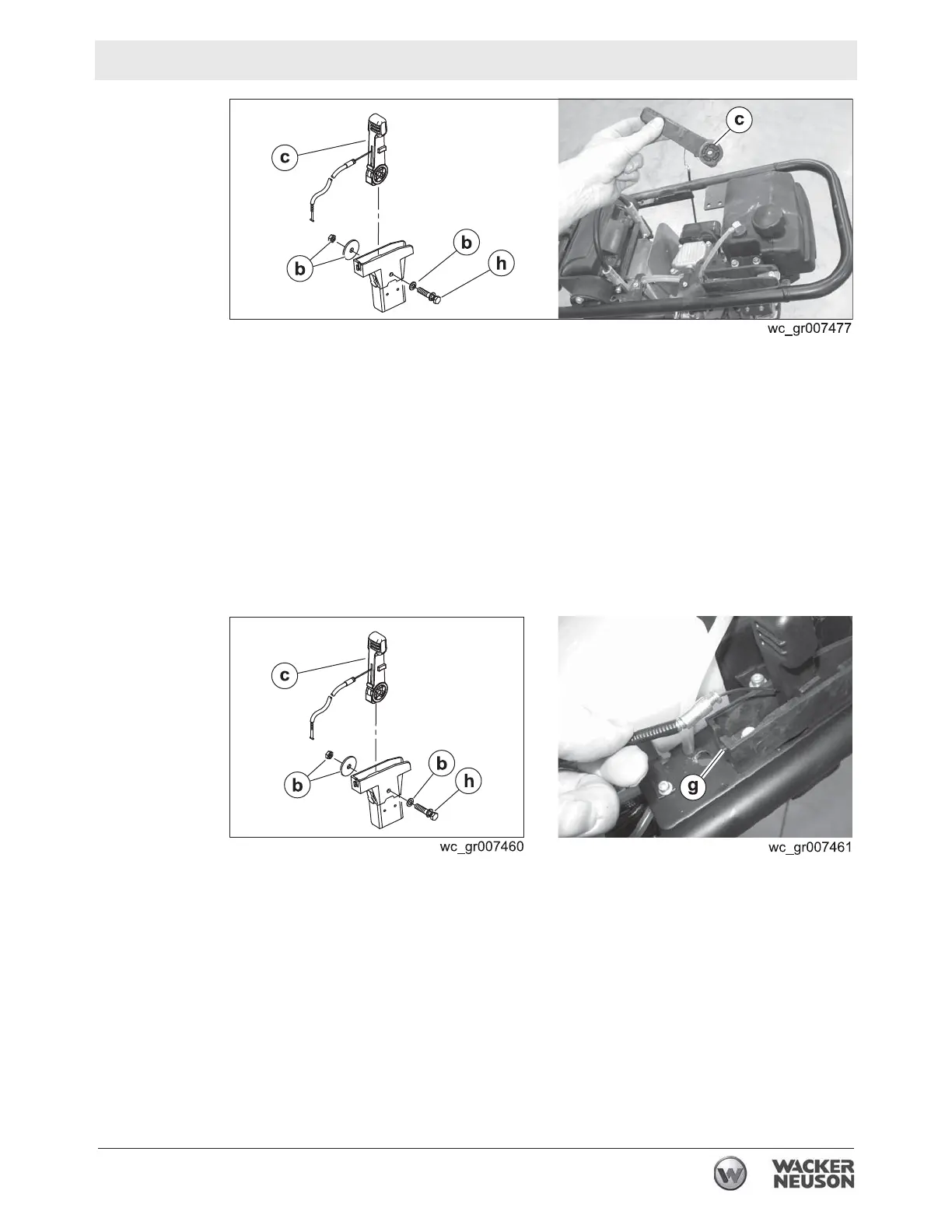

4.3.1 Connect the throttle lever (c) to the machine with bolt (h) and
hardware (b). Adjust the nut on the throttle control lever so that the
lever moves freely but still holds its position while the rammer is
operating. The recommended torque value is 2.9 Nm (2.1 ft.lbs.).
4.3.2 Connect the throttle cable to the machine at point
(g).
4.3.3 Support the throttle cable with new wire ties
(d).
