Repair Engine and Upper Machine Components
wc_tx001546gb.fm 63
Continued from the previous page.

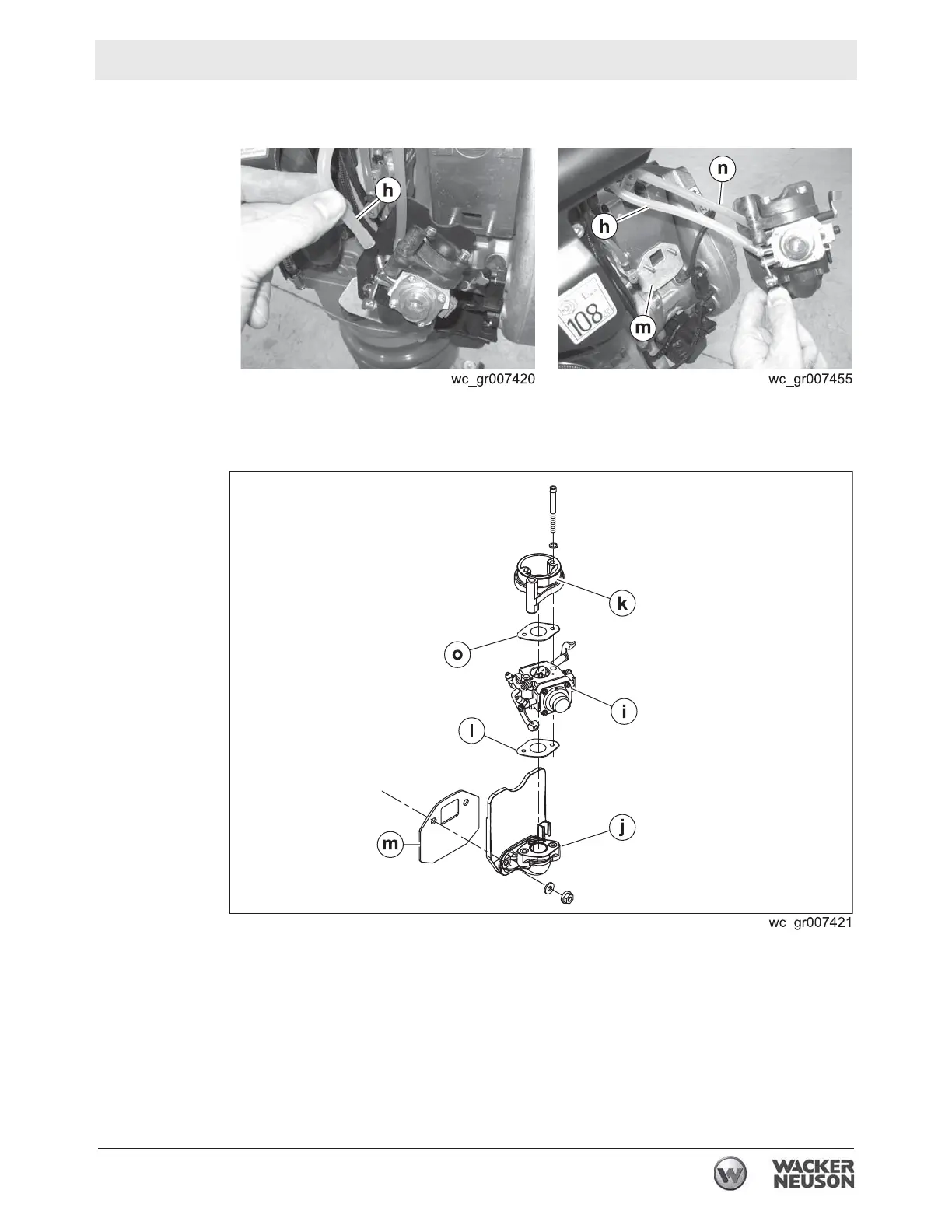

4.19.7 Have a container ready, then remove the oil hose (h) and drain it.
4.19.8 Make sure the throttle is in the OFF position. This position also closes
the fuel valve. Then, remove the fuel hose
(n) and drain it.
4.19.9 Remove the gasket
(m).
4.19.10 Disassemble the carburetor
(i) from the adapter (j), flange (k), and
gaskets
(l and o).
Result
The removal procedure is now complete.
