Wacker Neuson DS 70 User Manual

Rammer Repair Ramming System
wc_tx001547gb.fm 93

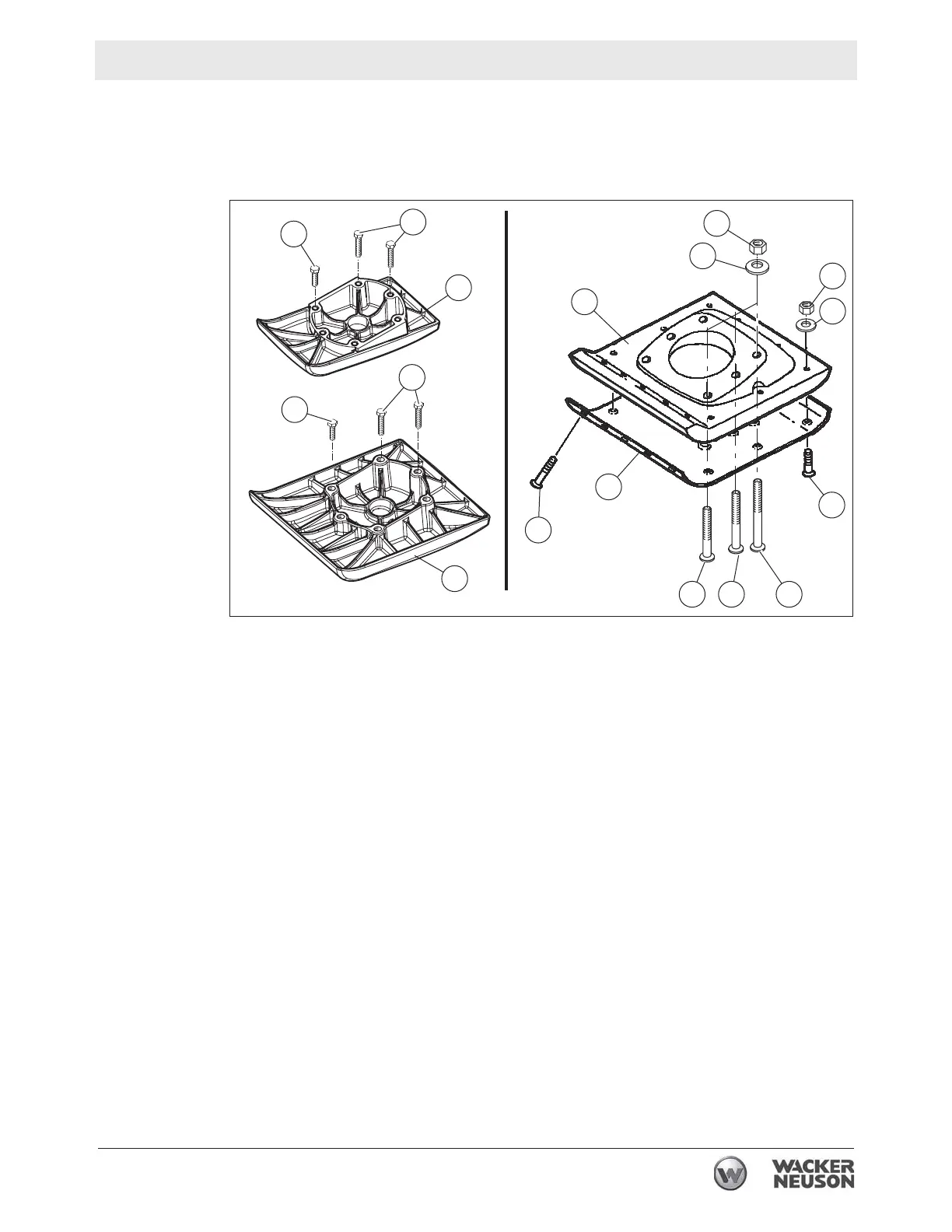

Installation
Follow the guidelines below when installing the shoes.
5.2.7 The plow bolts (m, n, and o) and (l and j) as well as hex bolts (a and b)
have different lengths. Use the longer of the bolts where needed.
5.2.8 When reusing bolts, clean the threads thoroughly before use.
5.2.9 Be sure notches of plow bolts seat in grooves of shoe.
5.2.10 Torques: (Recheck torques after first five hours of use.)
 hex bolt (a): 85.5 Nm (63 ft.lbs.)
 lock nuts (e): 79 Nm (58 ft.lbs.)
 lock nuts (l): 24 Nm (18 ft.lbs.)
wc_gr007519
a
d
e
k
l
f
g
i
j
c
c
b
a
b
m n o

Wacker Neuson DS 70 Specifications

General

Brand	Wacker Neuson
Model	DS 70
Category	Vibratory rammers & tampers
Language	English
