Putting into operation 4
Connections
1. Move vehicle Y close to machine X so that the length of the battery
jumper cables is sufficient.
2. Let the engine of vehicle Y run.
3. Unlock cover E and open.
4. Remove cover from positive terminal A.
5. Connect the battery jumper cables in the following order: A – B – C –
D.
6. Wait five minutes for the empty battery to be charged a little.
7. Start the engine of machine X.
8. Disconnect the battery jump cables in the following sequence: D-C-B-
A.

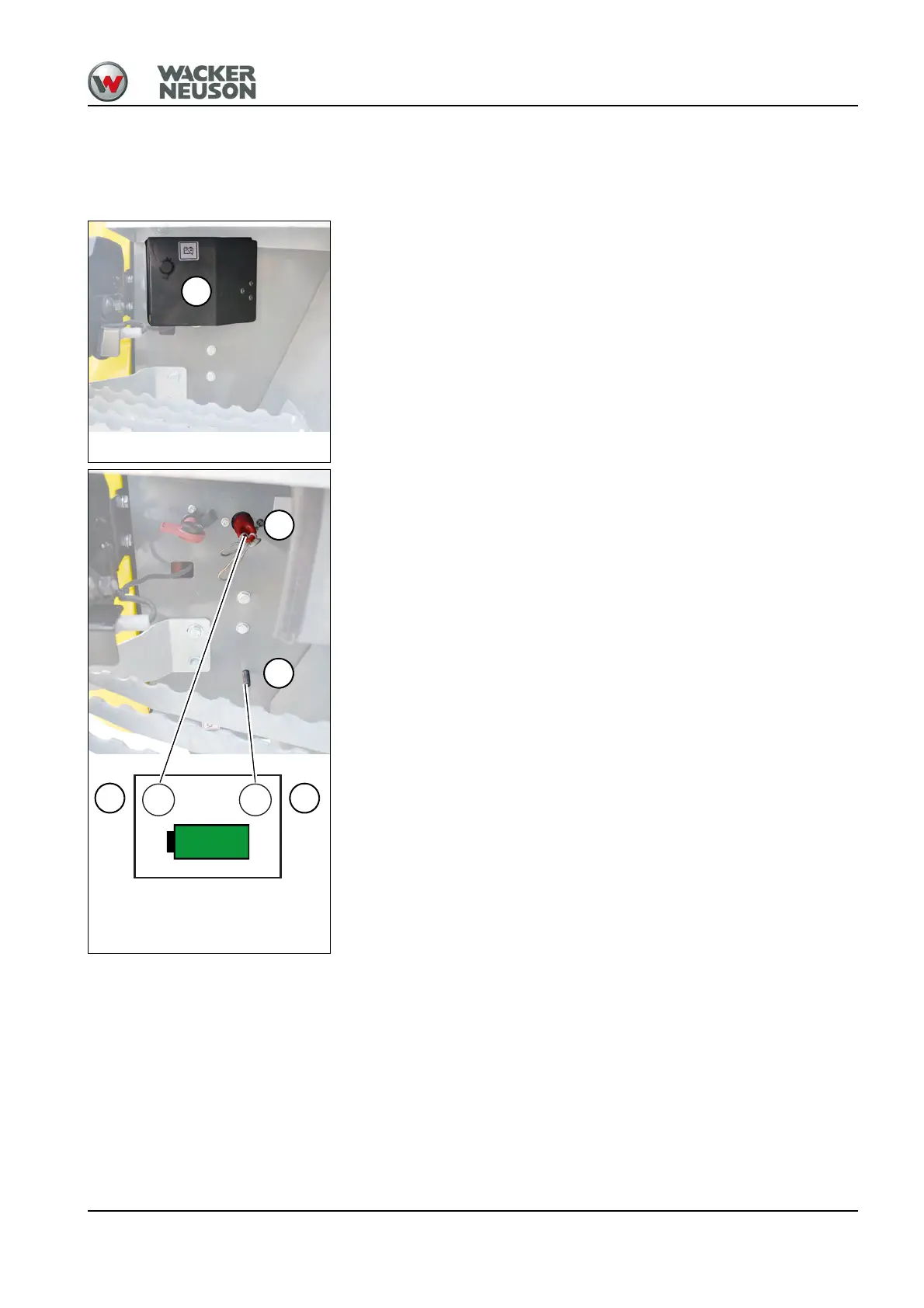

Fig. 95 (symbolic representation)
Starting
battery
D
A
B C
