5 Operation

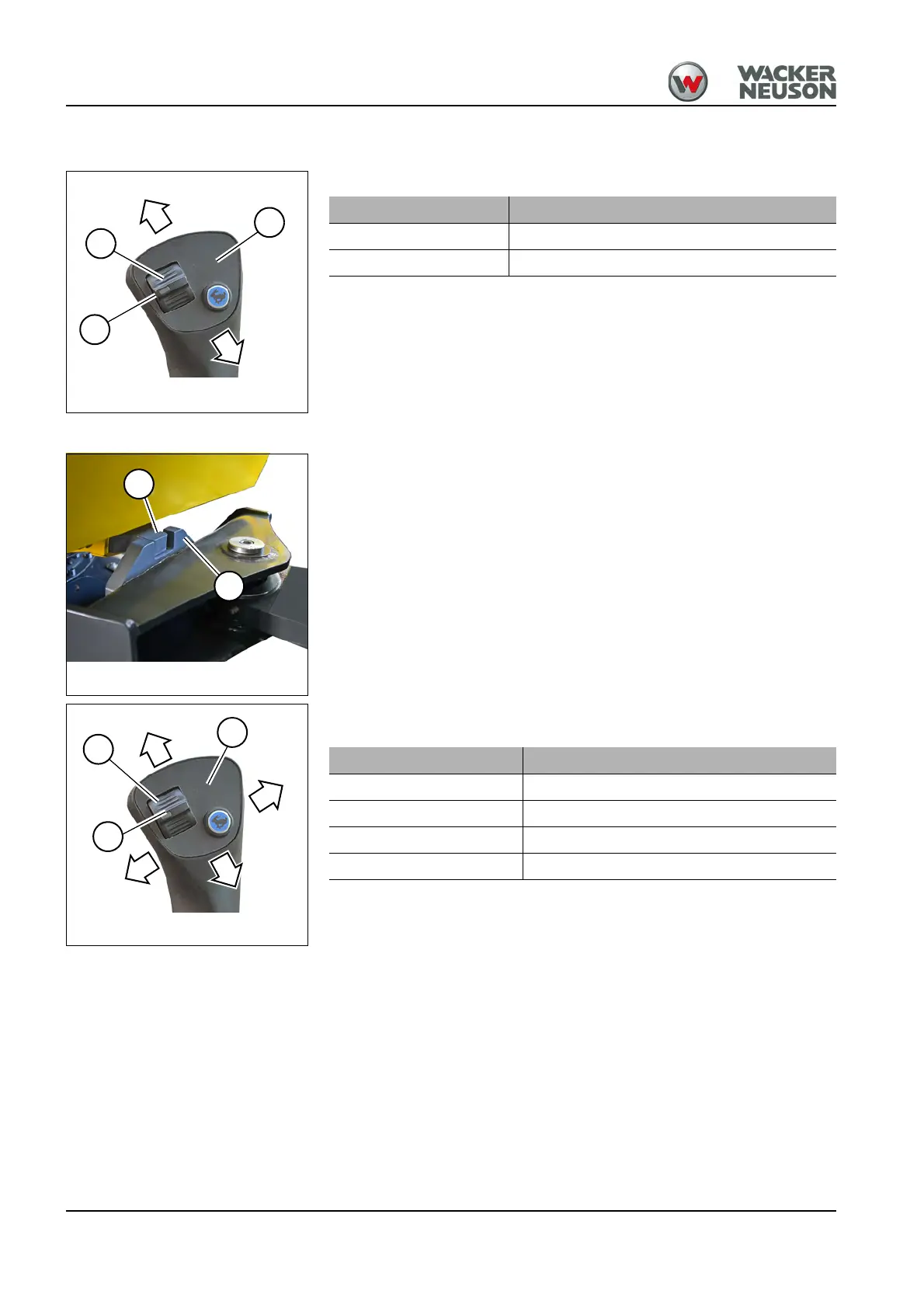

Front skip operation
Bring slide switch B into neutral position N.
Swivel skip operation
In order to turn the skip, raise it with control lever A until lock C is raised
from guide D.
Bring slide switch B into neutral position N. Lower the skip only in the
straight position to avoid damage to the lock.
Fig. 130
Fig. 130
A
B
N
Function Operation
Tilt out the skip Press control lever A forward
Lower the skip Pull control lever A backward
Fig. 131
D
C
Fig. 132
B
A
N
Function Operation
Tilt out the skip Press control lever A forward
Lower the skip Pull control lever A backward
Skip is turned to the left Push control lever A to the left
Skip is turned to the right Push control lever A to the right
