Maintenance 7
Lubrication plan
Lubricate the specified lubrication points once a day. Before starting
maintenance, lower the red maintenance prop when the skip is raised and
secure the skip with it.

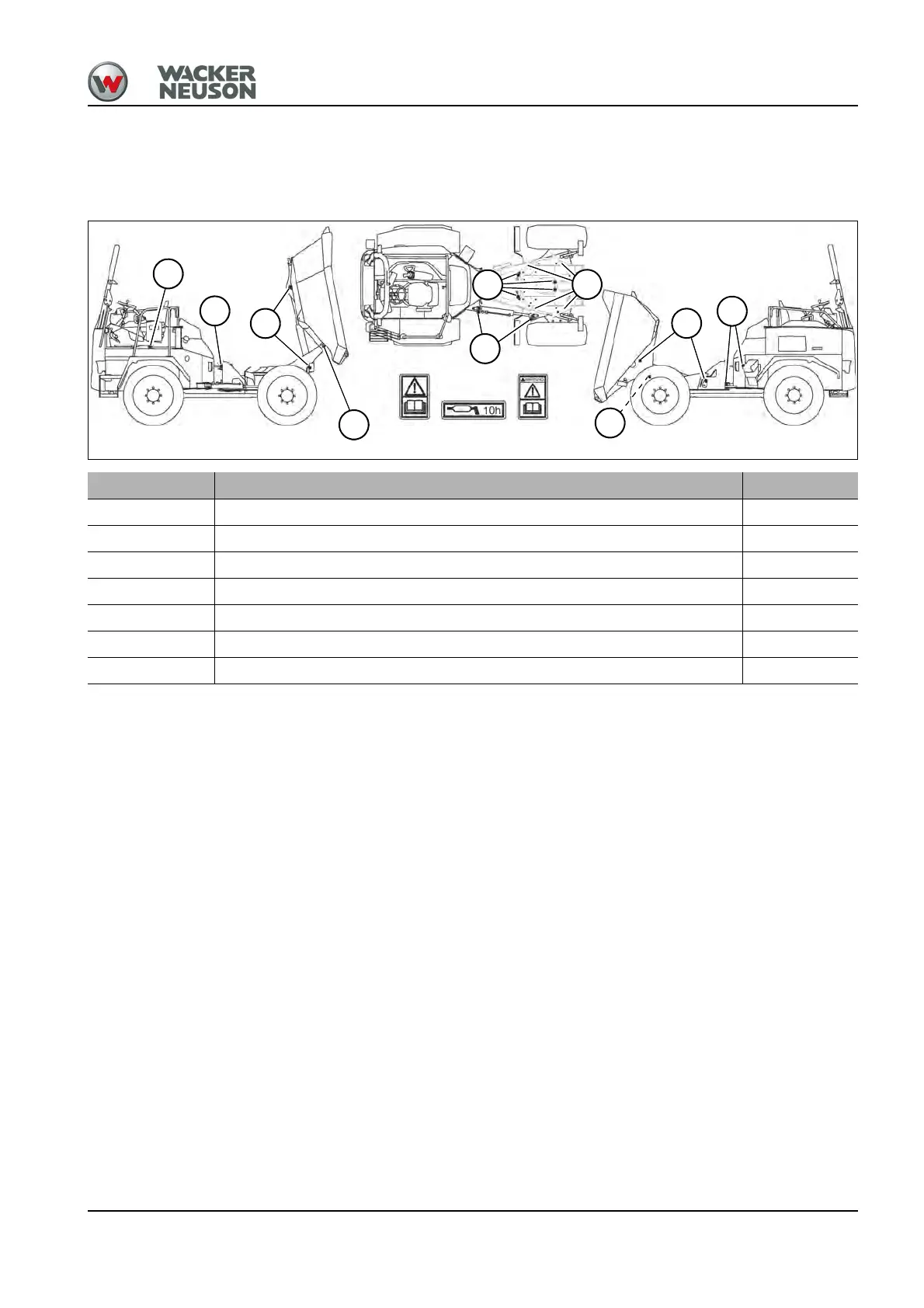

Fig. 158
3
6
1
5
1
4
2
7
3
4
Position Lubrication point Quantity
1 Articulation 3
2
Steering cylinder 2
3
Tilt cylinder 2
4
Skip 2
5
Seat console 1
6
Swiveling cylinder
1
4
7
Live ring
1
4
1. Option for swivel skip
