BA D24 en/us* 1.0 * D24_1_0_710.fm 7-29
Maintenance 7
Possible damage to hydraulic system due to dirty hydraulic oil.
► Always add hydraulic oil using the filling screen.
► Cloudy hydraulic oil in the sight glass is a sign of water or air in the
hydraulic system. Contact a Wacker Neuson service center.
► Contact an authorized service center if the filter of the hydraulic system
is dirty.
Release the pressure in the hydraulic system
Operate the control lever repeatedly to release the pressure in the
hydraulic system.
Checking the hydraulic oil level
1. Stop and park the vehicle. Stop the engine – see "Preparing
lubrication" on page 7-6.
2. Lower the skip.
3. Release the pressure in the hydraulic system.
4. Remove the starting key and carry it with you.

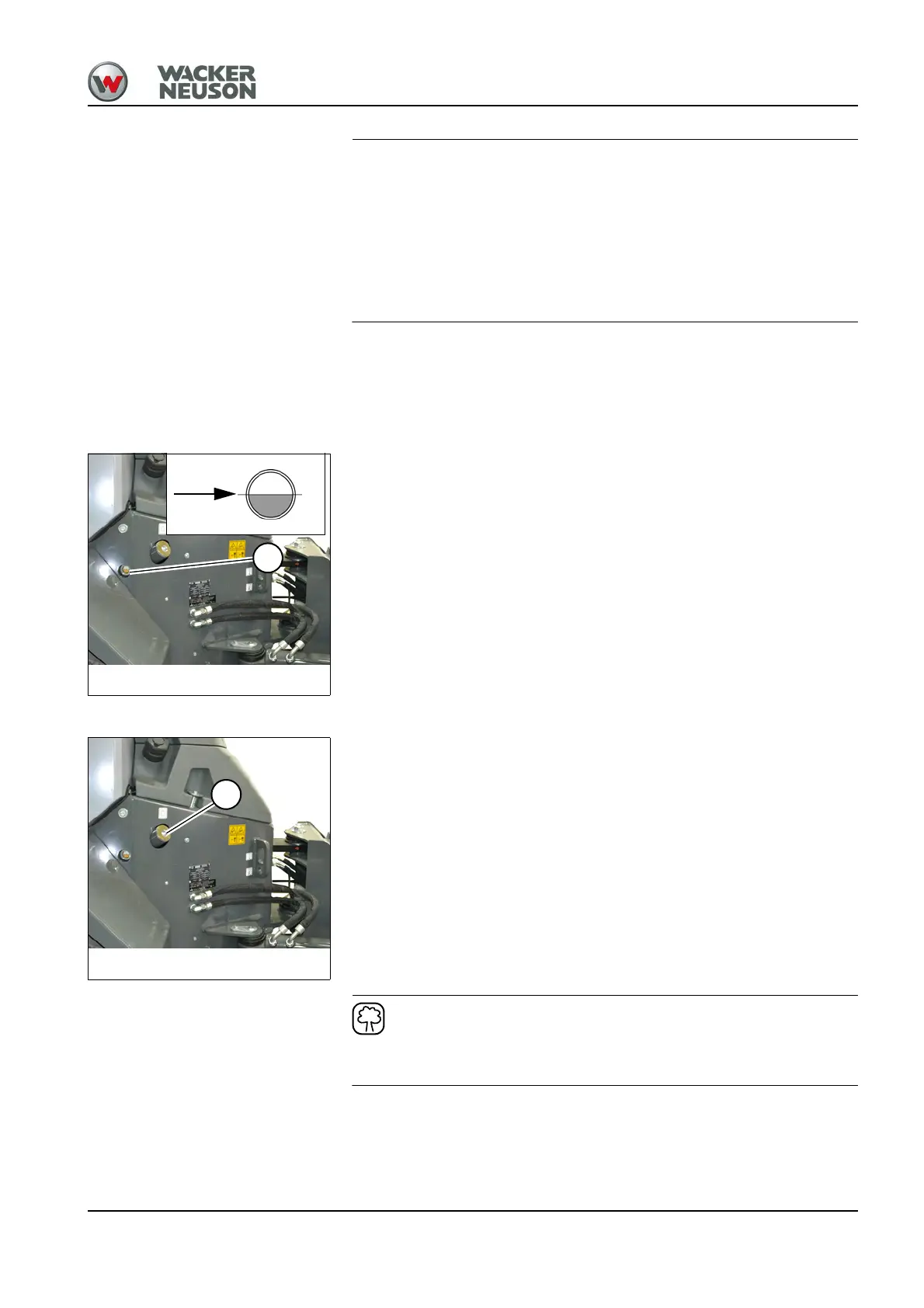

5. Sight glass A is located at the rear left.
6. Check the oil level on sight glass A.
➥ If the engine is warm, the oil level must be approximately at the
middle of sight glass A.
Add hydraulic oil if the oil level is below this mark.
Adding hydraulic oil
The filler opening of the hydraulic oil reservoir is located behind the
maintenance flap on the left.
1. Stop and park the vehicle. Stop the engine – see "Preparing
lubrication" on page 7-6.
2. Release the pressure in the hydraulic system.
3. Clean the area around the filler opening of the hydraulic oil with a lint-
free cloth.
4. Open the cover B of the fill opening for the hydraulic oil slowly to
release the pressure inside the hydraulic oil tank.
5. Add hydraulic oil until the oil level is approximately in the middle of the
sight glass.
6. Put cover B into place and screw it on tightly.
Use a suitable container to collect fluids and lubricants as they flow out
and dispose of them in an environmentally friendly manner.
