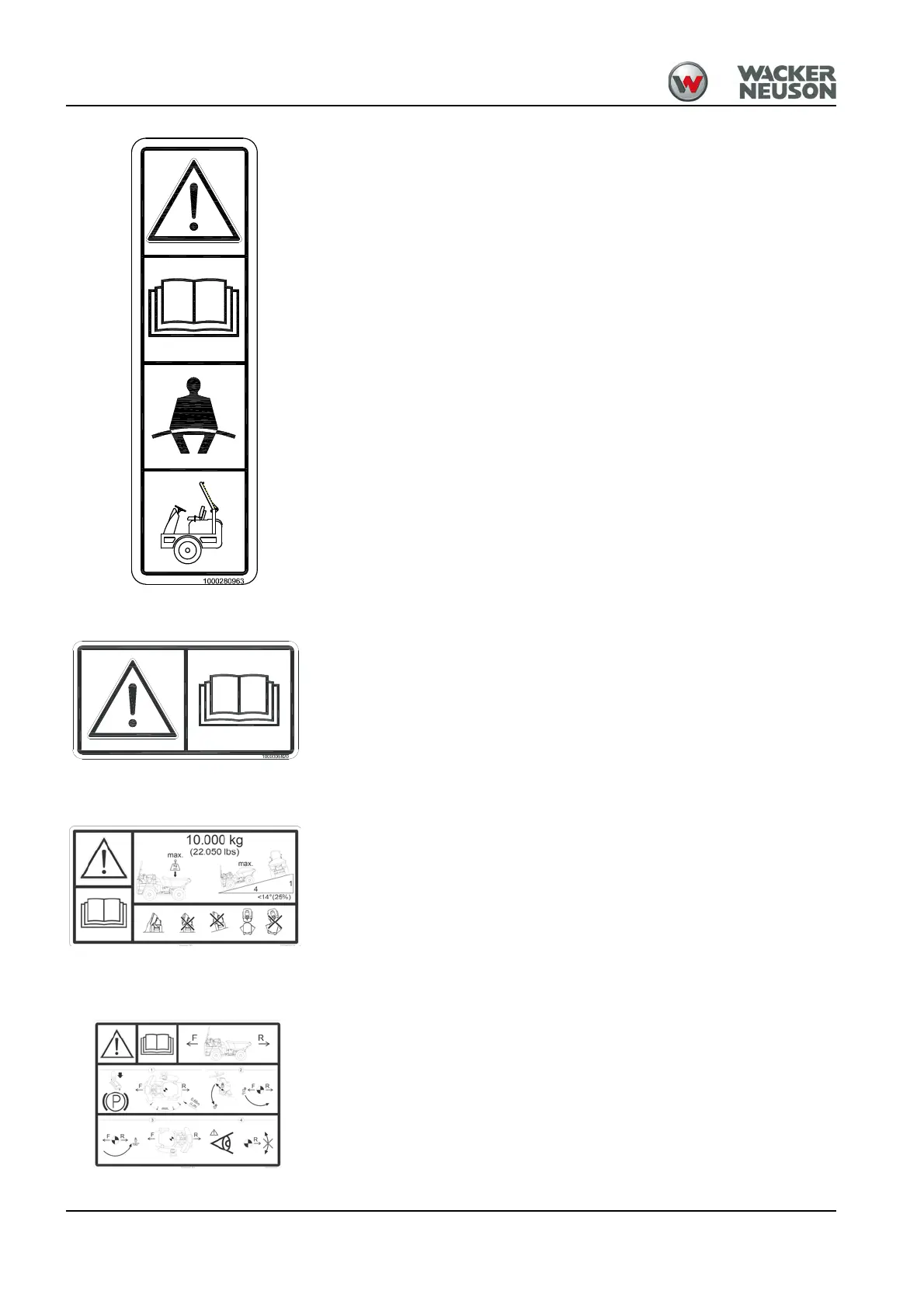

3-10 BA D24 en/us* 1.0 * D24_1_0_300.fm
3 Introduction
Meaning
Vehicle operation is only allowed if the rollbar is raised and locked, and if
the seat belt is fastened.
Position
On the B pillar (cabin) or on the ROPS bar on the right.
Meaning
Trailer coupling
Position
On the vehicle rear on the left.
Meaning
This label shows the following information/regulations:
Maximum payload of machine.
Tilt out only in straight machine position.
Maximum permissible angle of inclination during machine travel across
a slope.
Do not tilt out the skip if material is stuck in the skip.
Position
At the rear of the skip.
Meaning
This label displays the seat console operation.
Position
Near the seat.
Fig. 17
Fig. 18
Fig. 19 Symbolic representation
Fig. 20 Symbolic representation
