4-6
BA
D24
en/us*
1.0
*
D24_1_0_400.fm
4
Putting into operation

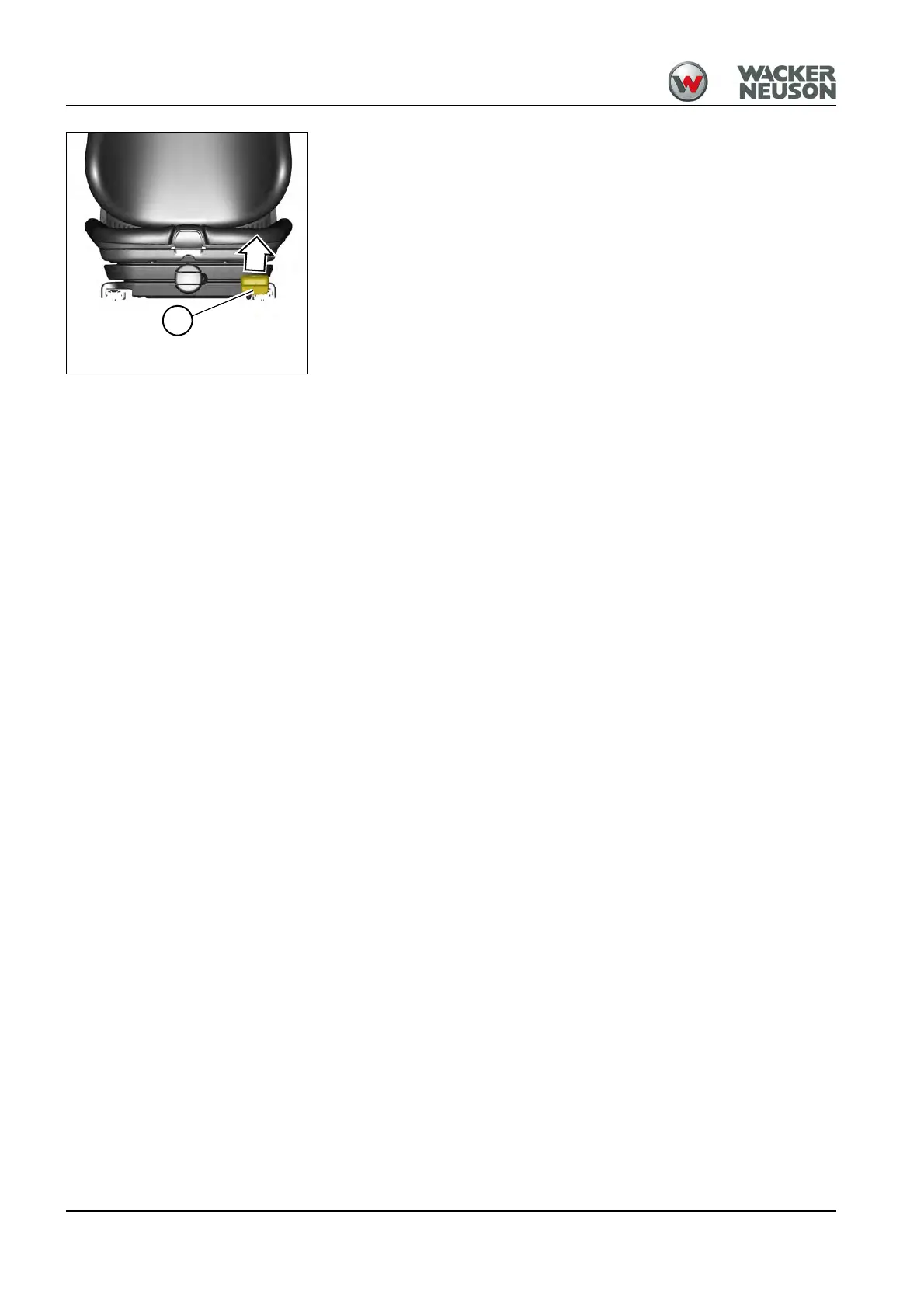

Set in lengthwise direction
1.
Sit down on the operator seat.
2.
Pull lever
C
upward and at the same time l
ock the seat in the require
d
position.
3.
Release the lever
C
.
Fig. 67 Set in le
ngthwise direction
C
67
69
