Wacker Neuson DV100 User Manual

BA D24 en/us* 1.0 * D24_1_0_400.fm 4-17
Putting into operation 4

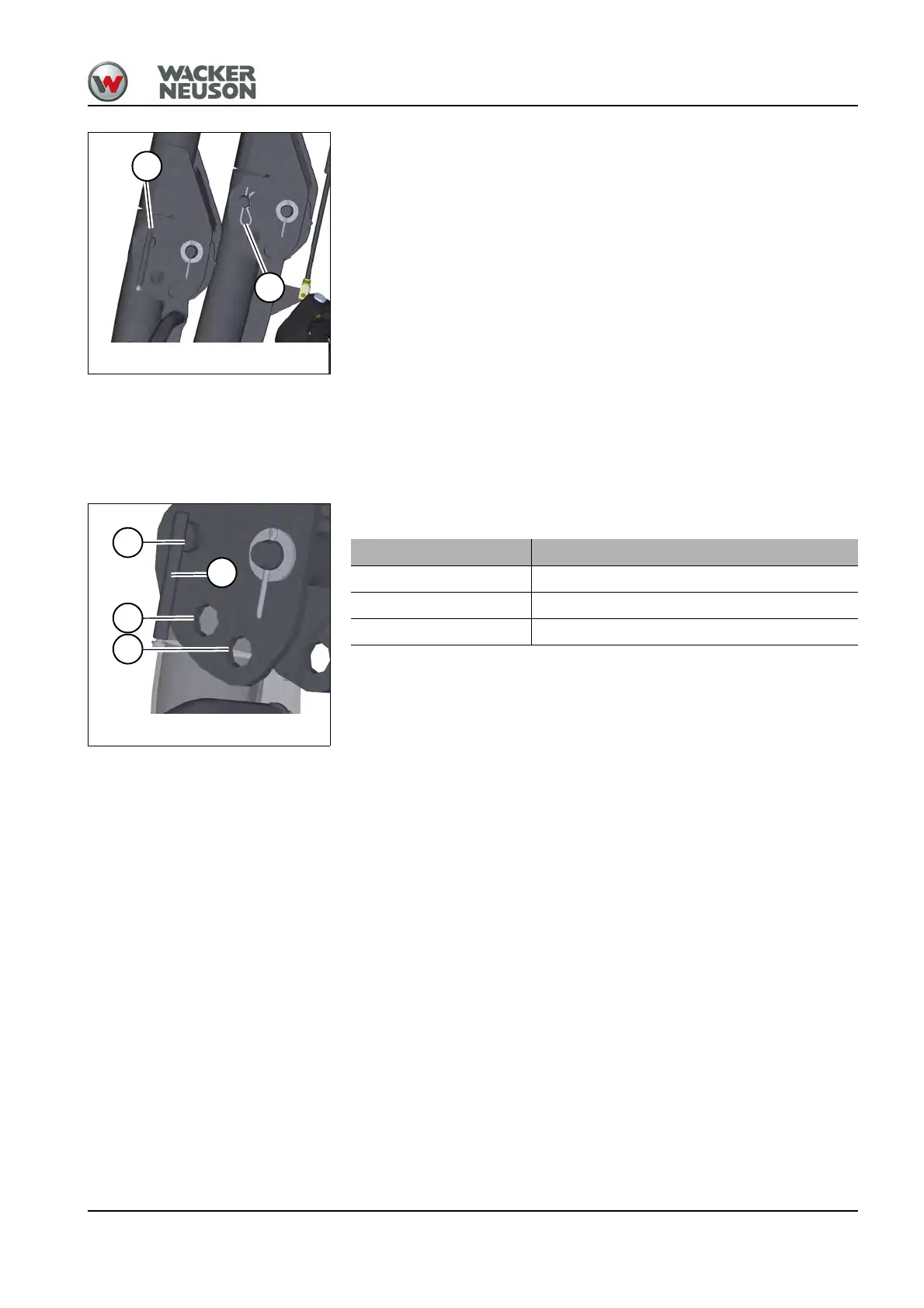

Lowering the rollbar
1. Park the machine on level ground.
2. Remove safety pin B.
3. Remove lock pin C.
4. Slowly fold down the rollbar A.
5. Affix the safety bolt C in the desired position.
6. Secure with safety pin B.
Raising the rollbar
1. Park the machine on level ground.
2. Remove safety pin B.
3. Remove safety bolt C.
4. Raise the rollbar A.
5. Affix the lock pin C in the desired position.
6. Secure with safety pin B.
Position the rollbar
Fig. 77 Lowering the rollbar
B
C
Fig. 78 Raising the rollbar
1
2
3
C
ROPS bar Position
Raise Affix the safety bolt C in position (1).
Folded (49°) Affix the safety bolt C in position (2).
fold down (78°) Affix the safety bolt C in position (3).
