Control stand

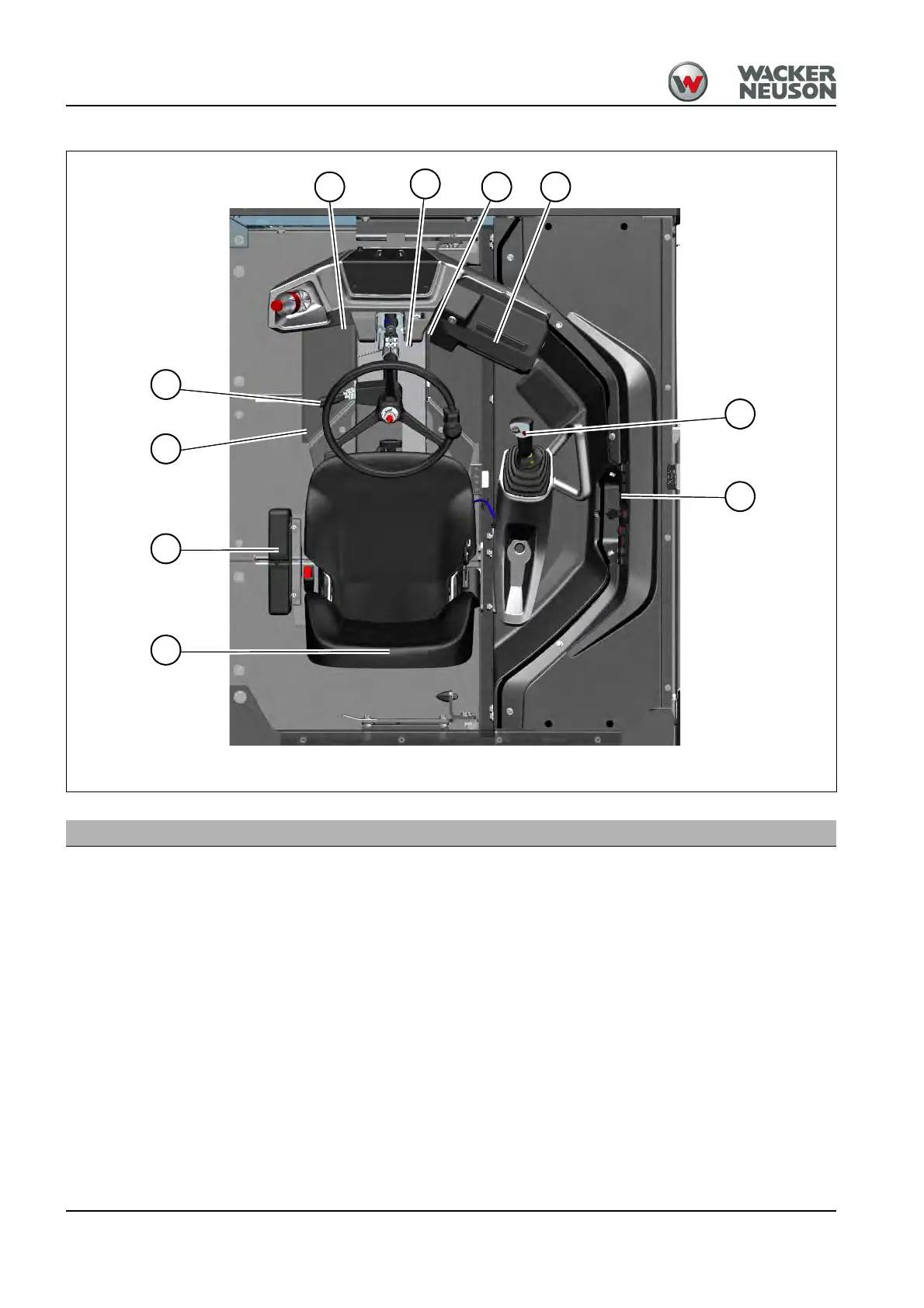

Fig. 84 Overview of control elements
8
10
7
1
3
9
4
2
5
6
Designation See page
1 Seat with seat belt
4-4
2 Document box
4-19
3 Seat console
4-9
4 Steering-column lever
5-13
5 Service brake
5-3
6 Seat console lever
4-9
7 Accelerator pedal
5-2
8 Display
4-24
9Joystick
4-22
10 Switch panel
4-22
