Putting into operation 4

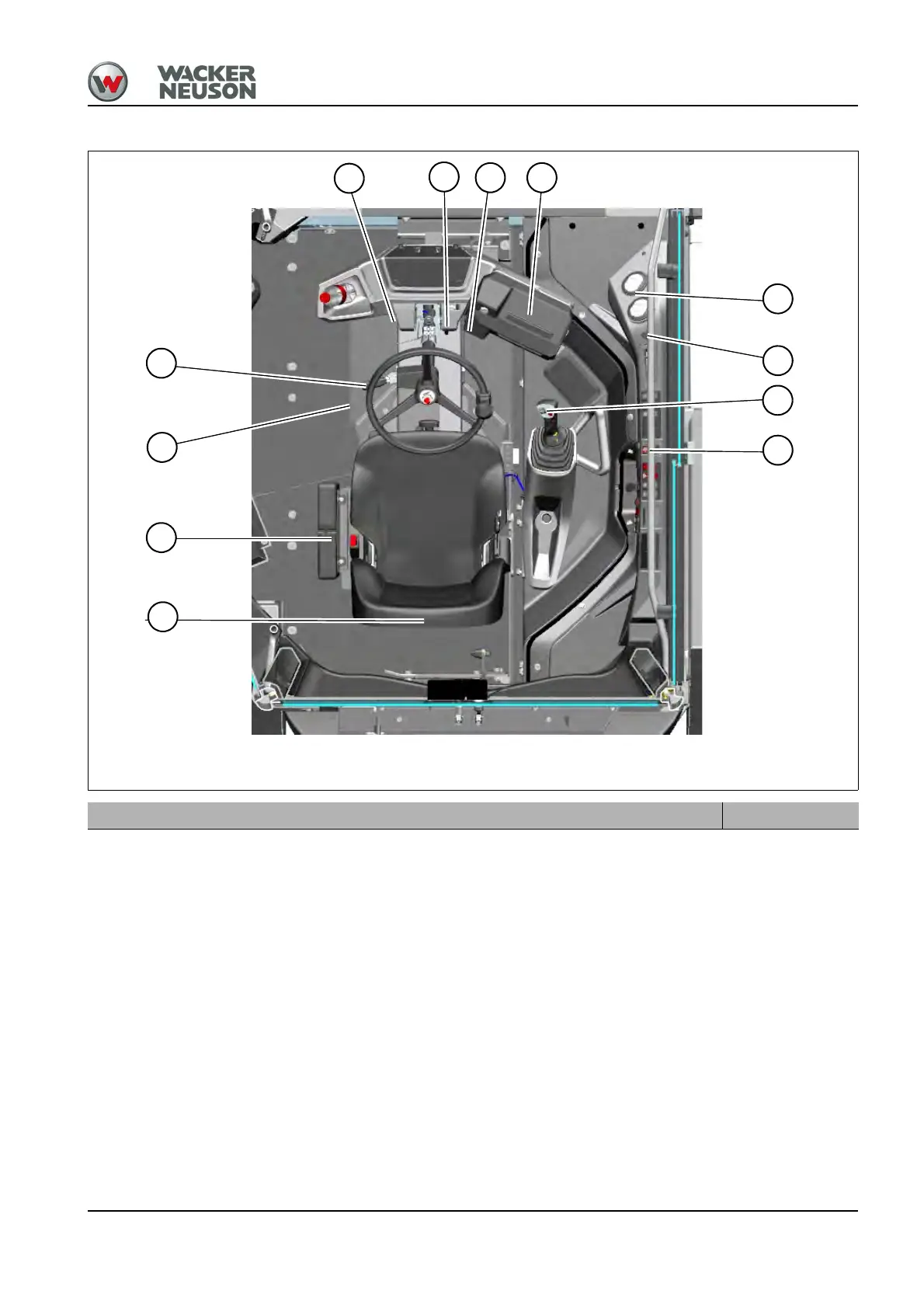

Cabin (option)
1
5
6
3
4
12
2
7 8
9
11
10
Designation See page
1 Seat with seat belt
4-4
2 Document box
4-19
3 Seat console
4-9
4 Steering-column lever
5-13
5 Service brake
5-3
6 Seat console lever
4-9
7 Accelerator pedal
5-2
8 Display
4-24
9 Joystick
4-22
10 12 V connection
4-19
11 Switch panel
4-22
12 Ventilation
5-18
