Maintenance 7
Lubrication plan
Lubricate the specified lubrication points once a day. Before starting
maintenance, lower the red maintenance prop when the skip is raised and
secure the skip with it.

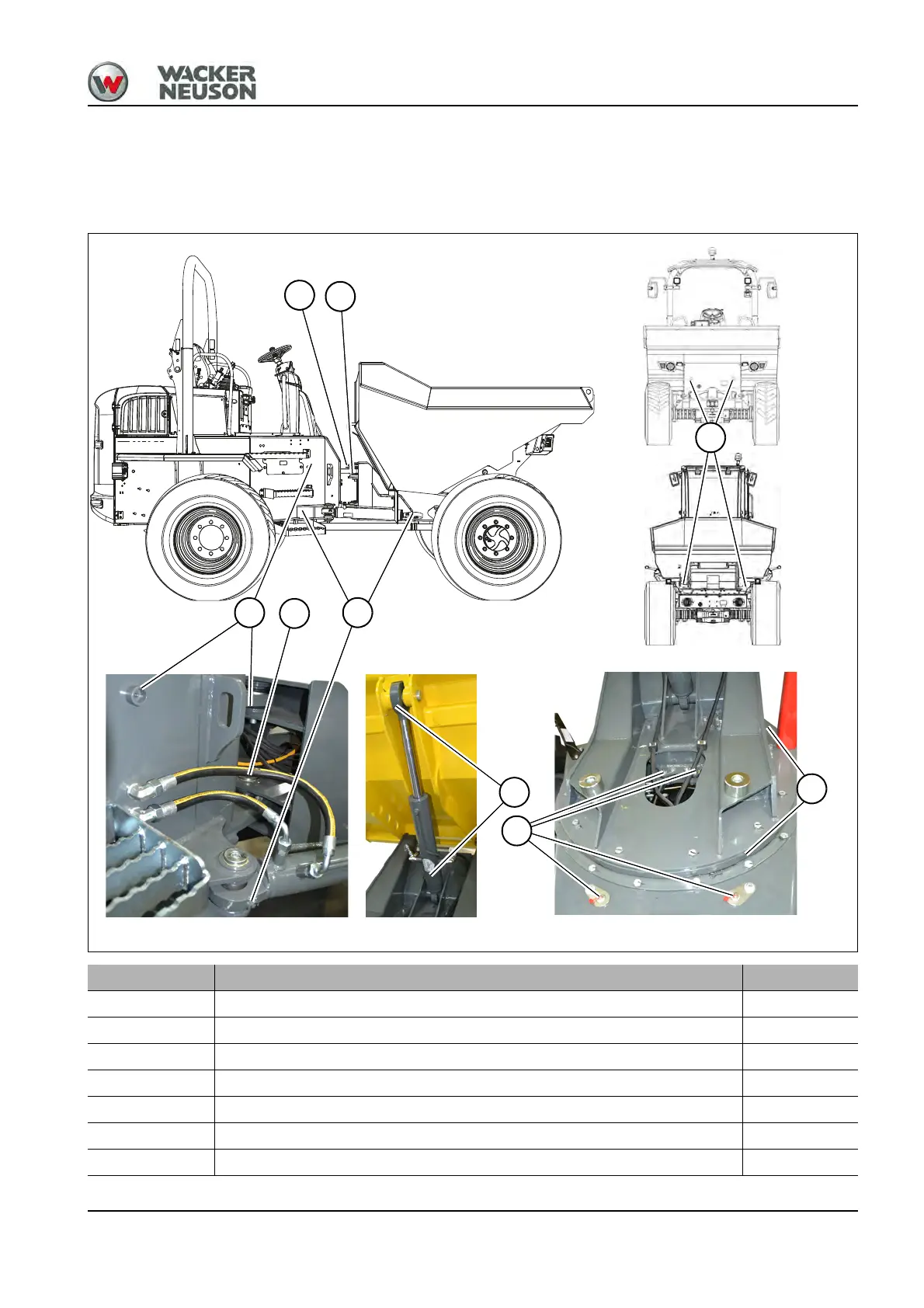

Fig. 172
1
2
4
2
1
3
6
7
5
Position Lubrication point Quantity
1 Articulated joint on left and right 2
2
Articulated joint (left side of joint, right side of machine) 2
3
Front and rear of steering cylinder 2
4
Top and bottom of steering cylinder 2
5
At front of skip 2
6
Swiveling cylinder
1
4
7
Live ring
1
4
1. Option for swivel skip
